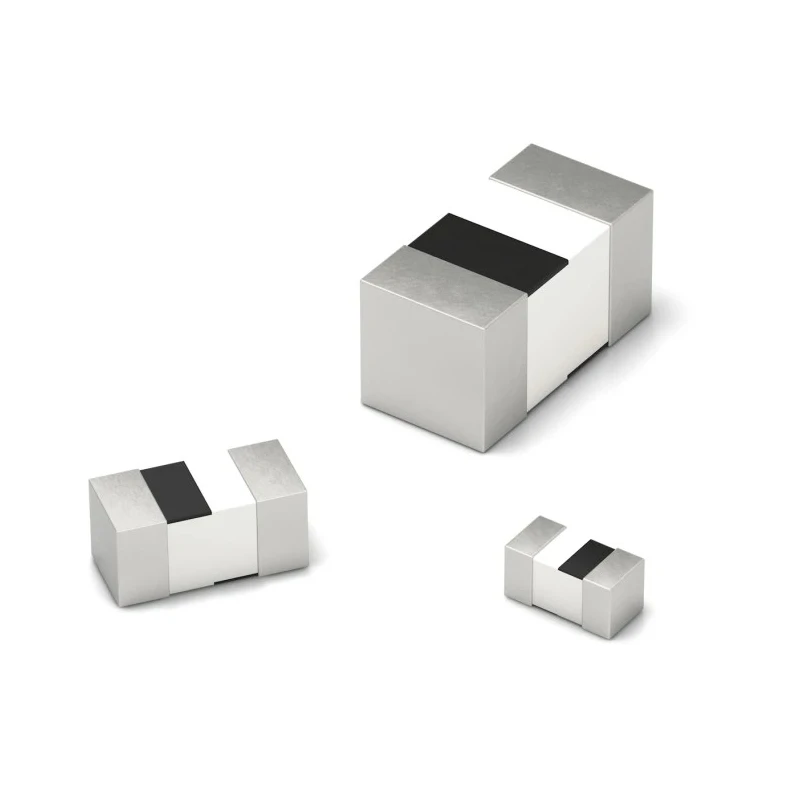

Wurth Elektronik WE-MK Unshielded Multilayer Surface Mount Inductor with Ceramic Core 330 nH 5% Tolerance 300 mA 7447860233

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-MK Unshielded Multilayer Surface Mount Inductor with Ceramic Core 330 nH 5% Tolerance 300 mA 7447860233

Name: Wurth Elektronik WE-MK Unshielded Multilayer Surface Mount Inductor with Ceramic Core 330 nH 5% Tolerance 300 mA 7447860233
Brand: Wurth Elektronik
SKU: 403447
Price: 0.08 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Operating Temperature	- 55°C to +125°C
Height	0.8mm
Length	1.6mm
Depth	0.8mm
Packaging	Tape & Reel
Series	WE-MK
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ceramic
Inductance	330nH
Standards/Approvals	IEC 61249-2-21, JEDEC JS709B, REACH, RoHS
Maximum DC Current	300mA
Maximum DC Resistance	2100mΩ
Inductance Tolerance	5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	350MHz
Minimum Quality Factor	8
Inductor Construction	Multilayer
Automotive Standard	AEC-Q200

Key Features

Constructed with a ceramic core and multilayer design for stability and performance.
Maximum DC current rating of 300 mA ensures reliable operation.
Inductance stable over operating temperature range from -55°C to 125°C.
Maximum DC resistance of 2100 mΩ minimizing power loss.
High self-resonant frequency of 350 MHz suitable for RF circuits.
Compliant with automotive standard AEC-Q200 and environmental standards IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS.
Termination style designed for surface mount soldering in automated assembly.

Product Description

Wurth Elektronik 7447860233 WE-MK unshielded multilayer surface mount inductor features a ceramic core and multilayer construction, providing a stable 330 nH inductance with a tolerance of ±5%. It is designed for high-frequency electronic circuits, including wireless communication applications such as Bluetooth and WLAN. The inductor operates efficiently within a temperature range of -55°C to +125°C, making it suitable for automotive and industrial uses.

This compact surface mount inductor measures 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, facilitating use in space-constrained PCB layouts. It supports a maximum DC current rating of 300 mA and has a low maximum DC resistance of 2100 mΩ, ensuring minimal power dissipation and heat generation.

The component exhibits high-quality factors starting from 8 and boasts a maximum self-resonant frequency of 350 MHz, which makes it ideal for RF and high-speed digital applications. The WE-MK series complies with automotive standard AEC-Q200 and meets key environmental standards including RoHS, REACH, IEC 61249-2-21, and JEDEC JS709B to support reliable, eco-friendly manufacturing.

Its surface mount termination style supports automated assembly processes, enhancing production efficiency in electronics manufacturing lines. Ceramic core integrated within a multilayer construction ensures inductance stability and durability.

High self-resonant frequency and low DC resistance optimize performance in RF circuits. Conforms to automotive and international compliance standards for quality assurance. Compact dimensions enable use in densely packed PCB designs.

Recommended for industrial, automotive, and high-frequency electronic applications. Package supplied on tape and reel to support high-volume assembly. Designed for surface mount technology enabling automatic placement and soldering.

Stable inductance over a wide temperature range for dependable operation. Explore EnvMart's extensive catalog of electronic components and Surface Mount Inductors for reliable industrial and commercial solutions.
