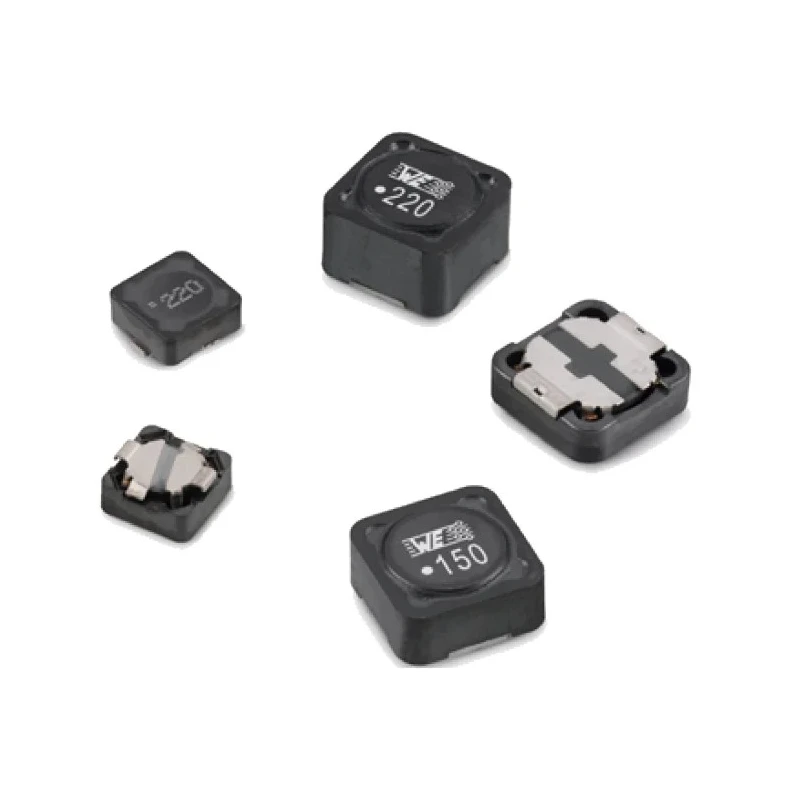

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor with Manganese Zinc Core 10μH 20% 5.8A Idc 7447706100

Wurth Elektronik 7447706100 is a WE-PD SMT Shielded Wirewound Surface Mount Inductor designed for advanced electronic applications requiring robust inductance and high current handling capability. Featuring a manganese zinc core, this inductor delivers a nominal inductance of 10μH with a 20% tolerance, suitable for use in switch mode power supplies ranging from 0.1 W up to 300 W, and integrated DC/DC converters.

This inductor is constructed using wirewound technology with surface mount termination, providing excellent mechanical stability and electrical performance. The product supports a maximum DC current of 5.8 A and exhibits a low maximum DC resistance of 20mΩ, ensuring efficient operation with minimal power losses.

Operating across a wide temperature span from -40°C to 150°C, the inductor meets automotive standard AEC-Q200, underscoring its reliability in demanding environments. It also complies with JEDEC JS709B, REACH, and RoHS standards, making it suitable for environmentally conscious manufacturing processes.

Features a manganese zinc core for superior magnetic properties and shielding to reduce electromagnetic interference. Compact physical dimensions: 12mm length, 6mm height, and 8mm diameter facilitate integration in space-constrained designs.

Maximum self-resonant frequency of 17.6 MHz supports high-frequency switching applications up to 10 MHz. Packaging in tape and reel format enables seamless automated PCB assembly. Ideal for use in industrial, automotive, telecommunications, and power electronics sectors requiring high reliability and performance.

This product is manufactured in China and supplied in new condition, guaranteeing the highest quality standards. Explore more from Wurth Elektronik’s extensive range of SMT inductors and components on EnvMart for your next project.
