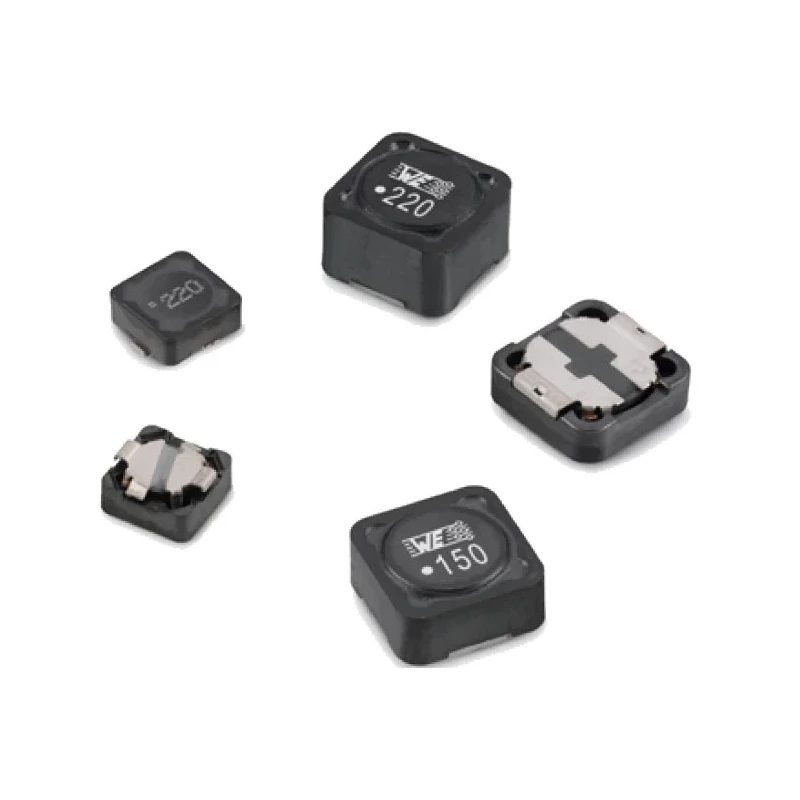

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 1000μH 20% Tolerance 600mA 12mm x 8mm x 6mm 7447706102

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 1000μH 20% Tolerance 600mA 12mm x 8mm x 6mm 7447706102

Name: Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 1000μH 20% Tolerance 600mA 12mm x 8mm x 6mm 7447706102
Brand: Wurth Elektronik
SKU: 403422
Price: 1.76 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Diameter	8mm
Brand	Wurth Elektronik
Height	6mm
Length	12mm
Depth	12mm
Packaging	Tape & Reel
Series	WE-PD SMT
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Core Material	Manganese Zinc
Inductance	1000μH
Standards/Approvals	REACH, RoHS, JEDEC JS709B
Maximum DC Current	600mA
Maximum DC Resistance	1.25Ω
Inductance Tolerance	20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1.45MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

This inductor features a wirewound construction with a manganese zinc core for superior magnetic performance.
It provides inductance tolerance of 20% ensuring stable operation under variable conditions.
The product supports a maximum operating temperature of 150°C and a minimum of -40°C.
Designed with AEC-Q200 automotive standard certification, suitable for demanding automotive applications.
Its physical dimensions include 12mm length, 8mm diameter, and 6mm height ideal for surface mount technology.
The device offers ultra-low DC resistance (1.25Ω max) enhancing energy efficiency.
Packaging is tape and reel, facilitating automated assembly processes.

Product Description

Wurth Elektronik 7447706102 is a WM-PD SMT shielded wirewound surface mount inductor with a manganese zinc core, providing 1000μH inductance and a 20% tolerance. It is engineered for use in switch mode power supplies ranging from 0.1 W up to 300 W and integrated DC/DC converters. This inductor offers a maximum DC current rating of 600mA, suitable for demanding electronic components in industrial and automotive environments.

The component operates reliably within a temperature range from -40°C to +150°C, aligning with the automotive AEC-Q200 qualification standards. The shielded design minimizes electromagnetic interference, making it optimal for noise-sensitive applications.

Physical dimensions are compact with a length of 12mm, diameter of 8mm, and a height of 6mm, conforming to surface mount technology requirements. The maximum DC resistance is notably low at 1.25Ω, contributing to energy savings and reduced heat generation.

Manufactured in China, this inductor complies with international standards including REACH, RoHS, and JEDEC JS709B, assuring environmental compliance and quality. The packaging is tape and reel, supporting efficient placement in automated manufacturing processes.

Wirewound surface mount construction with manganese zinc core. Inductance: 1000μH with 20% tolerance. Maximum DC current rating of 600mA. Certified to AEC-Q200 automotive standard for durability and reliability. Operating temperature range from -40°C to +150°C.

Low maximum DC resistance of 1.25Ω to improve efficiency. Shielding reduces electromagnetic interference. Compliant with international environmental and quality standards. Compact size suitable for SMT applications.

This surface mount inductor is widely used in industrial electronics, automotive systems, power supply design, HVAC controllers, and manufacturing equipment. Its robust construction and stable electrical characteristics make it a dependable choice for designers and engineers.
