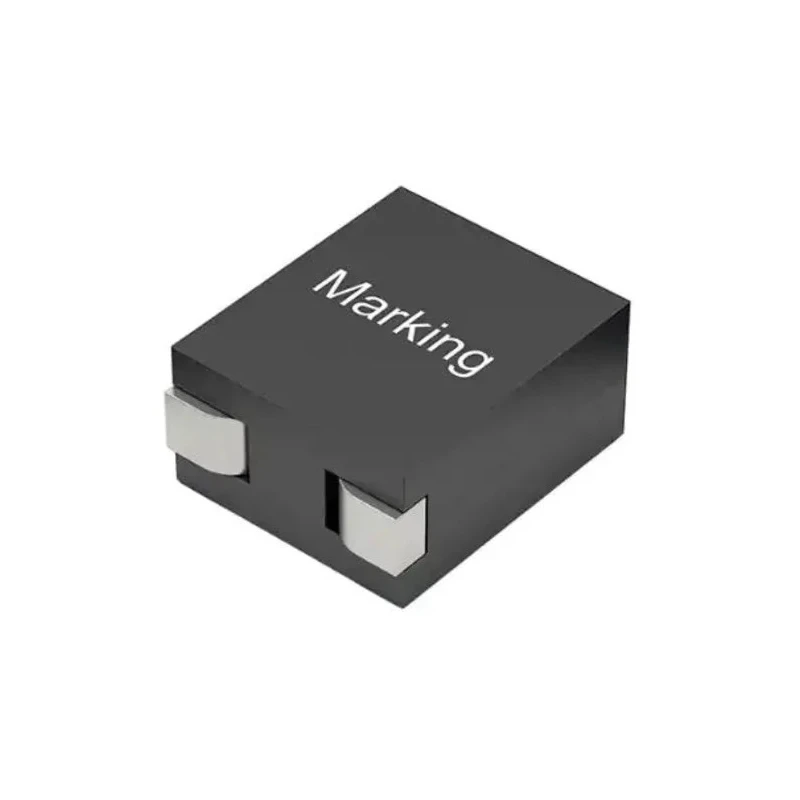

Wurth Elektronik WE-HCM SMT Unshielded Wirewound Surface Mount Inductor 10mm x 12mm x 6mm 0.15μH 37A 74431012015

Wurth Elektronik 74431012015 is a wirewound surface mount inductor part of the WE-HCM SMT series, optimized for high current and high frequency applications. Featuring a manganese zinc ferrite core, this inductor delivers 0.15μH inductance with a rated current capacity of 37A, making it suitable for demanding power electronics in industrial, automotive, and telecommunications fields.

This component is designed for surface mount technology (SMT) with a compact 1012 package size measuring 10mm in length, 12mm in height, and 6mm in depth. Its construction includes moulding and shielding to reduce electromagnetic interference, and it offers a low maximum DC resistance of 0.125 milliohms for minimized power loss.

The inductor operates reliably across a wide temperature range from -40°C to 125°C and meets key industry standards including AEC-Q200 for automotive use, RoHS for environmental compliance, and IEC 62024-2-2020 for electromagnetic compatibility. It is supplied on tape and reel packaging, facilitating automated PCB assembly processes.

Key technical features include a 15% inductance tolerance and a maximum self-resonant frequency of 70 MHz, supporting precise and high-frequency circuit designs. With a 2-pin termination style, this inductor is straightforward to integrate into advanced power delivery and signal filtering circuits.

This product is manufactured in China and is ideal for applications in industrial electronics, automotive systems, communications equipment, and advanced electronic assemblies requiring reliable high current inductors in compact SMT form factors.

Features a manganese zinc ferrite core that ensures robust magnetic properties. Package size is 1012 with dimensions of 10mm length, 12mm height, and 6mm depth. Has an inductance tolerance of 15 percent for precise circuit design.

Rated for a maximum operating temperature of 125 degrees Celsius with a minimum operating temperature of minus 40 degrees Celsius. Surface mount termination style enables easy assembly on PCBs using tape and reel packaging.

Complies with AEC-Q200 automotive standard, RoHS directive, and IEC 62024-2-2020 standards. Maximum DC resistance is a low 0.125 milliohms ensuring efficiency under high current loads. Maximum self-resonant frequency is 70 MHz, suitable for high-frequency designs.

Construction is moulded and shielded to support reliable electromagnetic performance. The inductor includes 2 pins for electrical connections and is made in China. Explore more high quality Surface Mount Inductors and electronic components on EnvMart for your diverse industrial and automotive applications.
