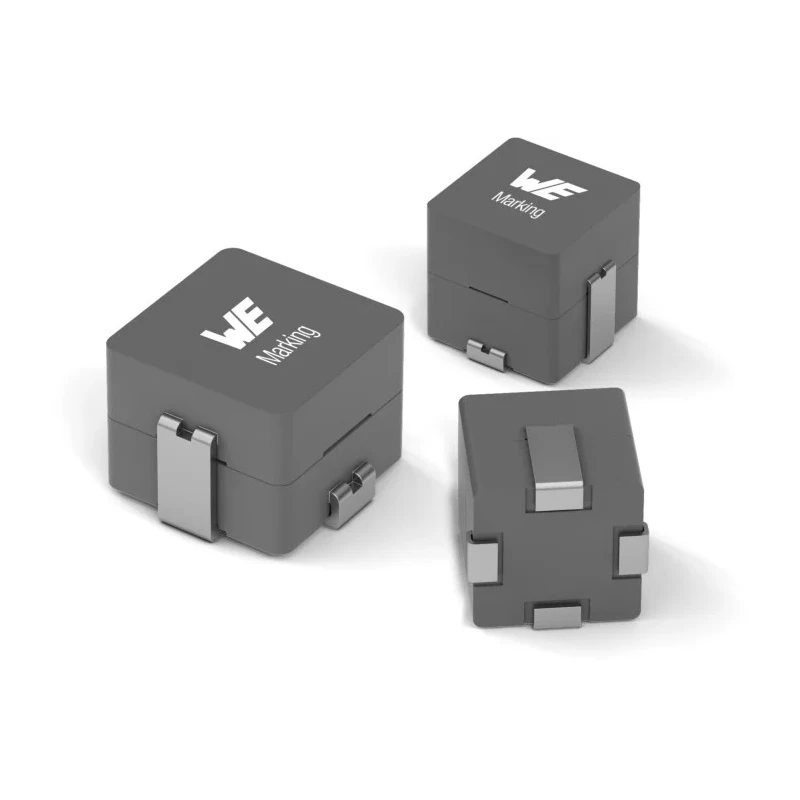

Wurth Elektronik Wirewound Surface Mount Inductor WE-LHMD SMT 1008, 10 μH 15% Tolerance 3.2A 74434301008100

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Wirewound Surface Mount Inductor WE-LHMD SMT 1008, 10 μH 15% Tolerance 3.2A 74434301008100

Name: Wurth Elektronik Wirewound Surface Mount Inductor WE-LHMD SMT 1008, 10 μH 15% Tolerance 3.2A 74434301008100
Brand: Wurth Elektronik
SKU: 403417
Price: 3.23 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	8mm
Length	10mm
Depth	11.2mm
Packaging	Tape & Reel
Series	WE-LHMD SMT
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS, REACH, JEDEC JS709B, IEC 61249-2-21
Package/Case	1008
Maximum DC Current	3.2A
Pin Count	4
Maximum DC Resistance	45mΩ
Inductance Tolerance	15 %
Termination Style	Surface Mount
Inductor Construction	Wirewound

Key Features

This wirewound SMT inductor features a ferrite core for optimal magnetic performance.
Offers an inductance of 10 microhenries with a tolerance of 15% ensuring reliable frequency filtering.
Rated for a maximum DC current of 3.2 amperes to support high-current applications.
Comes in a 1008 package size with surface mount termination for PCB assembly.
The operating temperature ranges from -40°C up to 125°C, suitable for demanding industrial environments.
Has a maximum DC resistance of 45 milliohms to minimize power loss.
Complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards ensuring environmental and performance reliability.
The product is moulded and constructed using wirewound technology for durability.

Product Description

Wurth Elektronik 74434301008100 WE-LHMD SMT 1008 is a wirewound Surface Mount Inductor with a 10 μH inductance and a ferrite core designed for high current electronic applications. This inductor has a 15% inductance tolerance and can handle a maximum DC current of 3.2 A, making it ideal for power electronics and signal filtering in industrial and commercial environments.

The component features a compact 1008 package size with surface mount termination style suitable for automated PCB assembly using tape and reel packaging. Its wirewound construction ensures durability and reliability under thermal and electrical stress, operating comfortably over a wide temperature range from -40°C to 125°C.

This inductor has a low maximum DC resistance of 45 milliohms to minimize power dissipation and improve energy efficiency. It is compliant with important industry standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, confirming its environmental compatibility and quality assurance.

The absence of shielding in this design makes it suitable for applications where minimal magnetic interference is required. Its ferrite core material enhances magnetic properties, providing stable inductance values even with changes in current.

This wirewound SMT inductor is designed for high current applications requiring stable inductance. Compact 1008 footprint allows for space-saving PCB layouts. Wide operating temperature range supports harsh industrial conditions.

Compliance with environmental and safety standards ensures regulatory acceptance. Tape and reel packaging facilitates efficient automated manufacturing.

The 74434301008100 model is a reliable choice for engineers and designers working on power supplies, filters, and electronic circuits requiring precision inductors with high current ratings. Explore more products and detailed technical specifications at EnvMart to find tailored electronics components for your applications.
