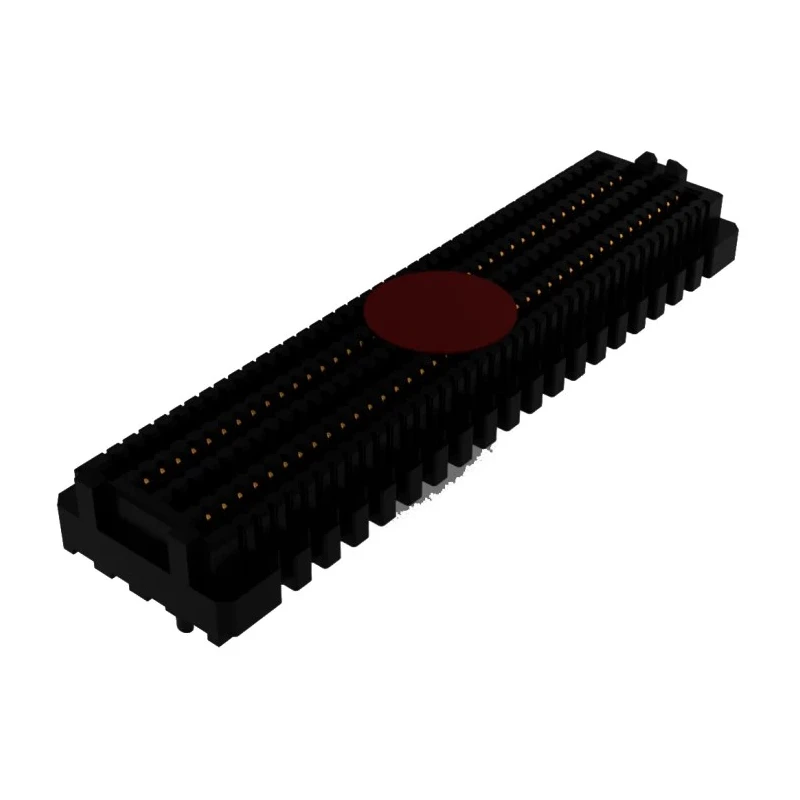

Samtec ASP Series Vertical Surface PCB Socket, 160-Contact, 4 Row, 1.27 mm Pitch, 2.7A, 339V, Male Contact ASP-134604-04
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 339V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.7A |
| Model | ASP-134604-04 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | ASP |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Array |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 160 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
| Stacking Height | 10mm |
Key Features
- Features liquid crystal polymer housing for durability.
- Gold-plated copper alloy male contacts ensure reliable conductivity.
- Supports up to 2.7A current and 339V voltage.
- Operates in temperature range from -55°C to 125°C.
- Stacking height of 10 mm for compact design.
- Surface mount termination type suitable for precise soldering.
- RoHS compliant for environmental safety.
- Ideal for industrial and electronic component applications.
Product Description
Samtec ASP-134604-04 is a high-quality vertical surface PCB socket featuring 160 contacts arranged in 4 rows with a 1.27 mm pitch. This socket belongs to the ASP series and offers excellent electrical and mechanical properties for advanced electronic assembly and PCB connection.
The housing is made of durable liquid crystal polymer material, providing excellent mechanical strength and reliability under operating conditions. The male contacts are manufactured from copper alloy and plated with gold, ensuring optimal conductivity and corrosion resistance.
This PCB socket supports a rated current of 2.7 amperes and voltage of 339 volts, making it suitable for various power connector applications. It features a surface mount termination style that allows precise soldering to PCBs for reliable connections.
The socket operates reliably across a broad temperature range from -55°C up to 125°C. Its compact stacking height of 10 mm helps in space-constrained electronic design environments. Additionally, it complies with RoHS standards, meeting environmental and safety regulations.
Commonly used in electronic industrial applications, power connectors, and board-to-board connector systems, this Samtec ASP series socket is designed for robustness and performance. The product is ideal for manufacturing, industrial electronics, and other technical contexts requiring durable and precise PCB interconnection solutions.
Features liquid crystal polymer housing for durability. Gold-plated copper alloy male contacts ensure reliable conductivity. Supports up to 2.7A current and 339V voltage. Operates in temperature range from -55°C to 125°C.
Stacking height of 10 mm for compact design. Surface mount termination type suitable for precise soldering. RoHS compliant for environmental safety. Ideal for industrial and electronic component applications. Explore a wide range of PCB Sockets and electronic connectivity solutions on EnvMart for all your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current of 2.7A and a voltage rating of 339V.
The ASP-134604-04 features a pitch of 1.27 mm and has a total of 160 contacts arranged in 4 rows.
The housing is made from liquid crystal polymer, while the male contacts are constructed from copper alloy and plated with gold for conductivity.
The stacking height of this PCB socket is 10 mm, making it suitable for compact designs.
It operates reliably within a temperature range of -55°C to 125°C.
This model features a surface mount termination type, which allows for precise soldering to PCBs.
Yes, the ASP-134604-04 is RoHS compliant, meeting environmental safety regulations.
The orientation of this socket is vertical, designed for vertical surface mounting.
This socket is part of a board-to-board connector system, suitable for various electronic applications.
The country of origin for this PCB socket is India.
It is ideal for industrial and electronic component applications, particularly in advanced electronic assembly and PCB connections.
The contact gender of this socket is male, designed for reliable connections with compatible female connectors.
