Samtec ESW Series Straight Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch 5.2A 515V ESW-108-23-G-D

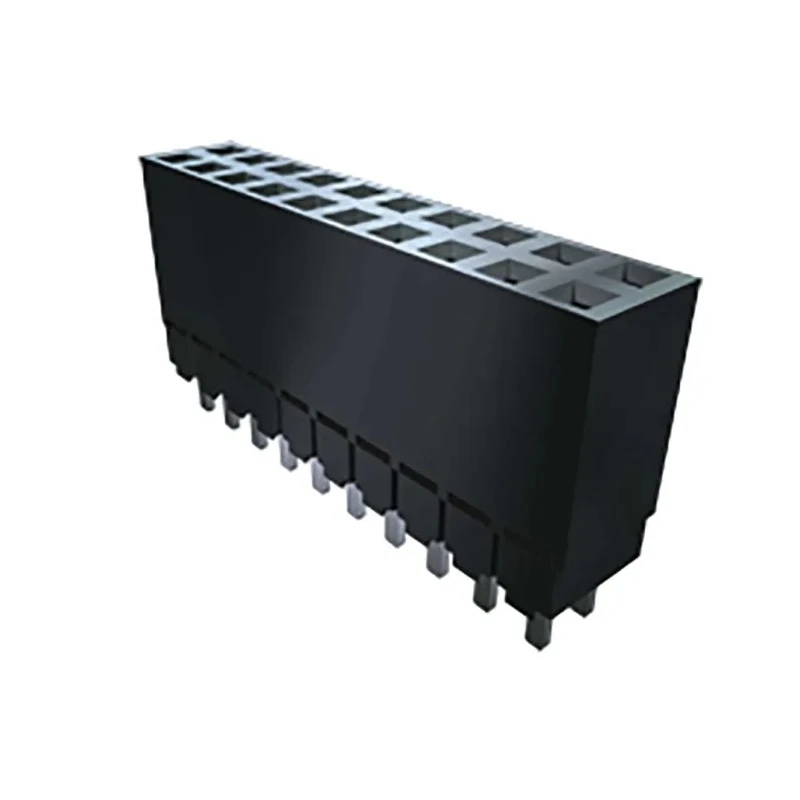

The Samtec ESW-108-23-G-D is a high-quality ESW series straight through hole PCB socket designed for reliable board-to-board connections. It features 16 phosphor bronze contacts arranged into 2 rows with a 2.54 mm pitch, allowing precise alignment and consistent electrical contact.

The contacts are plated with gold and terminated via solder tails to ensure secure mechanical and electrical connection. Its housing is constructed from black glass filled polyester, delivering robust insulation and long service life even under industrial conditions.

This PCB socket supports a steady current rating of 5.2A per contact and a voltage rating of 515V, making it suitable for moderate power electronic circuits and assemblies. It operates efficiently in a wide temperature range from -55°C up to 125°C, suitable for harsh environments.

The socket's through-hole mount type and straight orientation optimize its installation and integration on printed circuit boards. The normal insertion force of 125 grams (4.4 newtons) offers a balance between ease of connector mating and contact reliability without damaging contacts.

Applications for the Samtec ESW-108-23-G-D include electronic component assemblies, industrial electronics, communication devices, and other applications requiring durable and precise PCB interconnection solutions. It is compliant with basic quality standards and is an ideal choice for designers seeking performance and reliability.

The socket accommodates 16 gold-plated phosphor bronze contacts, enhancing electrical conductivity. Robust black glass filled polyester housing resists thermal and mechanical stress. Designed for board-to-board connection systems in electronics manufacturing.

Operating voltage up to 515V and current up to 5.2A per contact support diverse electronic loads. Wide operational temperature range from -55°C to 125°C. Through-hole mounting ensures firm PCB attachment and mechanical stability.

Standard 2.54 mm pitch and two-row configuration fit common PCB layouts. Explore the extensive range of PCB connectors and sockets in the Electronics & Electricals category at EnvMart for high-quality industrial and commercial electronic components.
