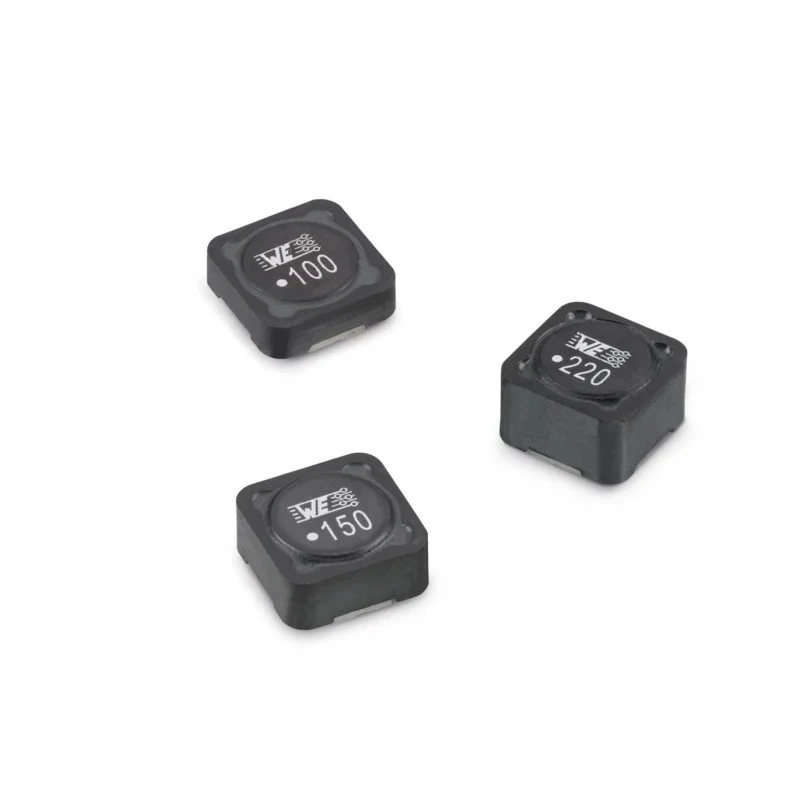

Wurth Elektronik Shielded Wirewound Surface Mount Inductor WE-PD 7345, 150 μH ±20%, 780mA, Manganese Zinc Ferrite 7447773151

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Shielded Wirewound Surface Mount Inductor WE-PD 7345, 150 μH ±20%, 780mA, Manganese Zinc Ferrite 7447773151

Name: Wurth Elektronik Shielded Wirewound Surface Mount Inductor WE-PD 7345, 150 μH ±20%, 780mA, Manganese Zinc Ferrite 7447773151
Brand: Wurth Elektronik
SKU: 400298
Price: 1.55 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	4.5mm
Length	7.3mm
Depth	7.4mm
Packaging	Tape & Reel
Series	WE-PD
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Core Material	Manganese Zinc Ferrite
Inductance	150μH
Standards/Approvals	IEC 62024-2-2020, JEDEC JS709B, REACH, RoHS
Package/Case	7345
Maximum DC Current	780mA
Pin Count	2
Maximum DC Resistance	515mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	5.2MHz
Inductor Construction	Shielded
Automotive Standard	AEC-Q200

Key Features

Core material is high quality manganese zinc ferrite for optimal efficiency.
Features a shielded construction to reduce electromagnetic interference.
Suitable for switching frequencies up to 10MHz and automotive standard AEC-Q200 compliance.
Maximum DC resistance is 515mΩ ensuring low losses in applications.
Operating temperature range from -40°C up to 150°C for robust performance.
Package type 7345 with surface mount termination style for easy PCB integration.
Available in tape and reel packaging ideal for automated assembly.
Maximum self-resonant frequency of 5.2MHz supports high frequency switching power supplies.

Product Description

Wurth Elektronik 7447773151 WE-PD series shielded wirewound surface mount inductor with manganese zinc ferrite core delivers 150 μH inductance with ±20% tolerance and supports maximum DC current of 780mA. This inductor is designed with an ultra-low DC resistance of 515mΩ and a maximum self-resonant frequency of 5.2MHz, making it highly suitable for high efficiency switching power supplies and integrated DC-DC converters.

The robust shielded construction minimizes electromagnetic interference, ensuring reliability in sensitive electronics applications. Certified to automotive standard AEC-Q200, it operates reliably over a wide temperature range from -40°C to 150°C, supporting industrial and automotive environments.

The component comes in a compact 7.3mm by 7.4mm by 4.5mm package (case 7345) with surface mount terminations and is supplied on tape and reel for efficient automated PCB assembly. Compliance with international standards such as IEC 62024-2-2020, JEDEC JS709B, REACH, and RoHS guarantees environmental safety and quality manufacturing.

Applications include switch mode power supplies from 0.1W up to 300W, integrated DC-DC converters, and any power electronics requiring high efficiency inductors. Core material is manganese zinc ferrite for high saturation and efficiency.

Shielded wirewound inductor construction reduces noise and interference. Compliant with multiple international standards ensuring quality and environmental compliance. Robust mechanical and thermal design for automotive and industrial applications.
