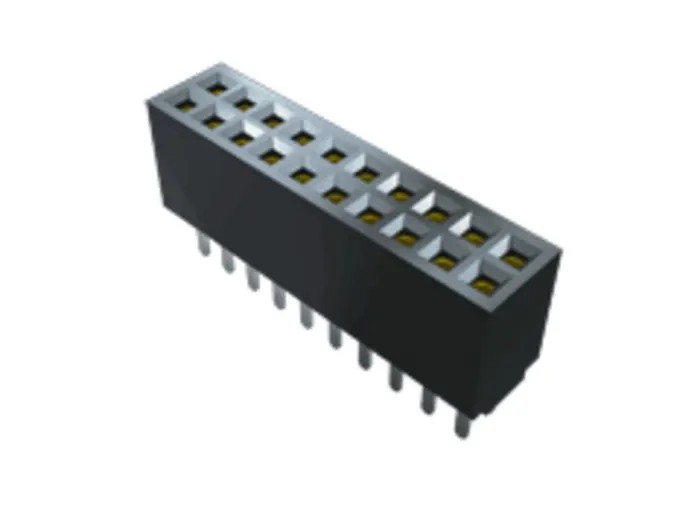

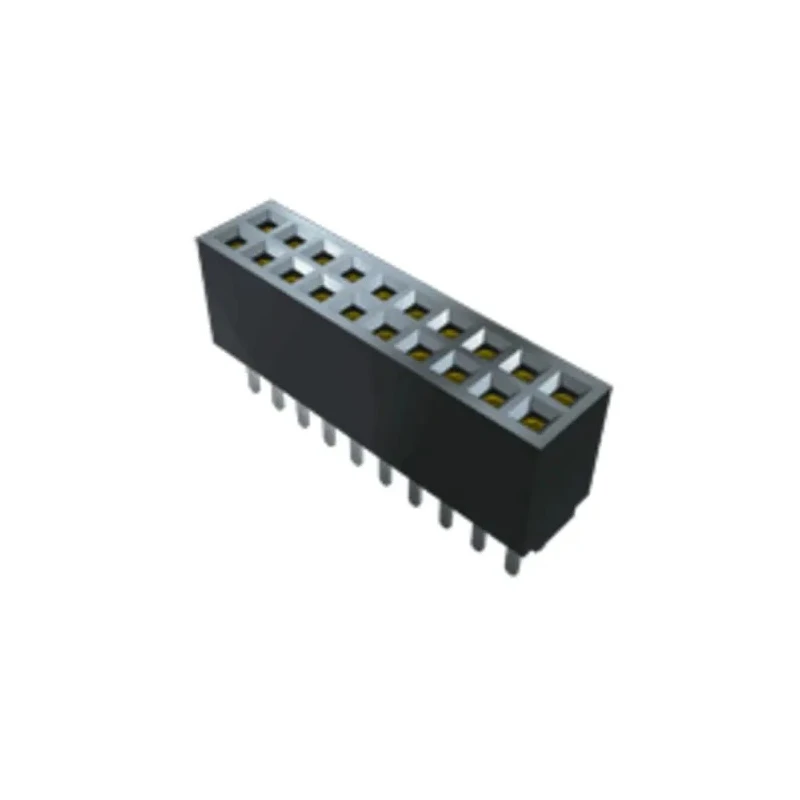

Samtec SFMC Series Straight Surface PCB Socket, 8-Contact, 2 Row, 1.27 mm Pitch, 310 V, 2.9 A, Liquid SFMC-104-01-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 310V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.9A |
| Model | SFMC-104-01-S-D |
| Mount Type | Surface |
| Special Features | Lower cost plating option |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SFMC |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold or Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Eye™ |
Key Features
- The socket features Tiger Eye™ flexible pin contacts for durability.
- Constructed with liquid crystal polymer housing for thermal stability.
- Supports a maximum current of 2.9 amperes and 310 volts.
- Gold or tin plating over nickel contact plating ensures reliable electrical connection.
- Designed for surface mount solder termination with straight female contacts.
- Operates reliably from -55°C to 125°C for industrial use.
- The socket is polarized for correct assembly and mechanical stability.
- Suitable for through-hole or surface mount applications with a pitch of 1.27 mm.
Product Description
Samtec SFMC-104-01-S-D is a high-performance straight surface PCB socket from the SFMC series, featuring 8 female contacts arranged in 2 rows with a 1.27 mm pitch. It utilizes Tiger Eye™ contact technology to provide flexible and reliable pin connections, ideal for demanding industrial and electronic applications.
The housing is made of liquid crystal polymer, offering excellent mechanical strength and thermal resistance between -55°C and 125°C. The socket handles up to 2.9 A current at 310 V, making it suitable for medium power board-to-board connectivity. Contacts are plated with gold or tin over nickel to ensure corrosion resistance and optimal conductivity.
This socket is designed for surface mount solder termination with a straight orientation, facilitating easy PCB assembly. The polarized 2-row design enhances alignment and mating reliability, minimizing insertion errors and mechanical stress.
Main applications include electronic manufacturing, industrial automation, communication devices, and other PCB interconnect systems requiring robust and reliable connectors. The product complies with industry standards but has no specific certifications listed.
The socket utilizes Tiger Eye™ contact system for high reliability and durability. Liquid crystal polymer housing provides high thermal and mechanical stability. Supports electrical ratings of 2.9 A and 310 V maximum. Contact plating options include gold or tin over nickel for performance and cost balance.
Designed for surface mount soldering with straight female contact gender. Operational temperature range from -55°C to 125°C suits harsh environments. The 1.27 mm pitch and 2-row form factor enable compact, high-density PCB layouts.
Ideal for industrial, laboratory, manufacturing, and electronic assembly use cases. Explore more PCB Connectivity solutions on EnvMart to find compatible connectors, sockets, and accessories to complete your electronic projects with trusted quality.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket supports a maximum current of 2.9 amperes.
The voltage rating for the SFMC-104-01-S-D is 310 volts.
This model features a pitch size of 1.27 mm.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made of liquid crystal polymer, while the contacts are made of bronze.
This socket has a total of 8 female contacts arranged in 2 rows.
It is designed for surface mount solder termination.
It features Tiger Eye™ flexible pin contacts for durability and offers a lower cost plating option.
Yes, the socket is polarized to ensure correct assembly and mechanical stability.
It is suitable for electronic manufacturing, industrial automation, communication devices, and other PCB interconnect systems.
The contacts in the SFMC-104-01-S-D are oriented straight.
The socket is manufactured in India.
