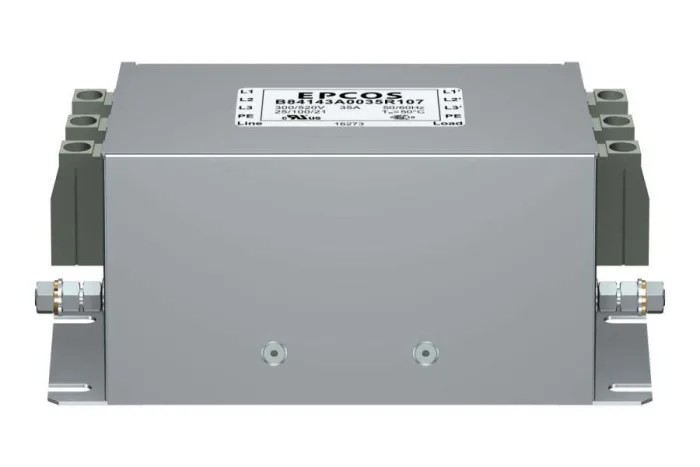

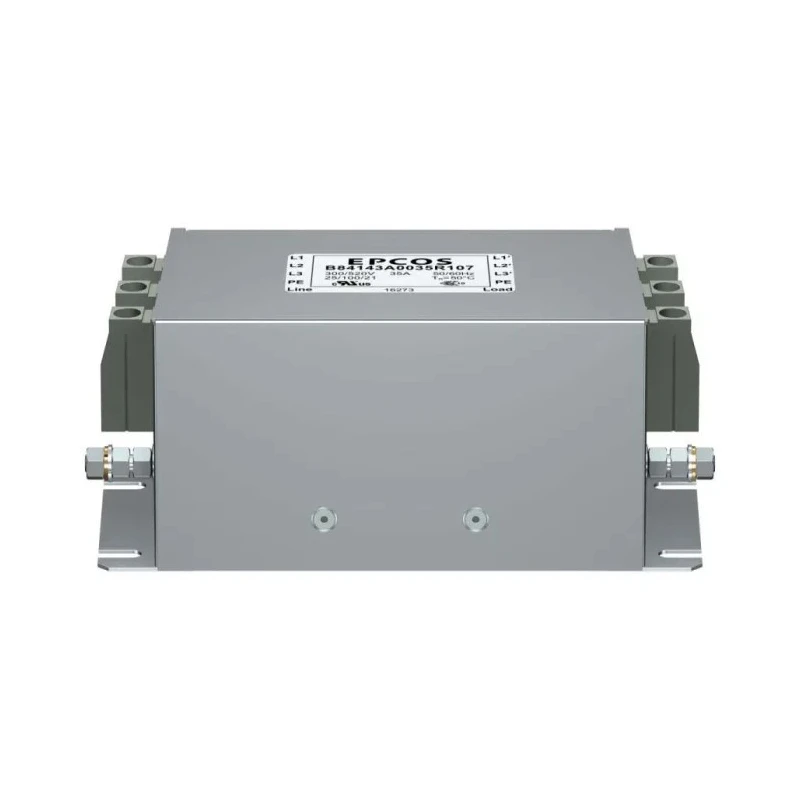

TDK 35 A 520 V ac 50 Hz, 60 Hz Panel Mount 3 Phase Screw Termination EMC Filter B84143A0035R107
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 71mm |
| Length | 168mm |
| Model | B84143A0035R107 |
| Depth | 72.5mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84143A*R107 |
| Maximum Operating Temperature | 100°C |
| Resistance | 1.7mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 35A |
| Number of Phases | 3 |
| Leakage Current | 3.4mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL1283 |
| Termination Style | Screw |
Key Features
- Designed for panel mounting with screw termination style.
- Compact size with dimensions 168 mm length, 71 mm height, and 72.5 mm depth.
- Operates within temperature range -25°C to 100°C safely.
- Low leakage current of 3.4 mA ensuring minimal electrical losses.
- Resistance value of 1.7 milliohms provides efficient filtering performance.
- Meets UL1283 standard and has international approvals including ENEC and cUL.
- Degree of protection on front side with power plug is IP 40 rating.
Product Description
TDK B84143A0035R107 is a high-performance 3 phase panel mount EMC filter engineered to operate at 35 A maximum current and 520 V ac voltage across 50 Hz and 60 Hz frequencies. Its screw termination style ensures easy installation and secure connection in power line filtering applications.
The filter features a compact design with dimensional measurements of 168 mm in length, 71 mm in height, and 72.5 mm in depth, suitable for industrial and commercial electrical panels. It operates reliably within a temperature range of -25°C up to 100°C, supporting various environmental conditions.
This EMC filter exhibits a minimal leakage current of 3.4 mA and a low resistance of 1.7 milliohms, maximizing efficiency and performance. It complies with UL1283 standard, along with ENEC and cUL certifications, ensuring quality and safety compliance for electromagnetic interference mitigation.
The front side power plug is protected with an IP 40 degree of protection, making this filter durable against solid objects greater than 1 mm. This filter is especially suitable for industrial electrical setups requiring effective EMI suppression in three-phase power lines.
Panel mount type with screw terminals for stable installation. Compact and cost-optimized construction for ease of use. Supports high current applications up to 35 amperes. Approved to international safety standards including UL, ENEC, and cUL.
Operates efficiently over a broad temperature range for robust performance. Ideal for industrial, manufacturing, and power distribution systems. Made in Hungary, reflecting quality manufacturing standards.
This TDK EMC filter fits within EnvMart’s specialized category for EMC Filters & Protection under Electronics Components, suitable for professionals seeking reliable power line filtering solutions. Explore the EnvMart catalog for complementary industrial electrical components and filters.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 35 A.
This model has dimensions of 168 mm in length, 71 mm in height, and 72.5 mm in depth.
It operates at a maximum voltage of 520 V ac.
The filter operates safely within a temperature range of -25°C to 100°C.
This model features a screw termination style for secure installation.
The leakage current is 3.4 mA, ensuring minimal electrical losses.
It complies with UL1283 standard and has international approvals including ENEC and cUL.
The resistance value is 1.7 milliohms, providing efficient filtering performance.
The front side power plug has an IP 40 rating, providing protection against solid objects greater than 1 mm.
It is especially suitable for industrial electrical setups requiring effective EMI suppression in three-phase power lines.
This model is manufactured in Hungary, reflecting quality manufacturing standards.
The filter operates at both 50 Hz and 60 Hz frequencies.
