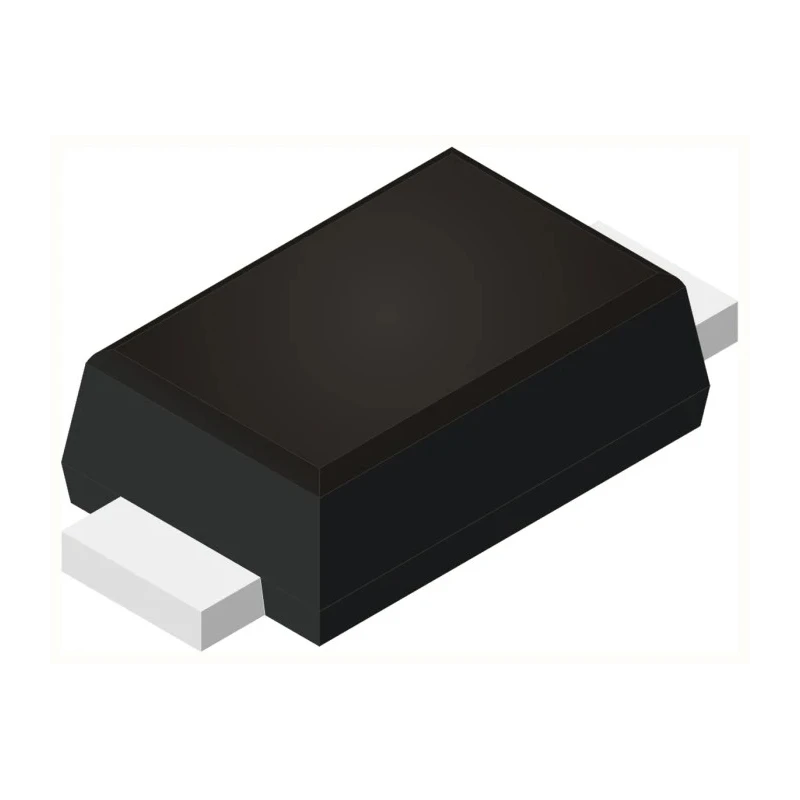

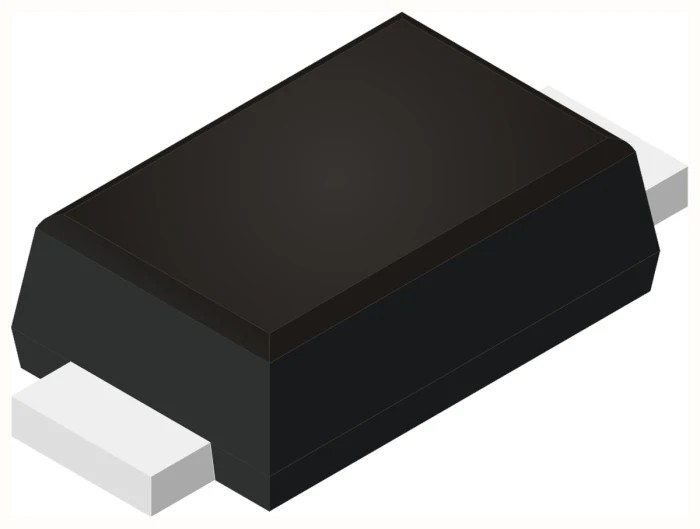

ROHM 30 V 1 A Schottky Diode 2-Pin SOD-123FL Surface Mount RB160MM-30TR

ROHM RB160MM-30TR is a high reliability Schottky diode designed for surface mount applications requiring efficient low voltage rectification. Housed in a compact 2-pin SOD-123FL package, this diode supports a maximum continuous forward current of 1 ampere and peak reverse repetitive voltage of 30 volts, making it suitable for power supply circuits and fast switching operations.

The diode features a low forward voltage drop of 0.48 volts, which minimizes power dissipation and improves overall circuit efficiency in electronic devices. With the ability to handle surge currents up to 30 amperes, it provides protection against transient events. Its maximum operating temperature of 125°C allows for reliable operation under demanding thermal conditions often encountered in automotive, industrial, and consumer electronics.

The small power mold type (PMDU) package contributes to high packing density on printed circuit boards (PCBs), facilitating compact designs. RoHS certification guarantees compliance with environmental directives, assuring safe use in green manufacturing processes.

Key specifications include a 2.7 mm length, 1.7 mm width, and 0.9 mm height package size optimized for surface mount technology (SMT). The diode's single configuration and 2-pin layout simplify design integration for engineers.

This Schottky diode from ROHM is well-suited for applications in power & connectors, semiconductors, and discrete semiconductor devices. Typical use cases span power rectification in industrial equipment, power management in consumer electronics, and signal processing circuits in automotive systems.

This diode supports a maximum continuous forward current of 1 ampere enabling stable current conduction. The peak reverse repetitive voltage rating is 30 volts, suitable for low voltage circuit protection. It features a low maximum forward voltage of 0.48 volts to reduce power loss.

The diode can withstand peak non-repetitive forward surge current up to 30 amperes. The operating temperature range extends up to 125°C for durable performance in varied environments. Compact package dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height allow for space-efficient circuit board mounting.

Designed as a single Schottky diode with 2 pins optimized for surface mount technology. This component is RoHS compliant, ensuring environmentally friendly manufacturing. Explore more ROHM Schottky diodes and semiconductor components at EnvMart for comprehensive electronic solutions.
