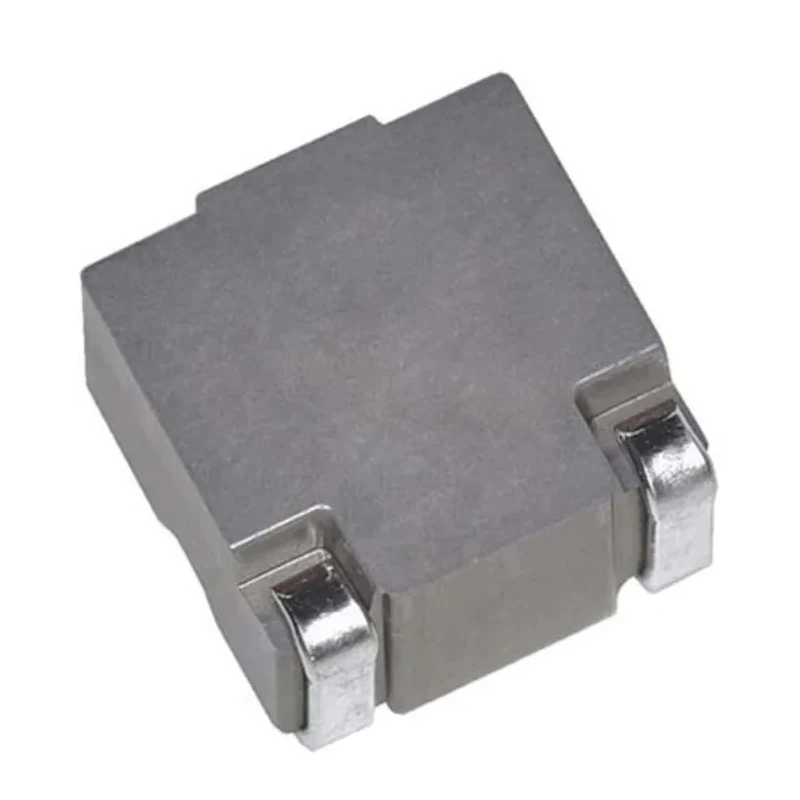

Panasonic Surface Mount Inductor Metal Composite Core 4.7 μH Integral Construction ±20% 24.7 A Idc M1280MF

Panasonic M1280MF surface mount inductor is a precision component designed for high-reliability applications requiring high current handling and thermal stability. This inductor features a metal composite core with integral construction, providing exceptional vibration resistance and temperature tolerance up to 160 °C, including self-heating conditions.

With an inductance of 4.7 μH and a maximum DC current rating of 24.7 A, the M1280MF series ensures stable performance under high bias currents thanks to its ferrous alloy magnetic material. Its low DC resistance of 5.39mΩ minimizes power loss and enhances efficiency.

The solder termination style and compact package (12.6mm length, 13.1mm height, and 8.05mm depth) make it well suited for surface mount PCB assembly, helping save board space. The device meets stringent AEC-Q200 automotive standards, emphasizing its suitability for automotive electronics and other demanding environments.

Additional key features include a ±20% inductance tolerance, excellent temperature stability, and low audible (buzz) noise enabled by the novel metal composite core technology. Its robust design including resistance to high vibration of 30G ensures reliable operation in harsh conditions.

Applications span industrial power electronics, automotive systems, and general surface mount inductor requirements where high current, thermal endurance, and longevity are critical.

Constructed to function reliably up to 160 °C including self-heating. Integral construction enables superior vibration resistance. Makes use of a metal composite core for low eddy-current losses and high efficiency. Certified to AEC-Q200 standards for automotive use.

Compact dimensions for space-efficient PCB design. Explore more high-quality electronic components and Surface Mount Inductors in EnvMart catalog to meet your industrial and automotive electronics needs.
