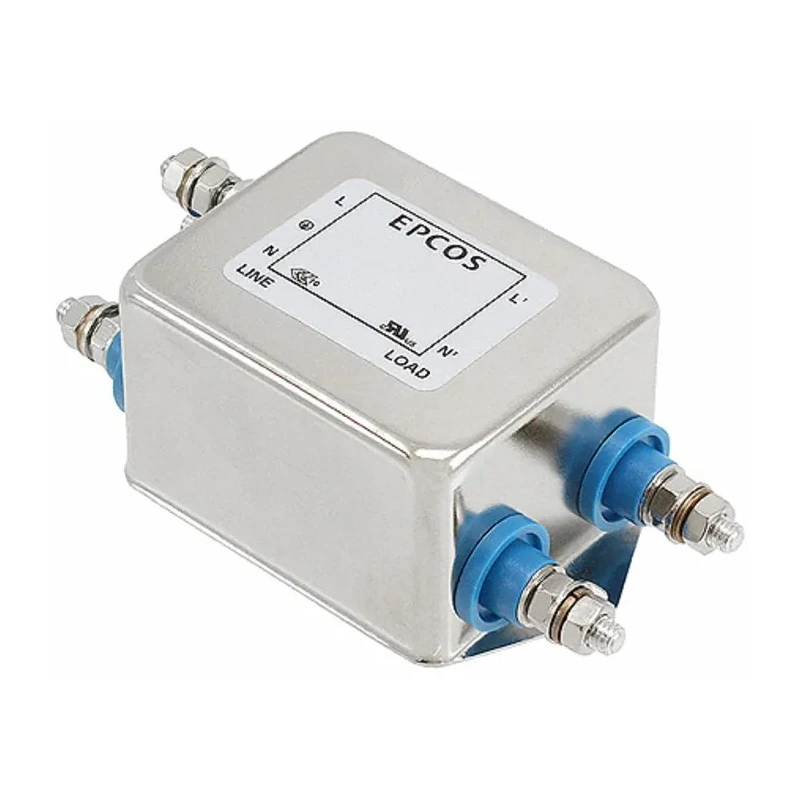

TDK Single Phase Chassis Mount EMC Filter 25 A 250V AC/DC 50Hz 60Hz Screw Termination B84111F0000M125
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 38mm |
| Length | 63mm |
| Model | B84111F0000M125 |
| Depth | 51mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84111F |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 2μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 1 |
| Leakage Current | 0mA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2mH |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
Key Features
- Optimized leakage current for effective EMI suppression.
- Compact design allows easy installation in chassis mount applications.
- Screw termination style ensures secure and reliable connections.
- Operates at standard frequencies of 50 Hz and 60 Hz for versatile usage.
- Designed with polyurethane potting meeting UL 94 V−0 flame retardant standards.
- Equipped with threaded M5 studs for current ratings from 25 A to 36 A.
- Complies with UL 1283 safety standard and carries ENEC10, UL, and cUL approvals.
- Application suited for switched mode power supplies in telecom and data systems.
Product Description
TDK B84111F0000M125 is a single phase chassis mount EMC filter designed to provide effective electromagnetic interference suppression for electronic systems operating up to 25 A and 250 V AC/DC. It supports frequencies of 50 Hz and 60 Hz, ideal for global power applications.
This filter boasts a compact and easy-to-install chassis mount design with screw termination for secure connections. It features a capacitance of 2μF and inductance of 2mH, ensuring optimized leakage current performance and reduced noise in sensitive electronic equipment.
Manufactured with polyurethane potting that complies with UL 94 V−0 flame retardant standards, the filter enhances safety and durability. The threaded M5 studs enable robust mounting for current ratings between 25 A and 36 A.
Approved under standards UL 1283, ENEC10, UL, and cUL, the B84111F model satisfies stringent safety and performance criteria. Its temperature tolerance ranging from -25°C to 100°C ensures reliable operation in demanding industrial and telecommunications environments.
Typical applications include switched mode power supplies for telecom and data systems, where robust EMI filtering is critical to compliance and performance. Optimized leakage current to minimize interference. Compact chassis mount design for space-saving installation.
Screw termination style for stable electrical connections. Suitable for 50 Hz and 60 Hz operation. Polyurethane potting for flame retardancy. Threaded M5 studs for secure mounting. UL 1283 and ENEC10 certified for safety compliance.
Capacitance of 2μF and inductance of 2mH for effective filtering. Operating temperature range from -25°C to 100°C. Ideal for use in switched mode power supplies and telecom systems. Explore our extensive range of EMC filters at EnvMart for comprehensive electromagnetic compatibility solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 25 A.
This model supports a maximum voltage of 250 V AC/DC.
It has a capacitance of 2μF and an inductance of 2mH.
This EMC filter operates at standard frequencies of 50 Hz and 60 Hz.
The operating temperature range is from -25°C to 100°C.
It features a chassis mount design for easy installation.
The filter uses a screw termination style for secure connections.
It complies with UL 1283 safety standards and carries ENEC10, UL, and cUL approvals.
The dimensions of this model are 63mm in length, 51mm in depth, and 38mm in height.
It is suited for use in switched mode power supplies in telecom and data systems.
The leakage current rating for this model is 0mA, indicating optimized performance for EMI suppression.
The country of origin for this EMC filter is China.
