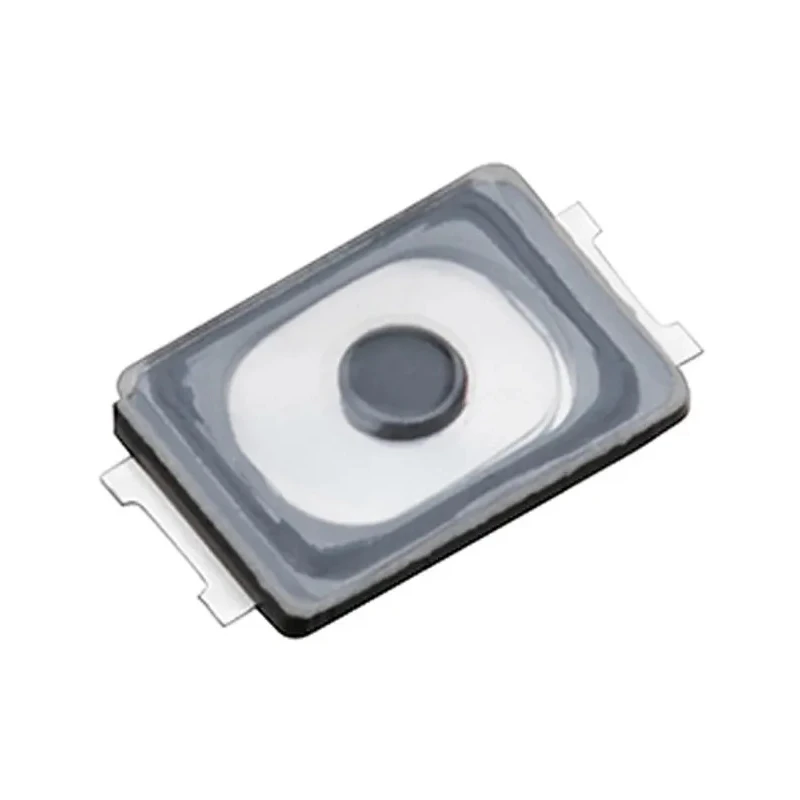

Panasonic Black Surface Mount IP67 Rated Tactile Switch Push Plate SPST 20mA 15 V dc IP67
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 600μm |
| Length | 3mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 2mm |
| Mount Type | Surface |
| Series | EVP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 500000Operations |
Key Features
- The switch features a momentary operation with push plate actuator style.
- It has a compact size with length 3mm and width 2mm, providing an ultra-thin profile.
- The actuator orientation is straight, and the switch does not have illumination.
- This tactile switch is IP67 rated offering dust-tight and water resistance protection.
- Operating temperature ranges from -40°C to 85°C ensuring reliable performance in varied environments.
- Mechanical life expectancy is up to 500000 operations, ensuring durability.
- Operating force required for actuation is 1.6N providing a sharp tactile feedback.
- The switch complies with RoHS standards ensuring environmental safety.
Product Description
Panasonic EVPAWBD4A is a high-reliability surface mount tactile switch featuring IP67 rating for dust and water ingress protection, suitable for industrial, automation, and electronic applications.
This black push plate tactile switch operates momentarily with a SPST contact configuration rated at 20mA and 15 V dc, making it ideal for low current switching requirements. The switch is compact with dimensions 3mm length and 2mm width and an ultra-thin height of 600μm, allowing integration in space-constrained circuit boards and devices.
Its straight actuator orientation and 1.6N operating force provide a distinct, sharp tactile feedback ensuring reliable user interaction.
Designed to operate reliably between -40°C and 85°C with a long mechanical life of 500000 operations, it is well-suited for environments that demand durability and consistent performance.
Manufactured in Japan, the switch complies with RoHS environmental standards and is part of Panasonic's EVP series of SMT light touch switches. The switch has a surface mount terminal type using solder connections for secure PCB attachment.
It is not illuminated, suitable for applications where external indication is not required. Its IP67 rating certifies robust protection against dust and temporary immersion in water. This tactile switch is commonly used in consumer electronics, automotive controls, industrial equipment, and any applications requiring compact, reliable momentary switches.
EnvMart offers this Panasonic EVPAWBD4A Tactile Switch for efficient manufacturing and assembly processes ensuring high performance and quality compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this model is from -40°C to 85°C, ensuring reliable performance in various environments.
This tactile switch has a mechanical life expectancy of up to 500,000 operations, providing durability for long-term use.
The switch features a Single Pole Single Throw (SPST) contact configuration, suitable for low current switching applications.
This model has dimensions of 3mm in length, 2mm in width, and a height of 600μm, making it compact for space-constrained applications.
The operating force required for actuation is 1.6N, providing a distinct tactile feedback upon activation.
The switch is rated IP67, offering protection against dust and temporary immersion in water.
It uses a solder terminal type for secure attachment to printed circuit boards (PCBs).
No, this model is not illuminated, making it suitable for applications where external indication is not required.
The tactile switch complies with RoHS standards, ensuring it meets environmental safety requirements.
This tactile switch is commonly used in consumer electronics, automotive controls, and industrial equipment requiring compact, reliable momentary switches.
The actuator style is a push plate, designed for momentary operation.
This switch is manufactured in Japan, ensuring high standards of production quality.
