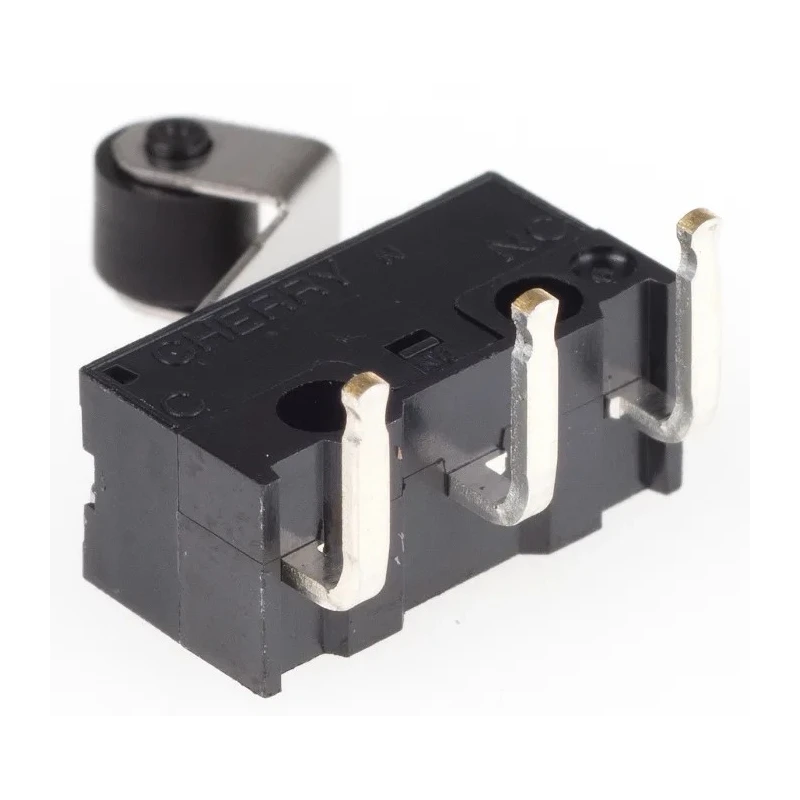

ZF Roller Lever Micro Switch Left Angle PCB Terminal, 3A, 125V AC, SPDT, IP40 DG13-B3RA

ZF DG13-B3RA Roller Lever Micro Switch is a compact subminiature switch designed for industrial and automation applications requiring precise and durable switching functionality. Featuring a left angle PCB terminal configuration and a roller lever actuator, it facilitates reliable mechanical operation within limited space constraints.

The switch houses SPDT silver-plated wiping contacts rated at 3A current and 125V AC voltage, making it suitable for low to moderate electrical load switching in control circuits. The polyphenylene sulphide body is molded from UL94V-0 flame-retardant material, providing robust insulation and environmental protection.

Operating temperature ranges from -25°C to 85°C, accommodating varied industrial environments. With an IP40 ingress protection rating, it is protected against solid objects greater than 1mm but not water, making it apt for indoor applications.

This microswitch boasts a mechanical life of 1,000,000 operations, ensuring dependable performance for extended maintenance intervals. It complies with RoHS environmental standards and is recognized under UL and CSA certifications, affirming its quality and safety.

Typical use cases include electrical equipment control, HVAC systems, industrial automation controls, manufacturing machinery interfaces, and electronic instrumentation. Compact and reliable, it meets the demands of precision micro-switch applications requiring roller lever actuation and PCB mounting.

Durable roller lever actuator for sensitive mechanical actuation. Left angle PCB terminals for efficient printed circuit board integration. High-quality polyphenylene sulphide housing material for electrical insulation and mechanical strength.

SPDT silver-plated contacts rated for 3A at 125V AC load conditions. One million mechanical operation cycles ensuring longevity. IP40 rating protects against entry of tools and small wires. Wide operating temperature range from -25°C to 85°C.

RoHS compliant and certified UL recognized component for safety. Subminiature DG series for compact industrial and automation use. Explore comprehensive ranges of Micro Switches and automation components on EnvMart for reliable and high-quality industrial solutions.
