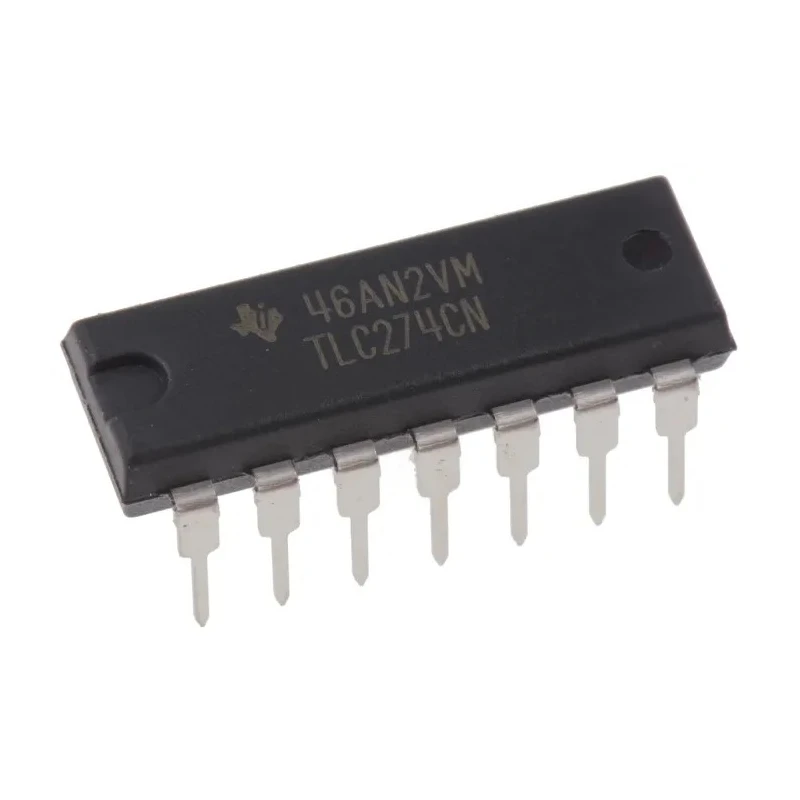

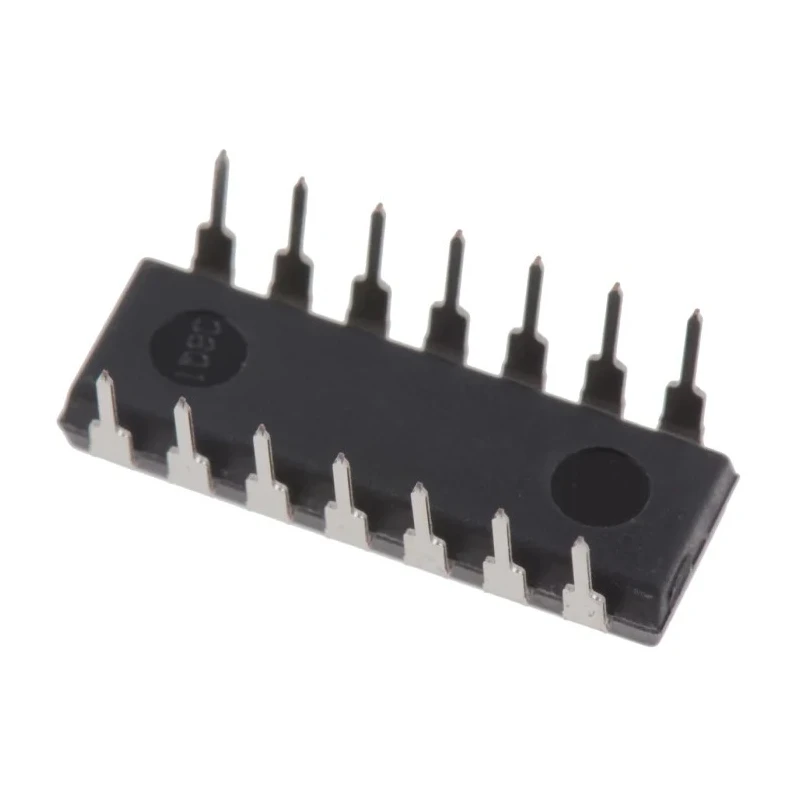

Texas Instruments Operational Amplifier 4-Channel 1.7MHz Gain Bandwidth 16V PDIP 14-Pin TLC274CN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TLC274CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLC274 |
| Output Current | 30mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.7MHz |
| Input Bias Current | 600 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 3.6V/μs |
| Input Offset Current | 300 pA |
Key Features
- Features a gain bandwidth product of 1.7MHz for high-speed amplification.
- Supports supply voltage range from 5V to 16V for flexible power requirements.
- Includes input bias current of 600 picoamperes and input offset voltage of 12 millivolts for precise signal processing.
- Operates within a temperature range of 0°C to 70°C for reliable performance.
- Designed with a slew rate of 3.6V/μs to handle rapid signal changes.
- Package includes a through-hole PDIP format with 14 pins for easy PCB mounting.
- Output current capability is 30mA suitable for a variety of circuit designs.
- Compact dimensions with length 19.3mm, width 6.35mm, and height 4.57mm.
Product Description
The Texas Instruments TLC274CN operational amplifier is a precision four-channel amplifier featuring a gain bandwidth product of 1.7MHz, ideal for high-speed and accurate signal amplification in industrial and laboratory electronics applications.
This device operates within a voltage range of 5V to 16V, accommodating diverse power supply configurations. Its low input bias current of 600 picoamperes and low input offset voltage of 12 millivolts enable precise signal conditioning and amplification with minimal error.
The amplifier supports a maximum operating temperature of 70°C and a minimum of 0°C, ensuring stable performance across a range of operating environments. The 14-pin PDIP through-hole package facilitates simple and reliable mounting on printed circuit boards.
Its slew rate of 3.6V/μs allows the amplifier to accurately follow rapid input changes with minimal distortion. The output current rating of 30mA ensures sufficient drive capability for many common circuit requirements.
The device’s compact physical dimensions (19.3mm length, 6.35mm width, and 4.57mm height) and use of LinCMOS technology make it suitable for applications where space and power efficiency are critical.
Gain bandwidth product of 1.7MHz supports high-frequency amplification. Wide supply voltage range from 5V to 16V enables flexible power options. Low input bias current and offset voltage maximize signal fidelity. Slew rate of 3.6V/μs accommodates fast signal transitions.
Through-hole PDIP 14-pin package offers easy integration on PCBs. Operating temperature from 0°C to 70°C ensures reliability. Output current capability of 30mA supports various load conditions. Precision LinCMOS design balances power and performance.
The Texas Instruments TLC274CN operational amplifier is ideally suited for use in industrial instrumentation, audio electronics, control systems, and laboratory equipment where precision and reliability are paramount.
Explore the Operational Amplifier category at EnvMart for a wide selection of high-performance amplifiers to meet your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TLC274CN operational amplifier is 1.7MHz, making it suitable for high-speed amplification applications.
This operational amplifier supports a supply voltage range from 5V to 16V, allowing for flexible power supply configurations.
The output current capability of this model is 30mA, which is adequate for driving various loads in circuit designs.
The operational amplifier operates within a temperature range of 0°C to 70°C, ensuring reliable performance across different environments.
The dimensions of this operational amplifier are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
This model features four channels, allowing for multiple signal processing tasks simultaneously.
The slew rate of this operational amplifier is 3.6V/μs, which enables it to handle rapid signal changes effectively.
The input bias current for the TLC274CN is 600 picoamperes, contributing to its precision in signal processing.
This operational amplifier has an input offset voltage of 12 millivolts, which helps maintain signal fidelity during amplification.
The TLC274CN is packaged in a 14-pin PDIP format, designed for through-hole mounting on printed circuit boards.
This model utilizes LinCMOS technology, which balances power efficiency and performance in its applications.
This operational amplifier is ideally suited for industrial instrumentation, audio electronics, control systems, and laboratory equipment.
