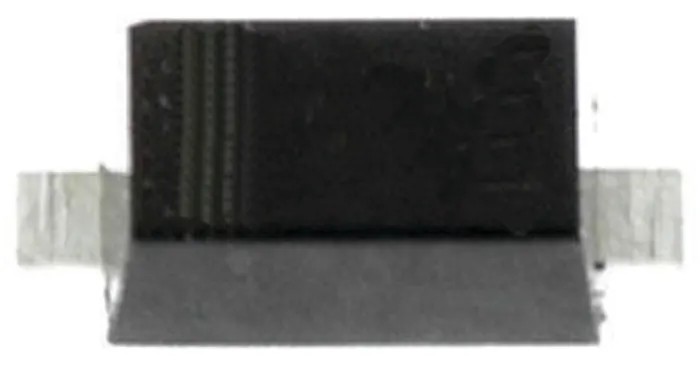

Nexperia 30 V 1 A Schottky Diode 2-Pin SOD-123F PMEG3010CEH,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 2.7mm |
| Model | PMEG3010CEH,115 |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | PMEG3010CEH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123F |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A |
| Maximum Forward Voltage Vf | 520mV |
| onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NTS260SFGBrand | onsemi |
Key Features
- Maximum continuous forward current of 1 ampere ensures reliable performance.
- Peak reverse repetitive voltage of 30 volts supports various electronic circuits.
- Compact surface mount SOD-123F package with dimensions 2.7mm length, 1.7mm width, and 1.2mm height.
- Ultra-low leakage current and fast switching for efficiency.
- Operating temperature range from -65°C to 150°C for durability in harsh environments.
- Maximum forward voltage of 520 millivolts minimizes power loss.
- Peak non-repetitive forward surge current rating of 9 amperes for transient robustness.
- 2-pin single diode configuration designed for electronic component integration.
Product Description
Nexperia PMEG3010CEH,115 Schottky Diode 2-Pin SOD-123F offers reliable semiconductor performance optimized for electronic applications requiring low forward voltage drop and high junction temperature tolerance. This device supports maximum continuous forward current of 1 ampere and peak reverse repetitive voltage of 30 volts, making it suitable for power regulation and rectification in compact circuit designs.
The diode features a single configuration in a surface mount SOD-123F package, measuring 2.7mm in length, 1.7mm in width, and 1.2mm in height, enabling space-saving board layouts. It exhibits low leakage current and fast switching capabilities that reduce power losses and enhance efficiency in switching applications.
Designed to operate in extreme conditions, the diode maintains functional integrity from -65°C minimum operating temperature up to 150°C maximum operating temperature. It withstands peak non-repetitive forward surge currents up to 9 amperes, providing transient resilience in electronic circuits.
Commonly utilized across industrial, electronics manufacturing, automotive electronics, power supply units, and general semiconductor applications, this Schottky Diode offers dependable performance where efficiency and compact form factor are required.
Maximum continuous forward current of 1 ampere ensures reliable performance. Peak reverse repetitive voltage of 30 volts supports various electronic circuits. Compact surface mount SOD-123F package with dimensions 2.7mm length, 1.7mm width, and 1.2mm height.
Ultra-low leakage current and fast switching for efficiency. Operating temperature range from -65°C to 150°C for durability in harsh environments. Maximum forward voltage of 520 millivolts minimizes power loss. Peak non-repetitive forward surge current rating of 9 amperes for transient robustness.
2-pin single diode configuration designed for electronic component integration. Explore more semiconductor and diode components at EnvMart for your industrial and electronic product needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
The peak reverse repetitive voltage rating is 30 volts.
The SOD-123F package has dimensions of 2.7mm in length, 1.7mm in width, and 1.2mm in height.
The operating temperature range is from -65°C to 150°C.
The maximum forward voltage drop is 520 millivolts.
The peak non-repetitive forward surge current rating is 9 amperes.
This diode supports surface mounting.
This model has a 2-pin configuration.
The peak reverse current rating is 50 microamperes (μA).
This diode is commonly utilized in power regulation, rectification, and various electronic circuits.
This diode is classified as a Schottky rectifier.
The brand is Nexperia and the model is PMEG3010CEH,115.
