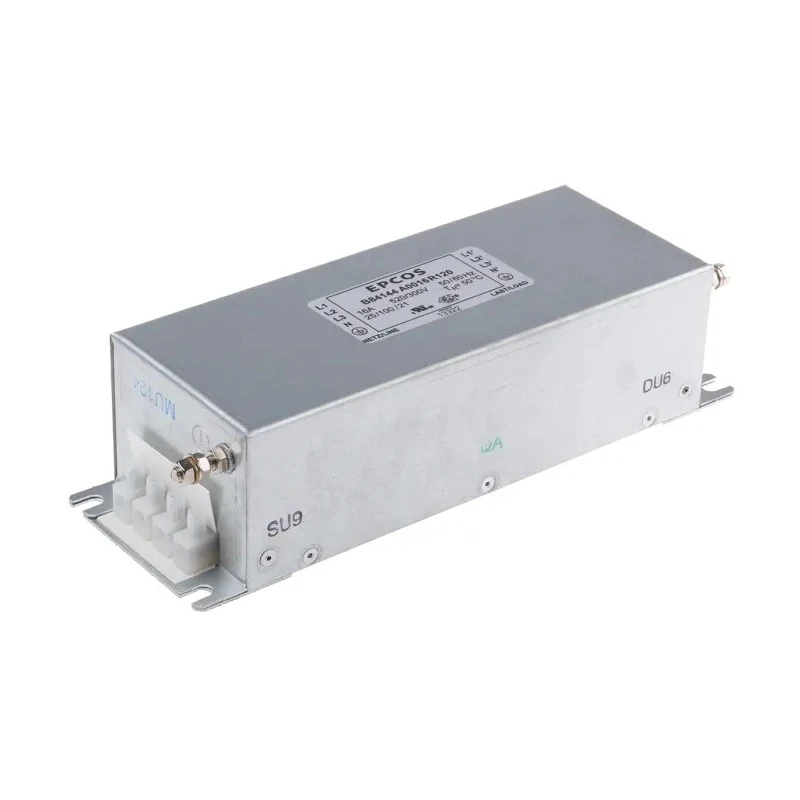

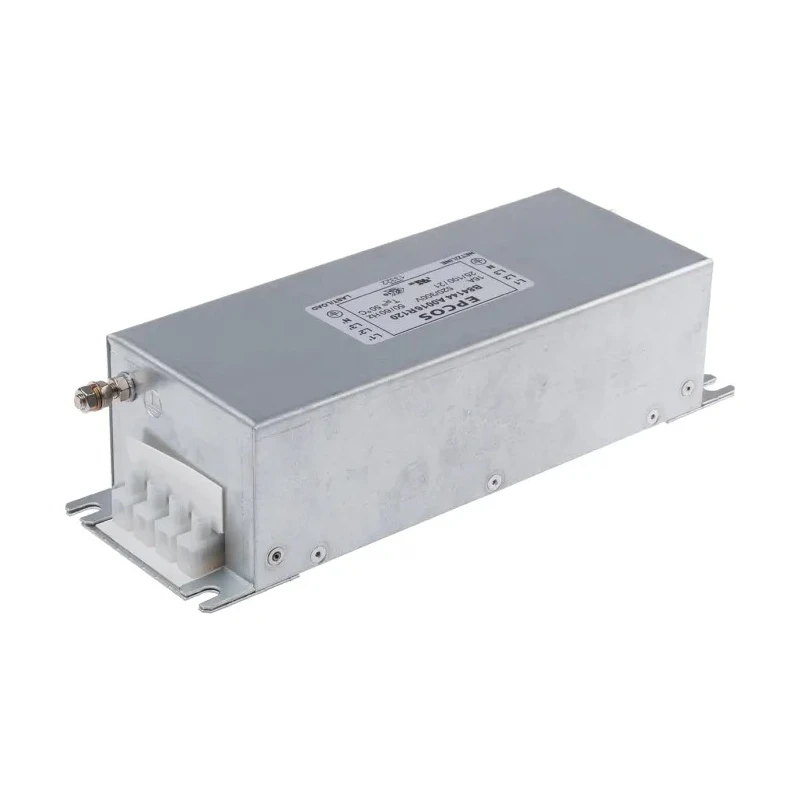

TDK 3 Phase Flange EMC Power Line Filter 16 A 520V AC 50Hz 60Hz Screw Termination B84144A0016R120
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 60mm |
| Length | 80mm |
| Model | B84144A0016R120 |
| Depth | 238mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84144A*R120 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 7.5mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 3 |
| Leakage Current | 9.4mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
| Applications include | Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications |
| Block, HLD 110 16 A 520V ac 60Hz, Flange RFI Filter, Screw 3 PhaseBrand | Block |
Key Features
- Operates efficiently at 50 Hz and 60 Hz frequencies.
- Mounting is flange type with screw termination for secure connections.
- Designed for use in motor drive frequency converters and industrial power supplies.
- Supports long motor cables and operation under full load conditions.
- Constructed with a metal case potted in polyurethane for enhanced durability.
- Leakage current is measured at 9.4 mA, ensuring system safety.
- Operates within temperature range of -25°C to 100°C for versatile environmental use.
- Complies with UL 1283 standard for EMI filter safety and performance.
Product Description
TDK B84144A0016R120 is a 3 Phase Flange EMC Power Line Filter specifically designed for robust industrial applications requiring effective EMI/RFI suppression. It supports a maximum current of 16 A and a maximum voltage of 520V AC, operating efficiently at both 50 Hz and 60 Hz frequencies.
The filter features a flange mounting with secure screw terminations, allowing easy installation on motor drives, frequency converters, elevators, pumps, conveyors, and HVAC systems. Its metal case is potted in polyurethane (UL 94 V-0 rated) for enhanced protection and durability against harsh industrial environments.
Designed to optimize long motor cable lengths and full load operation, this filter ensures reduced electromagnetic interference, contributing to safer and more reliable power supply systems. The operating temperature range from -25°C to 100°C suits various industrial settings.
Leakage current is maintained at a low 9.4 mA, with a resistance of 7.5 milliohms, ensuring minimal energy loss during operation. TDK’s product adheres to the UL 1283 standard, with approvals pending for UL and cUL, ensuring compliance with international safety requirements.
Physical dimensions are 80 mm length, 238 mm depth, and 60 mm height, making the filter compact and suitable for integration into existing systems with constrained space.
Applications for this filter include frequency converters for motor drives such as elevators, pumps, conveyor systems, and HVAC equipment, as well as power supplies and other industrial applications requiring EMI suppression.
Operates efficiently at 50 Hz and 60 Hz frequencies. Flange mounting with screw termination style ensures stable and secure installation. Constructed with metal casing potted in polyurethane for durability and safety. Designed for long motor cables and full load operation optimization.
Compliant with UL 1283 standard and other international regulations. Low leakage current of 9.4 mA supports overall system protection. Wide operating temperature range from -25°C to 100°C suits various environments. Compact dimensions facilitate easy integration into industrial equipment.
Suitable for use in elevators, pumps, conveyors, HVAC systems, and power supplies. Explore more EMC filters and similar industrial components at EnvMart for comprehensive solutions tailored to electrical noise suppression and power line conditioning.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 16 A.
This unit operates at a maximum voltage of 520V AC.
It operates efficiently at both 50 Hz and 60 Hz frequencies.
The dimensions of this model are 80 mm in length, 238 mm in depth, and 60 mm in height.
It features a flange mounting with screw termination for secure connections.
The leakage current is measured at 9.4 mA, ensuring system safety.
It operates within a temperature range of -25°C to 100°C.
This filter complies with the UL 1283 standard for EMI filter safety and performance.
The resistance of this model is 7.5 milliohms.
It is constructed with a metal case potted in polyurethane for enhanced durability.
This model supports 3 phases.
