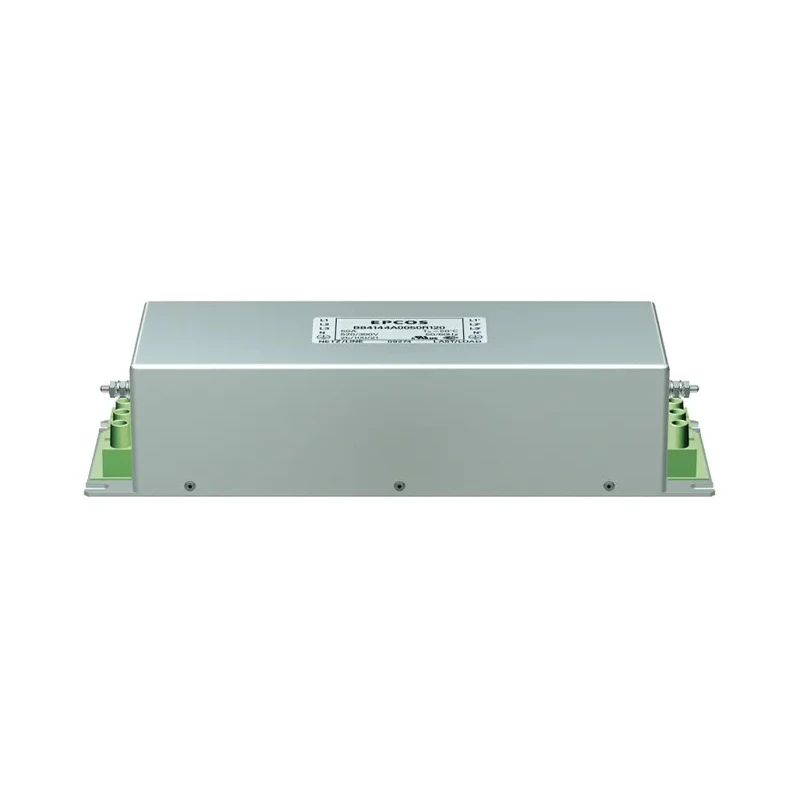

TDK Flange EMC Filter 200 A 520V AC 50Hz/60Hz Screw Termination 3 Phase B84144A0200R120
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TDK |
| Height | 130mm |
| Length | 160mm |
| Model | B84144A0200R120 |
| Depth | 351mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84144A*R120 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 230Ω |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200A |
| Number of Phases | 3 |
| Leakage Current | 16mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
| Applications include | Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications |
Key Features
- Designed for installation with flange mount and screw termination style.
- Optimized for use with long motor cables under full load conditions.
- Constructed with a metal case potted in polyurethane with UL 94 V-0 compliance.
- Supports maximum operating temperature of 100°C and minimum of -25°C.
- Leakage current is rated at 16 mA ensuring low emissions.
- Applications include frequency converters for motor drives such as elevators, pumps, conveyors, and HVAC systems.
- Complies with standards EN 133200, UL 1283, and CSA C22.2 No.8.
- Durable filter with resistance of 230Ω and 1 stage in the operating series.
Product Description
TDK B84144A0200R120 is a high-performance flange EMC filter designed for 3 phase AC power line filtering applications, rated for a maximum current of 200 A and a maximum voltage of 520 V AC. It operates efficiently at frequencies of 50 Hz and 60 Hz, suitable for industrial power line protection.
The filter features a sturdy metal case, potted in flame-retardant polyurethane (UL 94 V-0), providing robust protection and reliability even under demanding conditions. Its flange mounting and screw termination style enable secure and easy installation.
This filter is optimized for long motor cables and full load operations, making it ideal for frequency converters used in diverse motor drives such as elevators, pumps, conveyor systems, and HVAC equipment. The product exhibits a low leakage current of 16 mA and maintains resistance at 230 ohms for stable filtering performance.
Rated for operation between -25°C and 100°C, it is suitable for various industrial environments. The compact dimensions (Height: 130 mm, Depth: 351 mm, Length: 160 mm) accommodate diverse installation setups.
The filter meets stringent international standards including EN 133200, UL 1283, and CSA C22.2 No.8, with UL and cUL approvals pending, ensuring compliance and safety in industrial applications.
Designed for 3 phase power line filtering with a maximum current of 200 A and 520V AC voltage. Flange mount with screw termination for secure installation. Constructed in metal case potted with polyurethane (UL 94 V-0) for durability.
Optimized for long motor cables and heavy load motor drives. Suitable for frequency converters in elevators, pumps, conveyors, and HVAC systems. Operates reliably at temperatures from -25°C to 100°C. Complies with EN 133200, UL 1283, and CSA C22.2 No.8 standards.
Low leakage current of 16 mA and resistance of 230 ohms for effective EMI suppression. Compact size with height 130 mm, depth 351 mm, length 160 mm.
This TDK EMC filter is a reliable solution for industrial, manufacturing, and HVAC power line EMI protection needs. Discover more high-quality filters and electronic components within the Power Line Filters category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 200 A.
It is rated for a maximum voltage of 520 V AC.
The dimensions are as follows: Height 130 mm, Length 160 mm, and Depth 351 mm.
The leakage current is rated at 16 mA, ensuring low emissions.
It can operate in temperatures ranging from -25°C to 100°C.
The filter features a screw termination style for secure installation.
It complies with standards EN 133200, UL 1283, and CSA C22.2 No.8.
The resistance value is 230 Ω, contributing to its filtering performance.
This model supports 3 phases for effective power line filtering.
It is designed for flange mounting, allowing for easy installation.
The operating frequency range is 50 Hz and 60 Hz.
