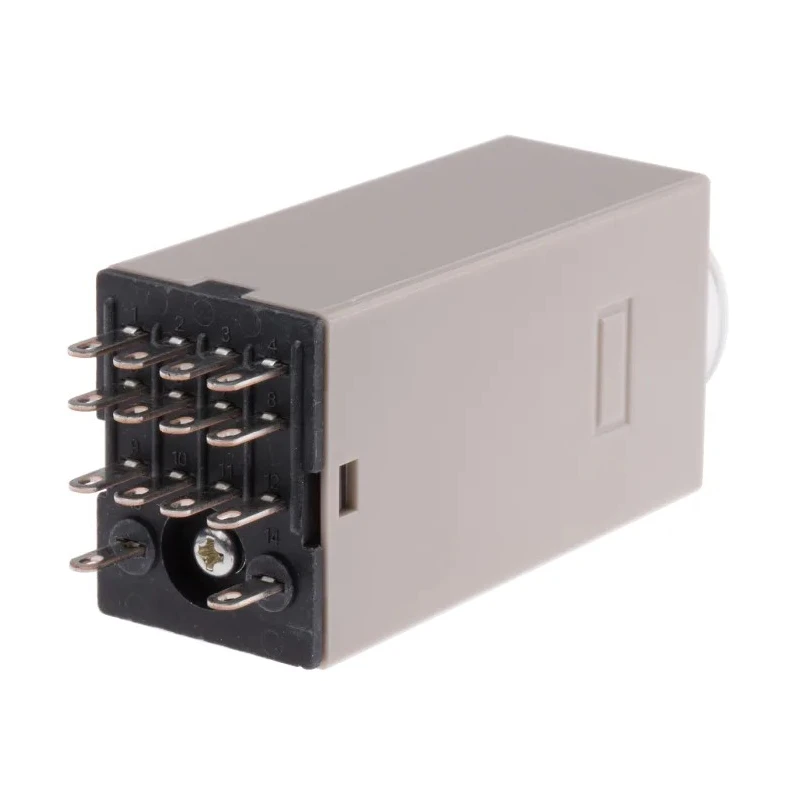

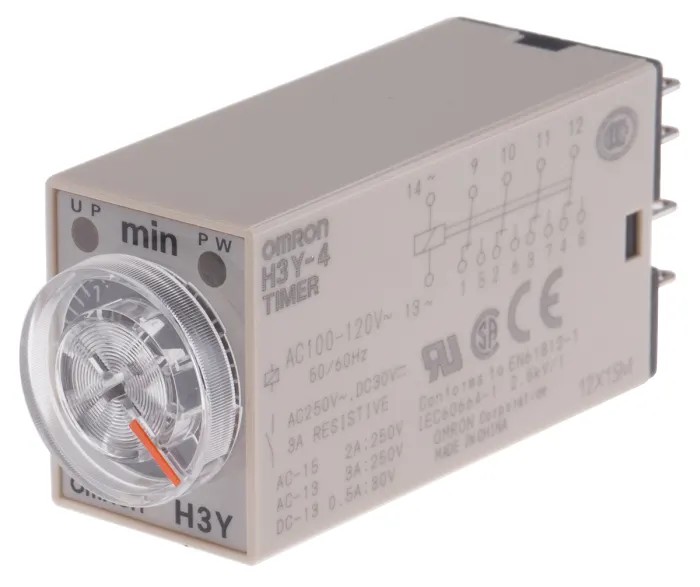

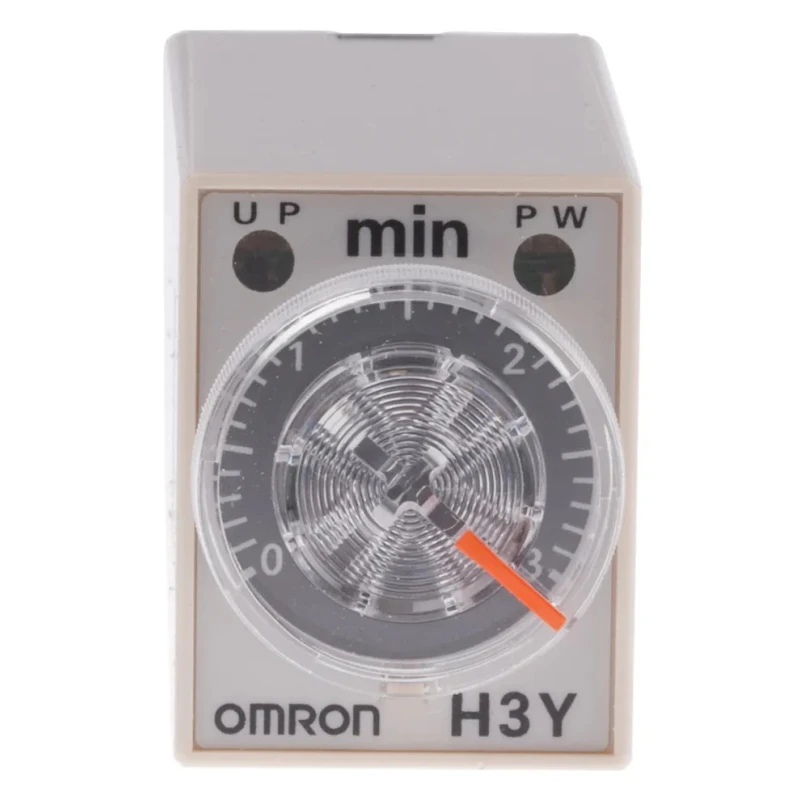

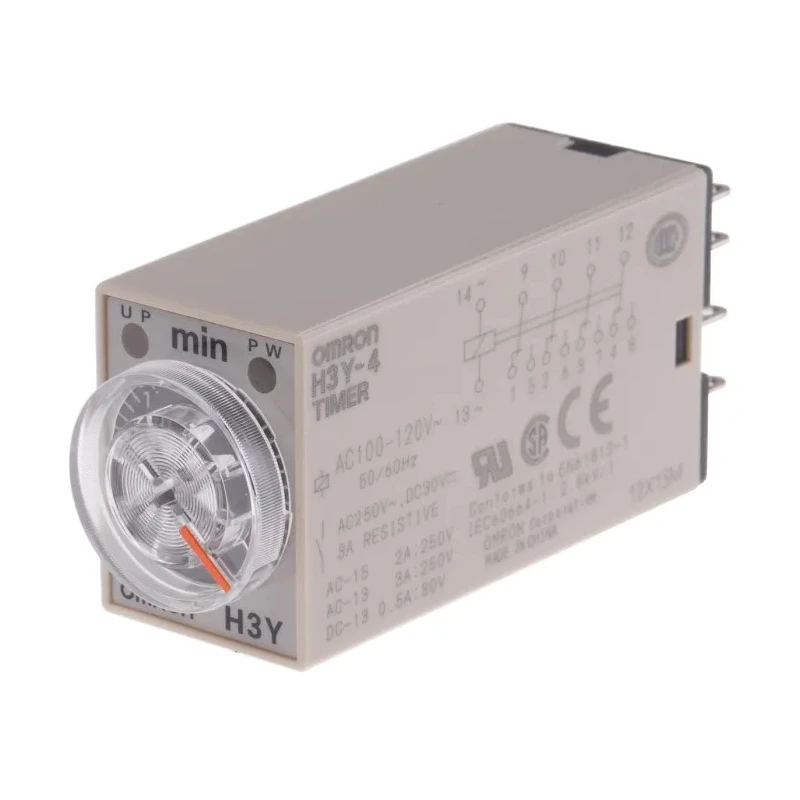

Omron DIN Rail Surface Mount Timer Relay 4-Contact 250V AC 5A, 0.1 to 3 min ON Delay, Model H3Y-4 100-120VAC 3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Length | 28mm |
| Model | H3Y-4 100-120VAC 3M |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 21.5mm |
| Mount Type | DIN Rail, Surface Mount |
| Series | H3Y-4 |
| Maximum Operating Temperature | 50°C |

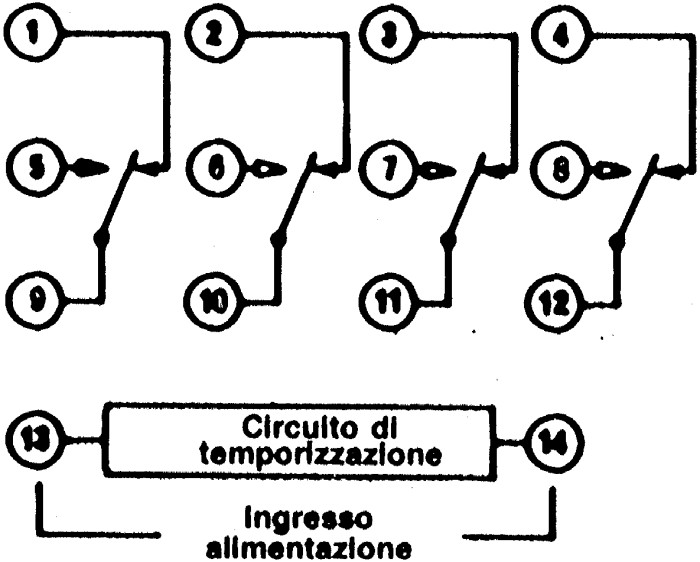

| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 to 3 min |
| Terminal type | Plug-In |
| Number of Contacts | 4 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 125 V |
| Supply AC Voltage | 100, 120V ac |
Key Features
- Compact surface mount design suitable for DIN rail installation.
- Adjustable ON delay timer from 0.1 to 3 minutes.
- Four changeover (4PDT) contacts rated for 5A switching current at up to 250V AC.
- Operates with 100-120V AC or 125V DC supply voltages.
- IP40 enclosure rating ensures protection for indoor panel mounting.
- Operating temperature range from -10°C to +50°C for reliable performance.
- Plug-in terminal type allows quick replacement and easy maintenance.
- Certified to multiple standards including UL 508, CSA C22.2 No. 14, IEC 60664-1, and Lloyd's approvals.
Product Description
The Omron H3Y-4 100-120VAC 3M timer relay is a high-quality industrial control device designed for time-delayed switching in automated systems and control panels. Its compact form factor allows it to be easily mounted on standard DIN rails or surface mount applications within control enclosures.
This model features an adjustable ON delay timer ranging from 0.1 to 3 minutes, providing precise timing control for various industrial sequencing tasks. It is configured with four changeover contacts (4PDT) capable of switching currents up to 5A at 250V AC, allowing simultaneous multi-circuit control.
Designed for versatility, the relay operates from 100 to 120V AC mains or a 125V DC supply. The plug-in terminal design ensures convenient installation and rapid replacement during maintenance. With an IP40 rating, it is protected against solid ingress for indoor panel applications.
The operating temperature range of -10°C to 50°C ensures reliable performance in typical industrial environments. Certified to multiple global standards including UL 508, CSA C22.2 No. 14, IEC 60664-1, and Lloyd's, it meets stringent quality and safety requirements.
Typical applications include sequenced motor start-stop control, timed valve and actuator control in process automation, delayed activation of indicator circuits, lighting control in industrial automation systems, and interlocking timing between machine components.
Compact DIN rail and surface mount Timer Relay with 4 changeover contacts. Time range adjustable from 0.1 to 3 minutes for precise ON delay operation. Rated for 5A contact current and 250V switching voltage supporting common industrial loads.
Supports 100-120V AC or 125V DC supply voltage options for versatile deployment. Plug-in terminals simplify installation and maintenance tasks. IP40 protection suitable for indoor panel mounting applications. Operates reliably across -10 to 50 degrees Celsius industrial temperature range.
Meets international standards UL, CSA, IEC, CCC, and Lloyd's classification. Ideal for motor control, process automation, lighting, and interlock timing systems. Explore the comprehensive range of Omron automation components available on EnvMart to optimize your electrical control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay features an adjustable ON delay time range from 0.1 to 3 minutes.
This model has a contact configuration of 4PDT (four changeover contacts).
The maximum switching voltage for this relay is 250V AC.
It operates with supply voltages of 100-120V AC or 125V DC.
The relay is rated for a contact current of 5A.
The timer relay has an IP40 enclosure rating, suitable for indoor panel mounting.
The dimensions of this model are 63mm in height, 28mm in length, and 21.5mm in width.
The operating temperature range is from -10°C to 50°C.
It features plug-in terminals for convenient installation and maintenance.
Typical applications include sequenced motor control, timed valve control, and lighting control in industrial automation systems.
Yes, it is certified to multiple standards including UL 508, CSA C22.2 No. 14, IEC 60664-1, and Lloyd's approvals.
This model can be mounted on DIN rails or used in surface mount applications.
