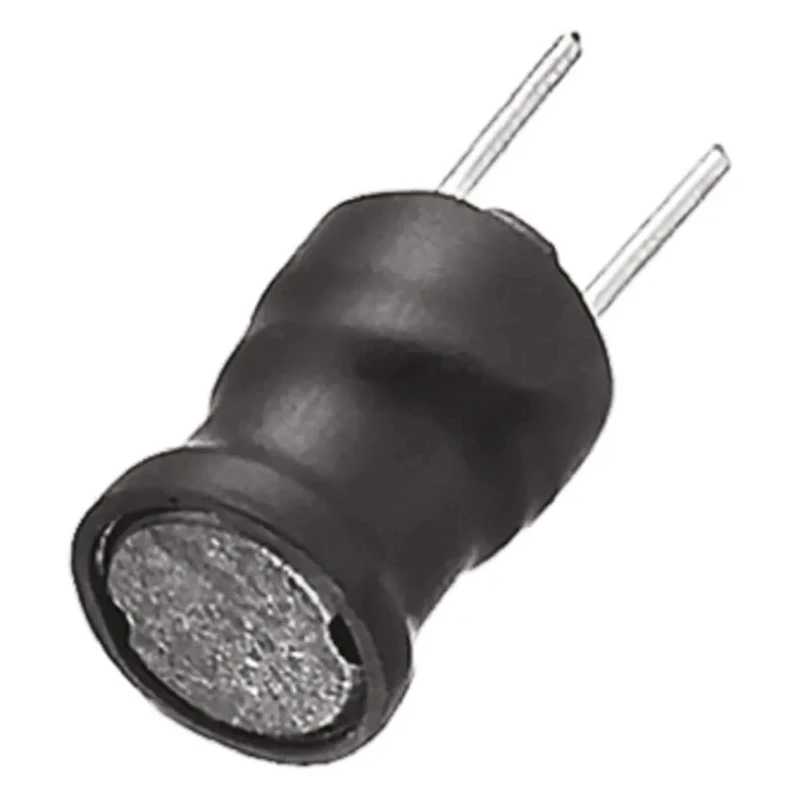

Wurth Elektronik WE-TI 5075 Unshielded Wirewound Surface Mount Inductor Ferrite Core 220μH ±10% 500mA 7447462221

Wurth Elektronik 7447462221 WE-TI 5075 unshielded wirewound Surface Mount Inductor features a ferrite core with an inductance of 220μH and a tolerance of ±10%.

Designed for applications requiring up to 500mA maximum DC current, this radial-mounted inductor offers low DC resistance of 1.2 ohms and stability over a temperature range from -40°C to 125°C.

The compact size of 6mm diameter, 8.5mm height, and 6mm depth enables integration in dense electronic assemblies.

This power inductor delivers a high self-resonant frequency of 4.2MHz, making it suitable for signal filtering, EMI filters, power supply filters, and decoupling tasks in industrial, automotive (non-automotive standard compliant), and consumer electronics.

Its wirewound construction ensures reliable inductive performance while the ferrite core material supports minimal losses. Termination is radial style for surface mounting on printed circuit boards.

The component complies with international standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, assuring regulatory and environmental conformity. Packaged in protective bags and cartons, it facilitates safe handling and efficient insertion into automated machinery during production.

This inductor is part of the Wurth WE-TI Series, widely recognized for high quality and performance in electronic component designs. This inductor has an inductance tolerance of ±10% for precise circuit performance. Features a radial termination style designed for surface mounting applications.

Constructed with a high-quality ferrite core and wirewound design for optimal electrical characteristics. Can operate reliably between -40°C and 125°C for a wide temperature range. Maximum DC resistance is 1.2 ohms ensuring low power loss.

Supports a maximum self resonant frequency of 4.2MHz suitable for signal filtering and EMI suppression. Compact dimensions of 6mm diameter, 8.5mm height, and 6mm depth allow for dense PCB layout. Packaged in bags and cartons for safe delivery and easy handling.

Compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards. Ideal for use in power supply filters, decoupling tasks, signal filtering, and low power switch mode regulators. Explore Wurth Elektronik inductors and related electronic components at EnvMart for your industrial and manufacturing needs.
