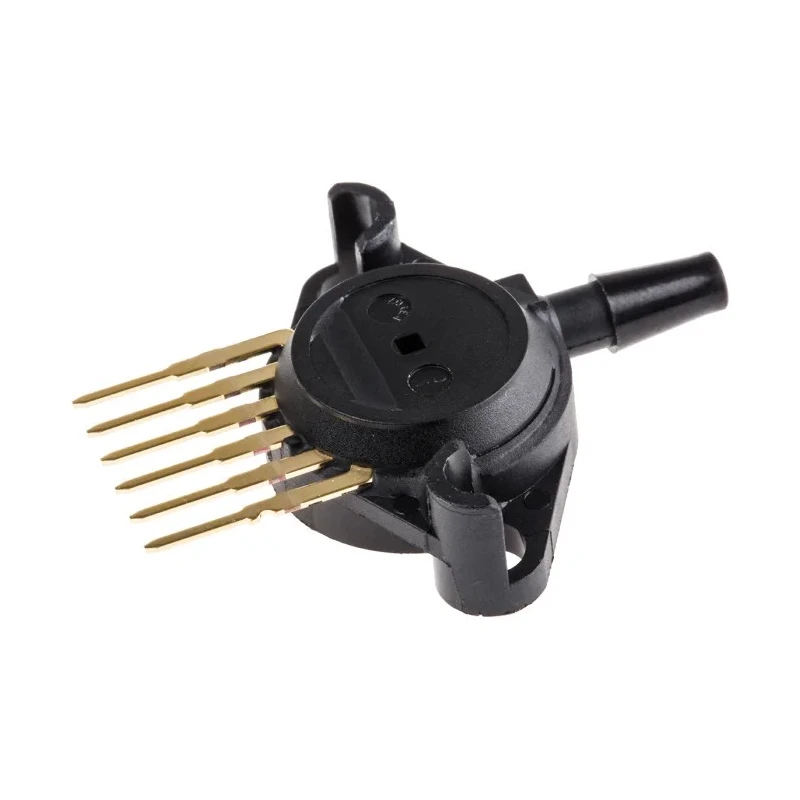

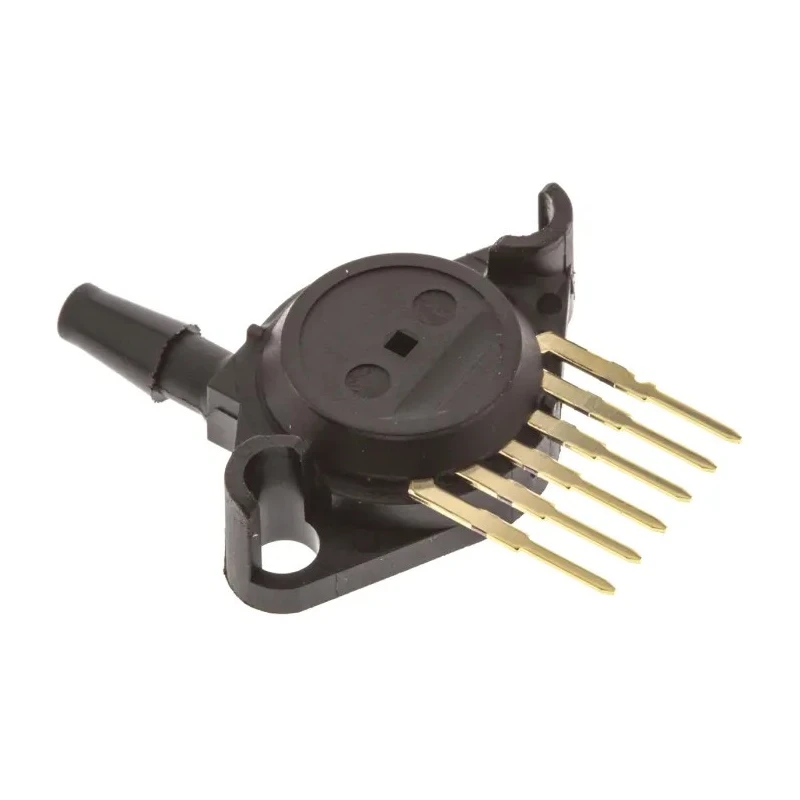

NXP Gauge Pressure Sensor Surface Mount Unibody Package 6-Pin 0-10 kPa 4.75-5.25 V MPX5010GP
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±5 % |
| Brand | NXP |
| Maximum Operating Pressure | 10 kPa |
| Height | 29.34mm |
| Length | 29.85mm |
| Model | MPX5010GP |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Surface |
| Series | MPX5010GP |
| Maximum Operating Temperature | 125°C |
| Port Type | Single Radial Barbed |
| Package Type | Unibody |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 450mV/kPa |
| Maximum Output Voltage | 4.7V |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Minimum Operating Pressure | 0kPa |
| Maximum Overload Pressure | 40kPa |
Key Features
- This sensor operates with a supply voltage ranging from 4.75V to 5.25V.
- Maximum overload pressure tolerates up to 40 kPa ensuring sensor durability.
- Typical sensitivity is 450 mV/kPa suitable for accurate pressure detection.
- Operates reliably between -40°C to 125°C for wide temperature applications.
- Compact dimensions with length 29.85 mm and height 29.34 mm facilitate easy PCB integration.
- Pin count of 6 in a unibody surface mount package supports secure and stable connections.
- Maximum output voltage is 4.7V enabling effective signal processing.
- Single radial barbed port type designed for pressure source connection.
Product Description
NXP MPX5010GP Gauge Pressure Sensor offers a reliable solution for low-pressure measurement applications within industrial and electronic circuits. Featuring a unibody surface mount package with 6 pins, this sensor delivers durable and stable performance with a maximum operating pressure of 10 kPa and maximum overload pressure up to 40 kPa. It operates on a supply voltage between 4.75V and 5.25V, providing a typical sensitivity of 450 mV/kPa which ensures sensitive and accurate pressure detection.
The sensor is engineered for wide operating temperatures ranging from -40°C to 125°C, suitable for harsh environmental or industrial conditions. Its compact physical dimensions of 29.85 mm length and 29.34 mm height permit integration into various PCB designs without occupying excessive space. The device outputs a maximum voltage of 4.7V that interfaces well with control electronics and measurement systems.
Designed as a gauge pressure sensor, the MPX5010GP measures pressure relative to atmospheric pressure and utilizes a single radial barbed port for pressure input connection. Its ±5% accuracy supports general industrial applications including laboratory instrumentation, HVAC systems, water treatment monitoring, and manufacturing process controls. Although it does not have specific automotive certification, it remains a versatile sensor for numerous commercial and industrial uses.
This sensor package includes a single MPX5010GP unit with surface mount configuration for easy machinery insertion. Applications encompass electronic pressure detection, automation controls, and sensor-based monitoring systems.
Installation requires proper surface mount PCB layouts matching the 6-pin unibody package specifications. Explore our expansive range of pressure sensors and sensor ICs at EnvMart for comprehensive industrial and electronic component solutions.
Explore more products in our Pressure Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 10 kPa.
It operates with a supply voltage ranging from 4.75V to 5.25V.
The typical sensitivity is 450 mV/kPa, which ensures accurate pressure detection.
This model has a length of 29.85 mm and a height of 29.34 mm.
It operates reliably between -40°C and 125°C, making it suitable for various applications.
It features a single radial barbed port type designed for pressure source connection.
The maximum output voltage is 4.7V, which allows for effective signal processing.
This sensor has a pin count of 6 in a unibody surface mount package.
The accuracy of this sensor is ±5%.
It is suitable for general industrial applications including laboratory instrumentation, HVAC systems, and water treatment monitoring.
The maximum overload pressure is up to 40 kPa, ensuring sensor durability under extreme conditions.
This model utilizes a surface mount configuration for easy integration into PCB layouts.
