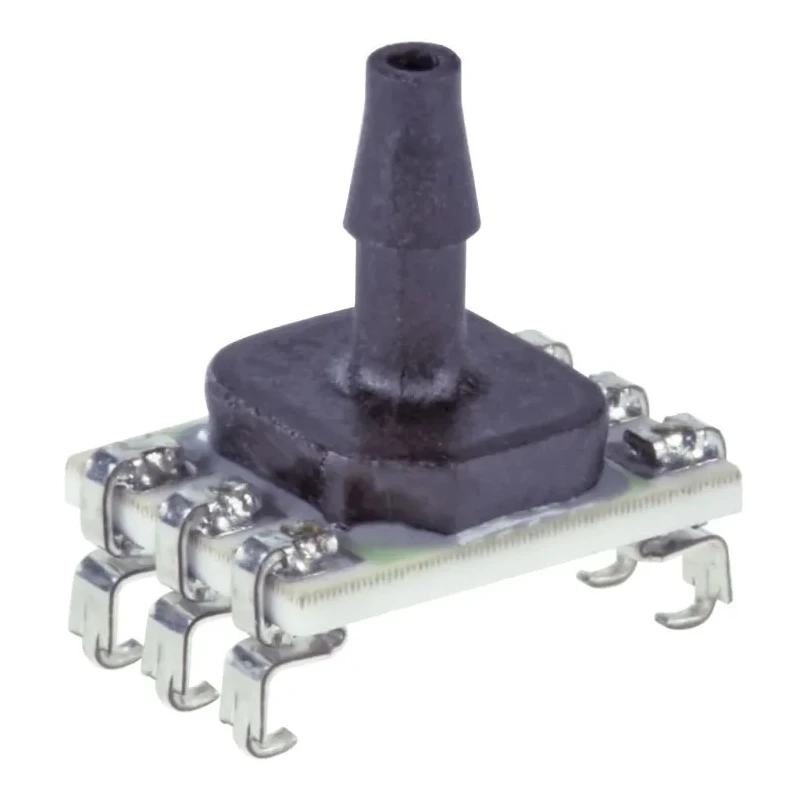

Honeywell Technologies Gauge Pressure Sensor Board 6-Pin SMT, 150 psi, ±0.25% Accuracy, 5V, -40°C to 85°C ABPMANV150PG2A3

Honeywell Technologies ABPMANV150PG2A3 is a precision gauge pressure sensor board designed for measuring pressure relative to ambient conditions in gas or liquid environments. This 6-pin SMT board mount sensor operates with a maximum pressure of 150 psi and offers an impressive accuracy of ±0.25%, suitable for critical industrial and medical applications.

The device supports supply voltages from -0.3 V up to 5 V and functions reliably within a temperature range of -40°C to 85°C, making it ideal for harsh environments. The sensor includes on-board analog and digital output capabilities with ratiometric analogue signals or 12-bit digital communication compatible with I2C or SPI protocols. The single axial barbed port design provides robust pressure interface, enhanced by overload protection up to 1724 kPa that guards against permanent damage.

Integrated temperature compensation and calibration ASIC ensure precision despite temperature fluctuations. It finds applications in CPAP and ventilator pressure monitoring, HVAC and pneumatic systems, consumer appliances like coffee and washing machines, air-brake sensing, and valve position feedback. The sensor supports wet-wet differential sensing and is protected against condensation and non-corrosive liquids when combined with silicone-based gel versions.

The compact dimensions (Length: 7.3 mm, Width: 6.3 mm, Height: 10.63 mm) and ISO 9001 automotive standard certification underscore this product’s quality and reliability. The sensor is BPA Free, LFGB compliant, and meets NSF-169 standards, certifying it for safety in various environments.

Handles maximum operating pressure of 150 psi with ±0.25% accuracy. Operates via a 6-pin SMT board mount configuration for easy PCB integration. Supports supply voltages from -0.3 V to 5 V for flexible design implementations.

Functioning temperature range extends from -40°C to 85°C for harsh environment suitability. Features a single axial barbed port type with overload protection up to 1724 kPa. Includes on-board compensation for offset, sensitivity, and temperature effects to ensure reliable readings.

Outputs ratiometric analogue or 12-bit digital compatible with I2C or SPI interfaces. Suitable for industrial, medical, HVAC, pneumatic control, and fluidic measurement applications. Certified with BPA Free, LFGB, NSF-169, and ISO 9001 automotive standard compliance.

EnvMart offers the Honeywell ABPMANV150PG2A3 pressure sensor as part of its broad industrial electronics catalog, suitable for experts seeking reliable and precise sensor solutions.
