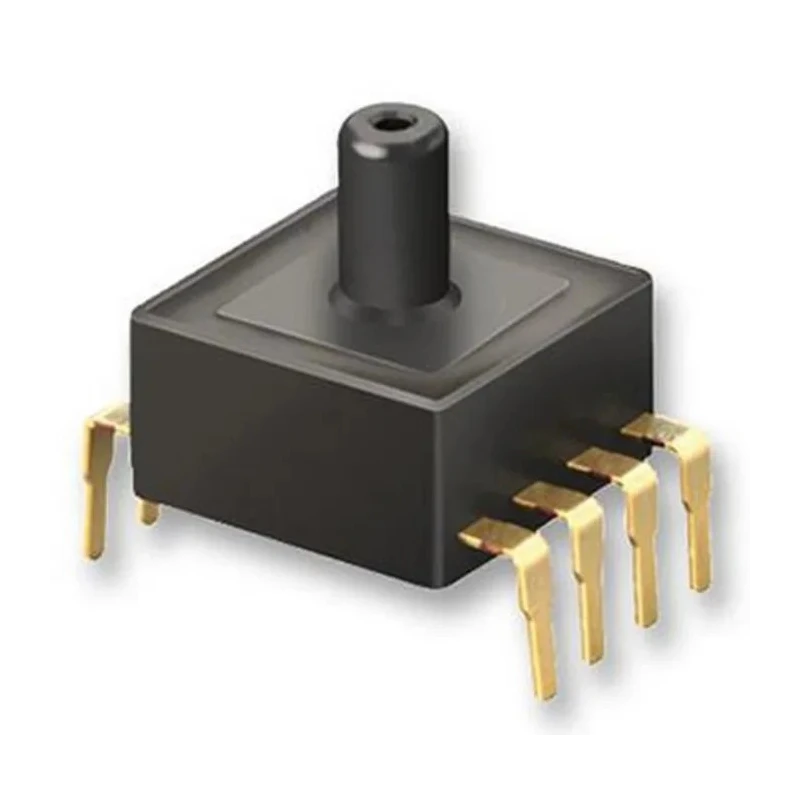

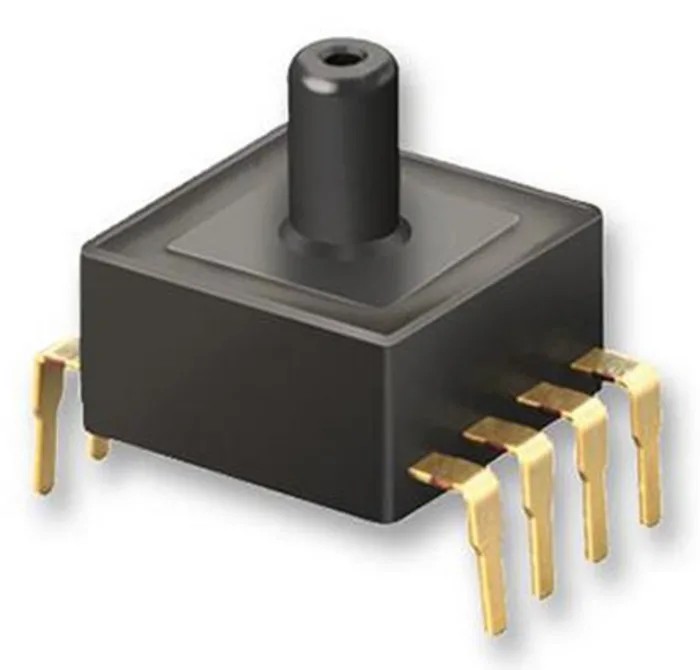

Panasonic Gauge Pressure Sensor Through Hole 6 DIP ADP5141
Specifications
| Country of Origin | Japan |
|---|---|
| Accuracy | ±1.25 % |
| Brand | Panasonic |
| Height | 6.5mm |
| Length | 7mm |
| Model | ADP5141 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Through Hole |
| Series | ADP5141 |
| Maximum Operating Temperature | 50°C |
| Port Type | Dip Terminal |
| Package Type | DIP |
| Minimum Operating Temperature | 0°C |
| Typical Sensitivity | 1.3%FS |
| Maximum Output Voltage | 4.5V |
| Pin Count | 6 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Minimum Operating Pressure | 0kPa |
| Maximum Overload Pressure | 100kPa |
| Base area | 7.2 x 7.2 mm |
Key Features
- Precision gauge pressure sensor with built-in amplifier and compensation circuit.
- Typical sensitivity of 1.3% FS ensuring reliable output.
- Operational voltage range from 3V to 5V suitable for varied electronic systems.
- Maximum operating pressure and overload pressure at 100 kPa.
- Compact DIP package with 6 pins and through hole mounting style.
- Operating temperature range from 0°C to 50°C suitable for industrial and medical use.
- Maximum output voltage of 4.5V and high accuracy of ±1.25%.
- Base area compact size of 7.2 x 7.2 mm to save PCB space.
Product Description
Panasonic ADP5141 Gauge Pressure Sensor is a high-performance sensor designed with a built-in amplifier and compensating circuit to ensure precise pressure measurements. This sensor offers high-level precision and reliability, meeting demands in industrial, medical, and household applications.
The ADP5141 model features a through-hole mount with a 6-pin DIP package making it ideal for incorporation into printed circuit boards. Operable within 3 to 5 volts supply voltage, it has a maximum operating pressure of 100 kPa and can withstand the same maximum overload pressure, suited for pneumatic devices, pressure switches, blood pressure monitors, compressed air pressure measurements, and water level detection.
Its compact size with a base area of 7.2 x 7.2 mm and dimensions of 7 mm length and 6.5 mm height allow for efficient space usage. The sensor tolerates operating temperatures ranging from 0°C to 50°C and provides a maximum output voltage of 4.5V with an accuracy of ±1.25%.
Applications for the Panasonic ADP5141 include industrial process control, medical instruments such as blood pressure monitoring devices, pneumatic measurement equipment, and home appliances requiring water level and air pressure detection.
Precision gauge pressure sensor with built-in amplifier and compensation circuit. Typical sensitivity of 1.3% FS ensuring reliable output. Operational voltage range from 3V to 5V suitable for varied electronic systems. Maximum operating pressure and overload pressure at 100 kPa.
Compact DIP package with 6 pins and through hole mounting style. Operating temperature range from 0°C to 50°C suitable for industrial and medical use. Maximum output voltage of 4.5V and high accuracy of ±1.25%. Base area compact size of 7.2 x 7.2 mm to save PCB space.
Designed for applications in industrial, medical, and household appliances.
For detailed design integration, industrial and laboratory engineers can download 3D models, schematics, and footprints provided by Panasonic. This product is a reliable choice for high precision pressure measurement and control systems across multiple sectors.
Explore more products in our Pressure Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational voltage range of this model is from 3V to 5V, making it suitable for various electronic systems.
The maximum operating pressure for this sensor is 100 kPa, which also matches its maximum overload pressure.
The accuracy of this model is ±1.25%, ensuring reliable pressure measurements.
This sensor has a length of 7 mm, a height of 6.5 mm, and a compact base area of 7.2 x 7.2 mm.
The typical sensitivity of this gauge pressure sensor is 1.3% FS, which contributes to its reliable output.
The operating temperature range for the ADP5141 is from 0°C to 50°C, suitable for industrial and medical applications.
This model features a 6-pin configuration, designed for through-hole mounting.
The maximum output voltage of this sensor is 4.5V, allowing for effective signal processing in electronic systems.
The ADP5141 uses a through-hole mount type, which is compatible with standard printed circuit boards (PCBs).
This gauge pressure sensor is designed for applications in industrial process control, medical instruments, pneumatic measurement equipment, and household appliances.
The country of origin for this product is Japan.
The ADP5141 is classified as a gauge pressure sensor, which measures pressure relative to atmospheric pressure.
