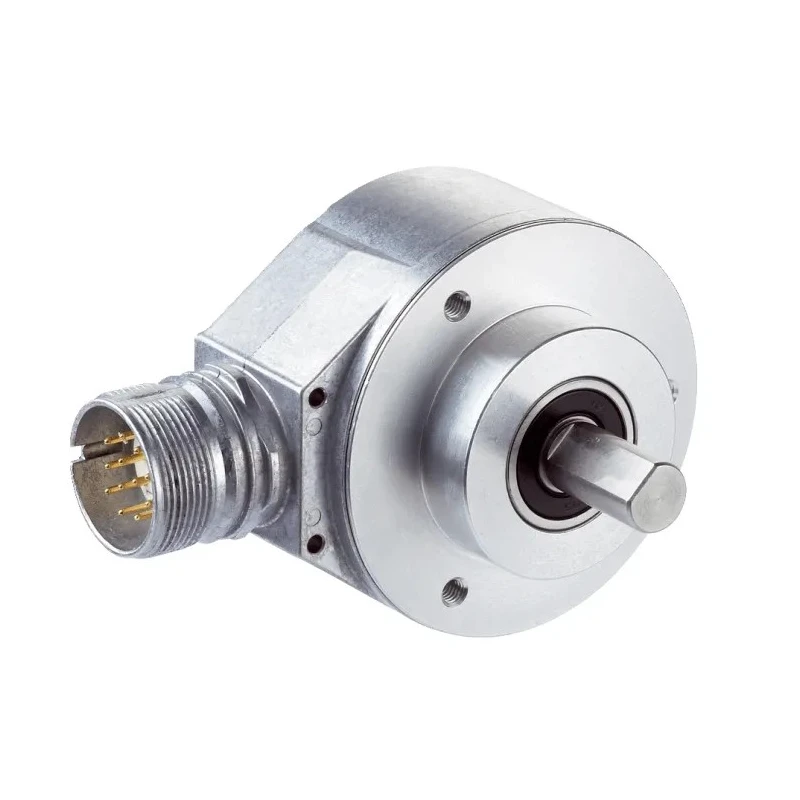

SICK Incremental Encoder, 1000 ppr, 32V, HTL Output, 10mm Solid Shaft, IP65 DFS60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Connection | Radial or axial cable connection, M23 or M12 male connector, axial or radial |
| Model | DFS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DFS60 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 10mm |
| Overall height | 60mm |
| Switching Frequency | 600kHz |
| Shaft Type | Solid |
| Terminal type | Plug-In |
| Interface Type | Incremental |
| Pulses per Revolution | 1000ppr |
| Maximum Supply Voltage | 32V |
| Overall Depth | 40.1mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | HTL |
| Loop control | loop and speed measurement |
| Electrical interfaces | 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss |
| Mechanical interfaces | Face mount flange or servo flange, blind hollow shaft or through hollow shaft |
| Optional programming | Output voltage, zero pulse position, zero impulse width, pulse number and counting direction |
Key Features
- High-precision incremental encoder engineered for industrial automation and motion control.
- Delivers 1000 pulses per revolution for accurate speed and position feedback.
- Operates reliably in harsh conditions with an IP65 ingress protection rating.
- HTL output signal and 10 mm solid shaft for robust connectivity and mechanical interface.
- Wide voltage range up to 32V supports versatile installation requirements.
- Rugged build ensures high temperature endurance from -30°C to 100°C.
- Compact, 60 mm diameter with 40.1 mm depth minimizes installation space.
- Supports plug-in terminals and a choice of M23/M12 connectors for flexible wiring.
Product Description
The SICK DFS60B-S4EA01000 / 1037269 is a high-performance incremental encoder designed for demanding industrial applications, providing precise feedback for speed and position control. Featuring a 1000 pulses per revolution (ppr) resolution, this encoder is ideal for applications requiring accurate motion control in automation systems.
This model offers robust HTL (High Threshold Logic) output signaling, ensuring compatibility with a wide array of interface electronics. Its 10 mm solid shaft and full-shaft mounting type offer reliable mechanical coupling, while the plug-in terminal options and M23/M12 connection adaptability streamline system integration.
High-precision incremental encoder engineered for industrial automation and motion control. Delivers 1000 pulses per revolution for accurate speed and position feedback. Operates reliably in harsh conditions with an IP65 ingress protection rating.
HTL output signal and 10 mm solid shaft for robust connectivity and mechanical interface. Wide voltage range up to 32V supports versatile installation requirements. Rugged build ensures high temperature endurance from -30°C to 100°C.
Compact, 60 mm diameter with 40.1 mm depth minimizes installation space. Supports plug-in terminals and a choice of M23/M12 connectors for flexible wiring. Fully programmable zero pulse, counting direction, and pulse width via dedicated interface.
Complies with EN 61000-6-2 and EN 61000-6-4 for EMC standards.
With its advanced programmability (including output voltage, zero pulse position, and pulse direction) and wide electrical interface options (including TTL/RS-422, HTL/push-pull, Sin/Cos 1Vpp), the DFS60 series empowers engineers to customize feedback systems for optimal reliability. The encoder’s compact 60 mm diameter and shallow 40.1 mm depth allow for easy installation even where space is constrained, while a rugged IP65 enclosure and temperature range of -30°C to +100°C guarantee durable operation on the factory floor.
This encoder is ideally suited for use in conveyor systems, belt speed measurement, positioning of cutting torches, printing process control, damper position monitoring, and other demanding industrial, manufacturing, and process automation settings where high resolution and accuracy are paramount.
Accelerate your automation with the SICK DFS60 incremental encoder. For related sensors and signal conditioning solutions, explore the full SICK and Encoders range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It delivers 1000 pulses per revolution (ppr), providing accurate speed and position feedback for industrial applications.
The maximum operating temperature is 100°C, allowing it to function in high-temperature environments.
It features an HTL (High Threshold Logic) output signal type, ensuring compatibility with various interface electronics.
The shaft diameter is 10 mm, suitable for robust mechanical coupling.
It has an IP65 ingress protection rating, making it suitable for use in harsh industrial conditions.
The encoder has a diameter of 60 mm and a depth of 40.1 mm, designed for compact installations.
The minimum operating temperature is -30°C, allowing it to operate in cold environments.
It supports radial or axial cable connections with M23 or M12 male connectors, providing flexible wiring options.
The maximum switching frequency is 600 kHz, enabling high-speed applications.
It offers various electrical interfaces including 5 V & 24 V TTL/RS-422, 24 V HTL/push-pull, and 5 V sin/cos 1 Vpp.
It is suitable for applications such as conveyor systems, belt speed measurement, and process control in industrial automation settings.
Yes, it offers optional programming for output voltage, zero pulse position, pulse width, and counting direction.
