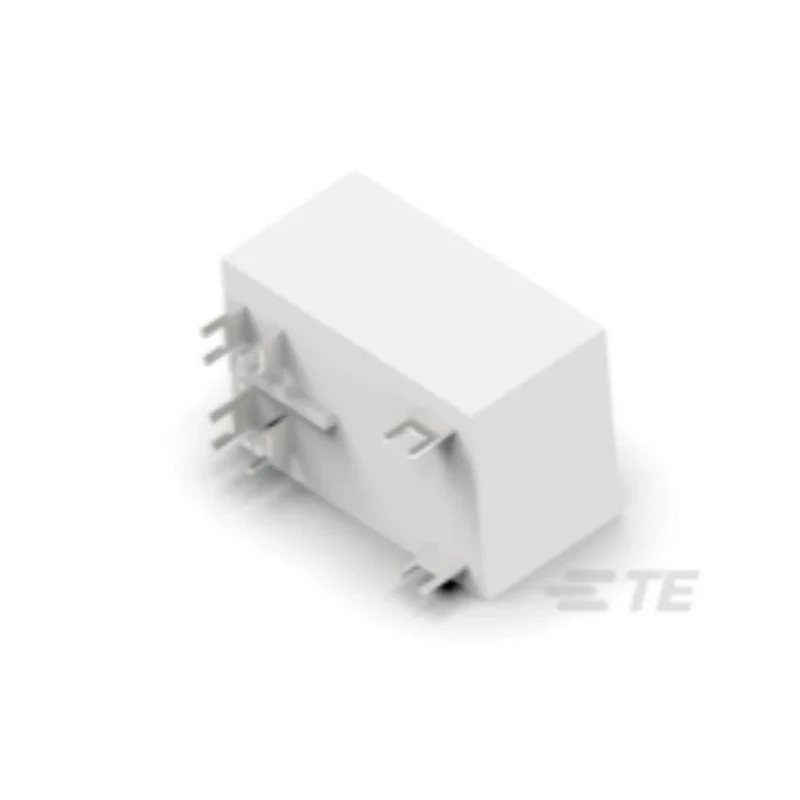

TE Connectivity PCB Power Relay 24V dc Coil 50A Switching Current DPST 6-1423008-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 30.7mm |
| Length | 52.3mm |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 50A |
| Terminal type | PCB Pin |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 344Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.7W |
Key Features
- Features a double pole single throw (DPST) contact configuration.
- Has a coil voltage rating of 24V dc with 1.7W coil power consumption.
- Switching current up to 50A with AC voltage rating of 277V ac.
- Mount type is PCB with PCB pin terminals for easy integration.
- Constructed with silver alloy contact material for durability and conductivity.
- Operating temperature ranges from -55°C to +85°C for versatile environmental use.
- Designed as a standard monostable type relay with plastic dust cover enclosure.
- Conforms to IEC 61810 standard and RoHS compliance for safety and environmental standards.
Product Description
TE Connectivity 6-1423008-7 PCB Power Relay is a robust and reliable component designed for industrial and electronic power switching applications requiring 24V dc coil voltage and a high switching current capacity of 50A. This DPST (double pole single throw) relay uses a silver alloy contact material to ensure excellent conductivity and durability. Its coil power rating is 1.7W with a coil resistance of 344Ω, providing efficient electromagnetic operation.
The relay is PCB mounted using PCB pin terminals, making it suitable for printed circuit board assembly in automation, industrial controls, and power management systems. It features a compact form factor measuring 52.3mm in length, 34.5mm in width, and 30.7mm in height, housed in a plastic dust cover enclosure for protection against contaminants.
Engineered to operate under a wide temperature range from -55°C to +85°C, it is suitable for demanding industrial environments. The relay meets IEC 61810 safety standards and RoHS environmental regulations, ensuring compliance with global manufacturing requirements.
This relay's switching capability handles up to 50A current at 277V AC, making it ideal for heavy load switching in electronic circuits, industrial machinery, HVAC systems, and power distribution panels. The monostable coil type provides a reliable magnetic system for switching without latching.
Double pole single throw (DPST) contact configuration. 24V dc coil voltage with 1.7W power consumption. 50A switching current and 277V AC switching voltage. PCB mount with PCB pin terminals for easy installation. Silver alloy contact material for high conductivity.
Operating temperature from -55°C to +85°C. Compact size: 52.3mm x 34.5mm x 30.7mm. Plastic dust cover enclosure for protection. Complies with IEC 61810 and RoHS standards.
This TE Connectivity Power Relay model 6-1423008-7 is suitable for electronics manufacturing, industrial automation, electrical controls, and power management applications where high current switching and reliability are critical.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this power relay is 24V DC.
This model can handle a maximum switching current of 50A.
It features a double pole single throw (DPST) contact configuration.
The relay has an AC voltage rating of 277V AC for switching applications.
The coil power consumption is 1.7W.
The relay measures 52.3mm in length, 34.5mm in width, and 30.7mm in height.
It operates within a temperature range of -55°C to +85°C.
The contacts are constructed from silver alloy material, which ensures good conductivity.
This relay is designed for PCB mounting and features PCB pin terminals for easy installation.
It conforms to IEC 61810 standards and is RoHS compliant.
This model is classified as a standard monostable type relay.
It is suitable for industrial automation, electrical controls, and power management applications requiring high current switching.
