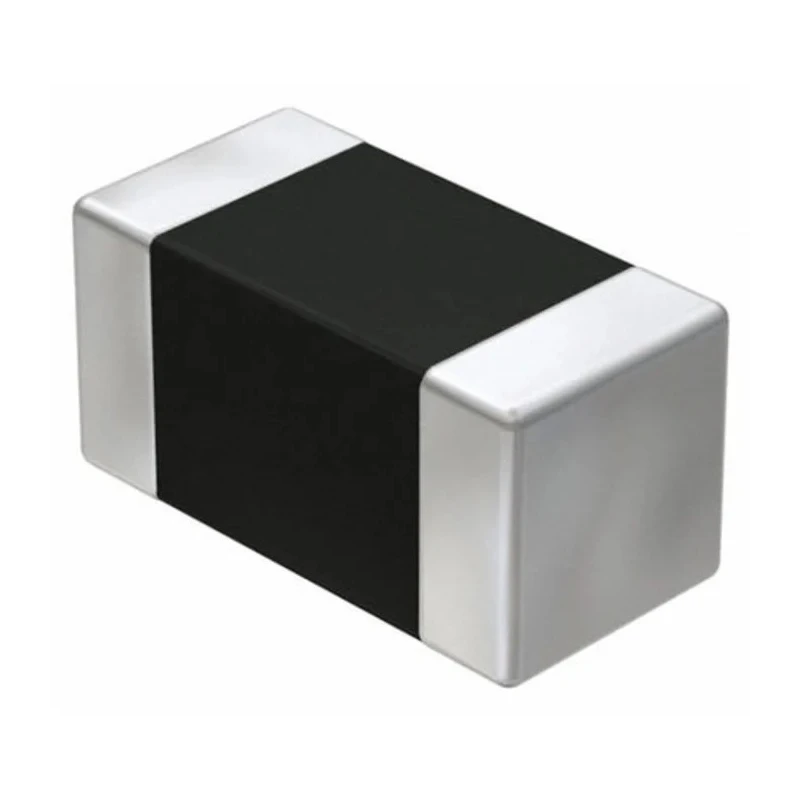

Wurth Elektronik 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core AEC-Q200, 3 A Idc WE-CBF 742792113

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core AEC-Q200, 3 A Idc WE-CBF 742792113

Name: Wurth Elektronik 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core AEC-Q200, 3 A Idc WE-CBF 742792113
Brand: Wurth Elektronik
SKU: 394780
Price: 0.25 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Height	1.1mm
Length	3.2mm
Depth	1.6mm
Packaging	Tape & Reel
Series	WE-CBF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Standards/Approvals	IPC/JEDEC J-STD-020D
Package/Case	1206
Maximum DC Current	3A
Pin Count	2
Maximum DC Resistance	30mΩ
Termination Style	Surface Mount
Inductor Construction	Multilayer
Automotive Standard	AEC-Q200
High Current	Current supply, DC/DC converter etc
Wide Band	Control signals, RS232, RS422, DC/DC converter, etc

Key Features

This multilayer inductor features shielded construction for excellent anti-EMI properties.
It has a ferrite core, ensuring low DC resistance of 30 milliohms for efficient operation.
Packaged in a 1206 case size with tape and reel packaging suitable for automated assembly.
Rated for operation in temperatures from -55°C to 125°C, meeting IPC/JEDEC J-STD-020D standards.
Automotive standard AEC-Q200 certified, ensuring ruggedness and durability.
Ideal for data line filtering, voltage de-coupling, and current supply in USB 2.0, IEEE 1394, LVDS, and DC/DC converter circuits.
Features Ni-Sn electrodes providing reliable surface mount termination.
Compact dimensions of 3.2 mm length, 1.1 mm height, and 1.6 mm depth for space-constrained PCB layouts.

Product Description

Wurth Elektronik 742792113 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core is a robust and compact power inductor designed to handle maximum DC current of 3 A with excellent electrical performance. This multilayer construction device provides high-speed signal filtering and voltage stabilization with minimal electromagnetic interference, conforming to automotive-grade AEC-Q200 standards.

The inductor measures 3.2 mm in length, 1.1 mm height, and 1.6 mm depth, making it suitable for modern surface-mounted PCBs where space and efficiency are critical. It employs a ferrite core and shielded layers to reduce EMI, and Ni-Sn electrodes ensure stable solder connections.

Operating temperature range is extended from -55°C to 125°C, complying with IPC/JEDEC J-STD-020D for reliability in harsh environments. Its tape and reel packaging supports automated placement systems, enhancing production efficiency.

This inductor series (WE-CBF) is optimized for applications such as USB 2.0, IEEE 1394 interfaces, LVDS, control signals, RS232, RS422 communication lines, and DC/DC converters, where low resistance and stable current delivery are crucial.

This multilayer inductor offers superior anti-EMI shielding for noise-sensitive circuits. Low maximum DC resistance of 30 milliohms enhances power efficiency. Automotive certified AEC-Q200 ensures high quality and durability.

Compact 1206 package size supports small form factor electronic designs. Wide operating temperature range suits diverse industrial and automotive conditions. Recommended for high current and high-speed data applications.

Reliable Ni-Sn electrode terminations enhance solder joint stability. Suitable for control, signal filtering, and power supply modules.

Country of origin is Taiwan, Province of China. This product is new and ideal for electronic manufacturing, automotive electronics, industrial control systems, communications equipment, and automotive applications.
