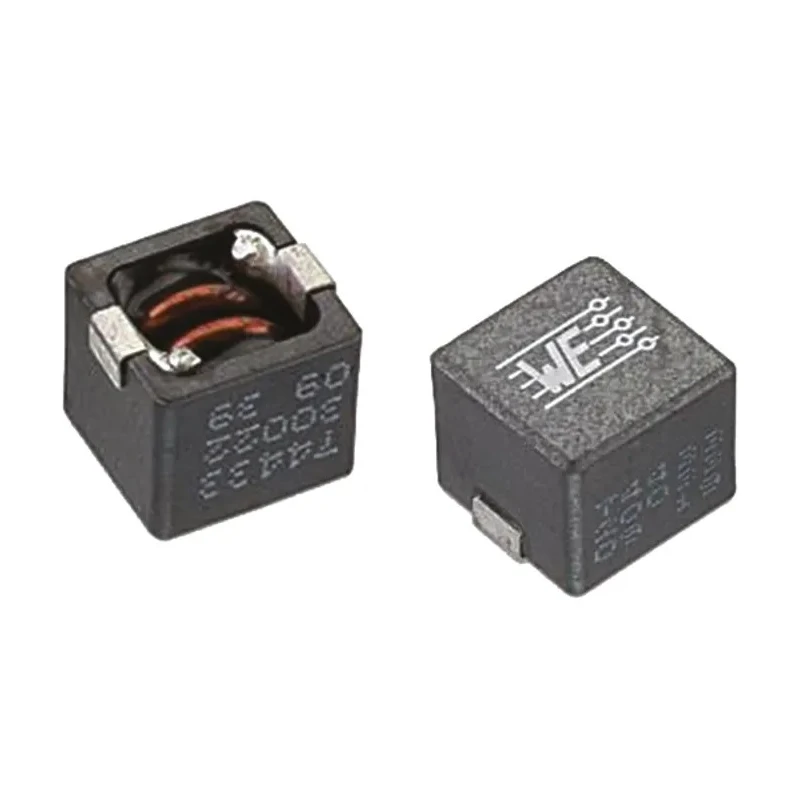

Wurth Elektronik WE-HCC 1090 Shielded Wirewound Surface Mount Inductor 8.2 μH ±20% 11.5 A IDC 7443330820
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 9.3mm |
| Length | 10.9mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-HCC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 8.2μH |
| Package/Case | 1090 |
| Maximum DC Current | 11.5A |
| Maximum DC Resistance | 13.2mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 36MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3 | 2013 |
Key Features
- The WE-HCC 1090 package provides a compact surface mount form factor.
- Magnetically shielded wirewound construction enhances performance in high-current applications.
- Operates reliably between -40°C and 125°C temperatures.
- Maximum DC resistance is 13.2 milliohms ensuring low power loss.
- Has a maximum self-resonant frequency of 36 MHz suitable for high-frequency circuits.
- Meets AEC-Q200 automotive standard for quality and reliability.
- Compliant with RoHS, REACH, JEDEC JS709B and other relevant standards.
- Termination style is surface mount for automated assembly compatibility.
Product Description
Wurth Elektronik 7443330820 WE-HCC series shielded wirewound Surface Mount Inductor features an 8.2 microhenry inductance with ±20% tolerance and a high saturation current of 11.5 amperes. It is constructed using a ferrite core encapsulated by a magnetic shield to prevent electromagnetic interference, making it ideal for demanding power electronics applications.
This compact 1090 package inductor measures 10.9 mm in length, 9.3 mm in height, and 10 mm in depth, enabling integration into high-density PCB layouts. Its low DC resistance of 13.2 milliohms ensures minimal power losses over extended operation.
The component operates reliably within a temperature range of -40 to 125 degrees Celsius, complying with automotive industry quality standards AEC-Q200. It is manufactured to meet RoHS and REACH directives, as well as JEDEC and IPC/JEDEC standards, assuring environmental and performance compliance.
The WE-HCC inductors are typically applied in high-current DC/DC converters, motherboards, graphic cards, industrial computers, polyphase-switching regulators, and other switching power supply circuits, offering stable inductance performance and high saturation current capacity.
The magnetically shielded design minimizes EMI effects in compact electronic assemblies. The surface mount termination style supports automated pick-and-place assembly on modern production lines. Packaging on tape and reel streamlines manufacturing efficiency and reduces handling damage.
This inductor represents a robust solution for industrial, automotive, and commercial electronics requiring reliable high-current filtering and energy storage components. The product is made in China and is backed by Wurth Elektronik’s engineering expertise.
Explore EnvMart's extensive range of inductors and related electronic passive components for your high-performance design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 8.2 microhenries (μH) with a tolerance of ±20%.
It has a maximum DC current rating of 11.5 amperes (A).
The inductor measures 10.9 mm in length, 9.3 mm in height, and 10 mm in depth.
The maximum operating temperature for this inductor is 125 degrees Celsius.
The minimum operating temperature is -40 degrees Celsius.
The maximum DC resistance is 13.2 milliohms (mΩ).
The maximum self-resonant frequency is 36 megahertz (MHz).
It features a wirewound construction with a ferrite core and is magnetically shielded.
It meets AEC-Q200 automotive standards and is compliant with RoHS, REACH, and JEDEC standards.
The termination style is surface mount, which is compatible with automated assembly processes.
It is typically applied in high-current DC/DC converters, motherboards, graphic cards, and switching power supply circuits.
The inductor is packaged on tape and reel, facilitating efficient manufacturing and assembly.
