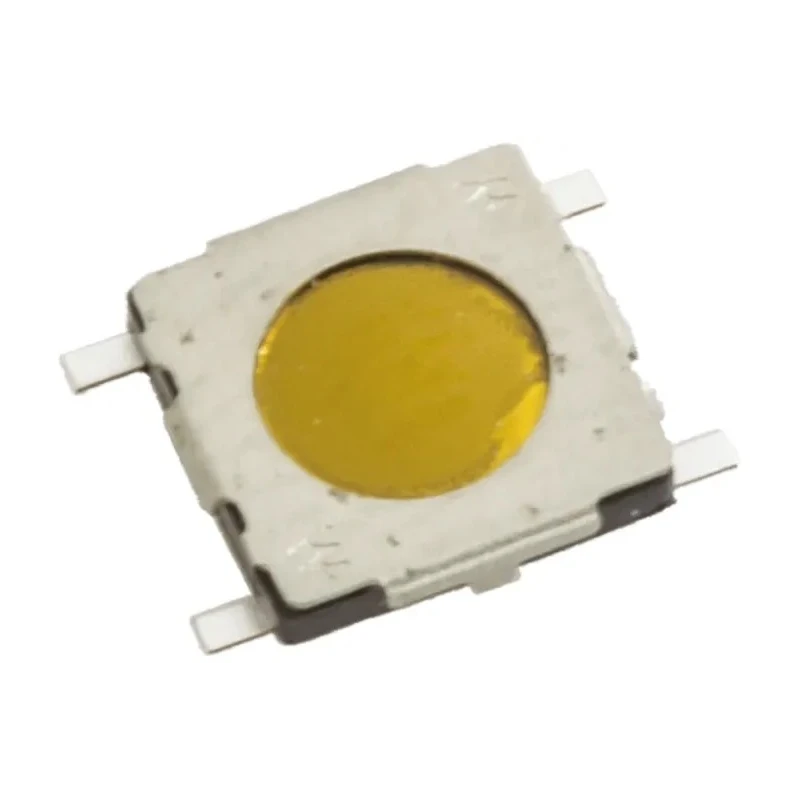

Wurth Elektronik Yellow Tactile Switch SPST 20mA 15V dc Surface Mount 431151008826

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Yellow Tactile Switch SPST 20mA 15V dc Surface Mount 431151008826

Name: Wurth Elektronik Yellow Tactile Switch SPST 20mA 15V dc Surface Mount 431151008826
Brand: Wurth Elektronik
SKU: 393400
Price: 61.33 INR
Availability: InStock



Category Tactile Switch Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	800μm
Length	5mm
Width	5mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Yellow
Contact DC Voltage	15V dc
Actuator Style	Tactile
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	2.55N
Mechanical Life	200000Cycles

Key Features

The switch features a tactile actuator style with a straight orientation and yellow actuator color.
The switch has an operating force of 2.55N ensuring precise tactile feedback.
Designed for a mechanical life of 200000 cycles, it offers durability in demanding environments.
Operates reliably within a temperature range from -40°C to +85°C.
Constructed with a copper alloy cover and stainless steel contacts with silver cladding.
The mounting type is surface mount, suitable for compact electronic assemblies.
Complies with RoHS standards ensuring environmental compliance.

Product Description

Wurth Elektronik 431151008826 Yellow Tactile Switch is a high-quality, single-pole single-throw (SPST) momentary switch designed for surface mount applications. It supports a contact DC voltage of 15V and a switch contact current of 20mA, making it suitable for low power electronic circuit inputs and control functions.

The switch features a yellow tactile actuator with a straight orientation that offers a satisfying mechanical feedback for precise user input. Its compact dimensions of 5mm length and width, coupled with a low profile height of 800μm, make it ideal for applications where space is limited.

The tactile switch operates with a force of 2.55N and boasts a mechanical life of 200000 cycles, providing reliable operation over prolonged usage. It functions efficiently across a wide temperature range from -40°C to +85°C, making it suitable for industrial, commercial, and consumer electronics applications.

Constructed with a robust copper alloy cover and stainless steel contacts plated with silver, the switch ensures long-lasting electrical contact integrity. The surface mount design simplifies PCB assembly processes and is compatible with reflow soldering techniques as per JEDEC J-020D-STD standards.

This tactile switch complies with RoHS directives, reflecting Wurth Elektronik's commitment to environmentally friendly manufacturing processes. The switch is ideal for use in electronic devices requiring momentary on-off control inputs, such as keyboards, control panels, and instrumentation.

Its durability and compact size suit applications in industrial automation, instrumentation, telecommunications, and consumer electronics. Package contents typically include a single tactile switch designed for easy mounting on standard PCBs.

Country of origin is China. Wurth Elektronik products support design and mechanical collaboration with available 3D models and schematics. Explore more Tactile Switches and components in the Electronics & Electricals category at EnvMart for your industrial and electronic design needs.
