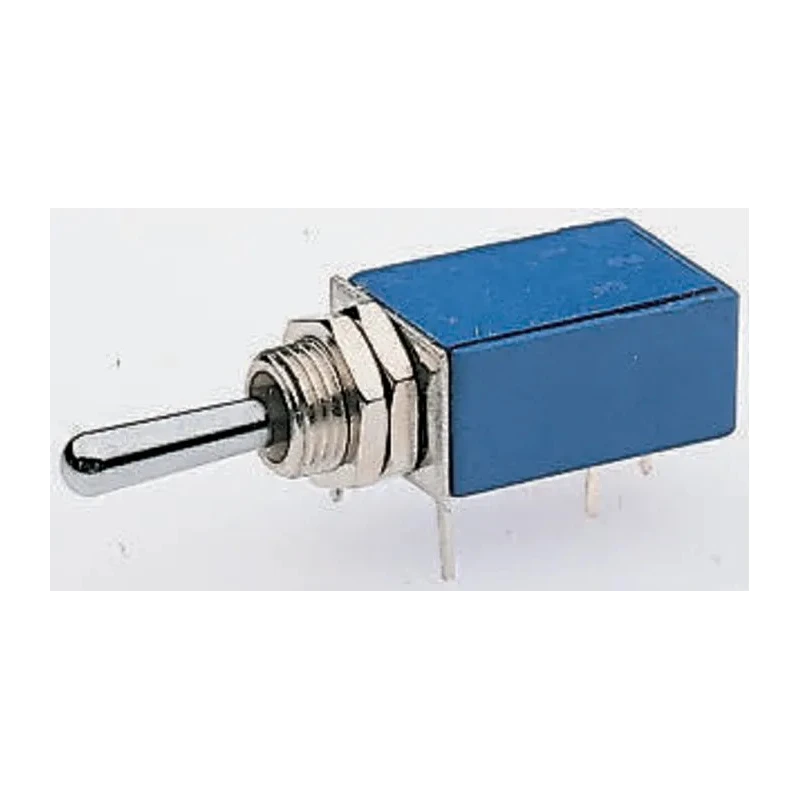

APEM PCB Mount Toggle Switch On-Off-On SPDT Through Hole Terminal 30V DC 125V AC 21139NA

APEM 21139NA is a robust PCB Mount Toggle Switch designed for precise On-Off-On SPDT switching in both DC and AC circuits rated up to 30 V DC and 125 V AC respectively. It is ideally suited for industrial, electrical control, and automation applications.

The toggle lever is constructed from chrome plated brass providing durability and corrosion resistance, with an actuator length of 11.5mm ensuring comfortable switching ergonomics. The switch's silver contact system employs self-cleaning wiping technology to maintain reliable electrical connections over extended use.

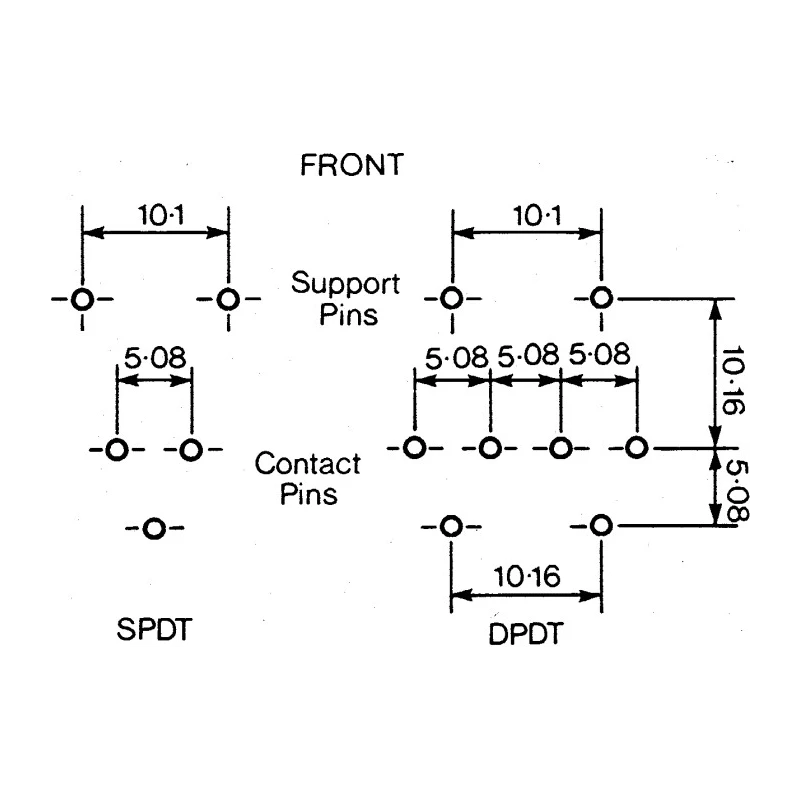

Mounting is designed for through hole PCB terminals arranged on a standard 0.1in pitch grid, facilitating easy integration with printed circuit boards in compact electronic assemblies. Its compact dimensions of 35.5mm height, 11mm length, and 11.3mm width make it adaptable for space-constrained control panels.

The switch supports a mechanical life of 100,000 operations and an electrical life expectancy of 20,000 operations, ensuring long-lasting durability in demanding environments. It operates safely over a wide temperature range of -40°C to 85°C, making it suitable for industrial, automation, and electrical equipment applications with varying ambient conditions.

SPDT contact configuration provides two circuit paths with an On-Off-On switch operation. Panel cutout size is 6.5 mm to accommodate the actuator securely. Electrical current rating is 4A to support typical control circuit power levels.

Minimum load capability ensures functionality even with low power signals. The product is RoHS compliant, confirming adherence to environmental safety standards.

Manufactured in France, the APEM 21139NA toggle switch delivers quality and precision manufacturing standards. It is well suited to electrical control systems, industrial machinery, instrumentation panels, and other professional engineering applications requiring reliable Toggle Switching performance.
