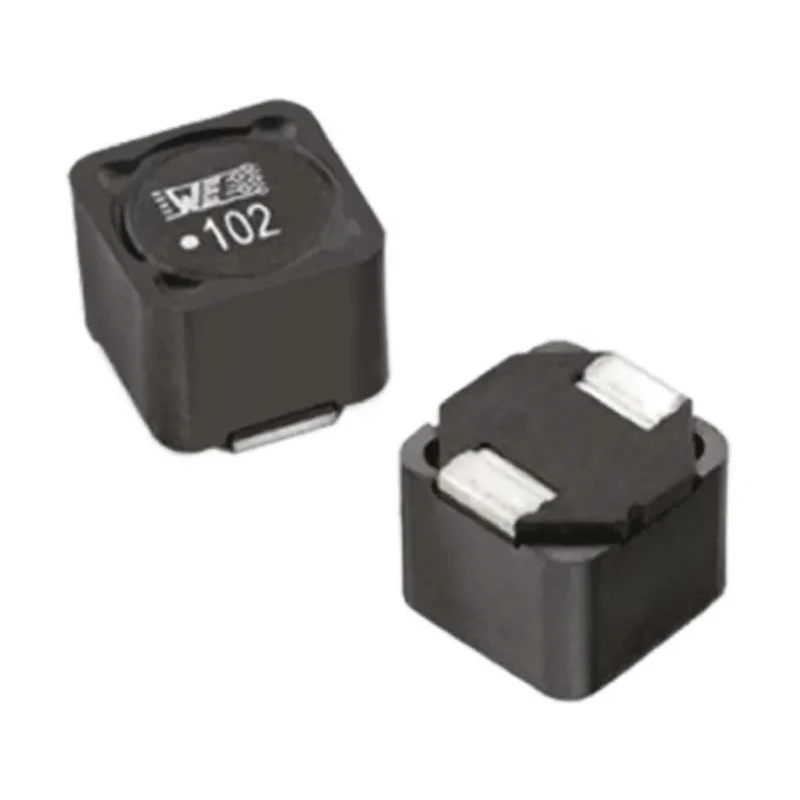

Wurth Elektronik WE-PDHV 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 mH ±20% 430 mA Idc 7687709222
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 10.5mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PDHV |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2mH |
| Standards/Approvals | JEDEC JS709B, RoHS, REACH |
| Package/Case | 1210 |
| Maximum DC Current | 430mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.7Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 0.8MHz |
| Inductor Construction | Wirewound |
Key Features
- Inductor features a ferrite core with wirewound construction for high reliability.
- Shielded design ensures wire protection and reduced magnetic interference.
- Suitable for 430 mA maximum DC current and 400 VDC applications.
- Surface mount termination style in a 1210 size package with tape and reel packaging.
- Operates from -40°C to 125°C with a maximum DC resistance of 3.7 ohms.
- Maximum self-resonant frequency of 0.8 MHz supports efficient filtering performance.
- Complies with JEDEC JS709B, RoHS, and REACH standards for quality and environmental safety.
- Ideal for non-isolated buck or buck-boost converters and constant current LED drivers.
Product Description
Wurth Elektronik 7687709222 WE-PDHV series shielded wirewound surface mount inductor offers a high quality ferrite core design with inductance of 2.2 mH ±20% tolerance, optimized for industrial and electronic power applications. This 1210 package size component is suitable for up to 430 mA DC current and features a magnetically shielded construction for excellent wire protection and reduced electromagnetic interference.
The inductor's surface mount termination style and tape & reel packaging facilitate easy and efficient PCB assembly in manufacturing environments. Operating temperature range from -40°C to 125°C ensures robust performance in challenging conditions, while a maximum DC resistance of 3.7 ohms supports reliable power delivery.
This component complies with JEDEC JS709B, RoHS, and REACH standards, making it suitable for environmentally conscious electronic designs. The self-resonant frequency is rated at 0.8 MHz, supporting effective filtering needs in power supply circuits.
Typical industrial applications include non-isolated buck or buck-boost converters, constant current LED drivers, utility metering, and power supply filters. Wurth Elektronik's WE-PDHV inductors provide magnetically shielded, reliable performance for demanding surface mount solutions in sectors such as industrial electronics, manufacturing, and telecommunications.
Inductor features a ferrite core with wirewound construction for high reliability. Shielded design ensures wire protection and reduced magnetic interference. Suitable for 430 mA maximum DC current and 400 VDC applications.
Surface mount termination style in a 1210 size package with tape and reel packaging. Operates from -40°C to 125°C with a maximum DC resistance of 3.7 ohms. Maximum self-resonant frequency of 0.8 MHz supports efficient filtering performance.
Complies with JEDEC JS709B, RoHS, and REACH standards for quality and environmental safety. Ideal for non-isolated buck or buck-boost converters and constant current LED drivers. Explore more Surface Mount Inductors and power inductors from Wurth Elektronik to meet your electronic component needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 mH with a tolerance of ±20%.
It is suitable for a maximum DC current of 430 mA.
This inductor operates within a temperature range of -40°C to 125°C.
The maximum DC resistance is 3.7 ohms.
The maximum self-resonant frequency is rated at 0.8 MHz.
The dimensions are 12 mm in length, 12 mm in depth, and 10.5 mm in height.
It features a ferrite core material.
This model has a surface mount termination style.
It is packaged in tape and reel format.
It complies with JEDEC JS709B, RoHS, and REACH standards.
Typical applications include non-isolated buck or buck-boost converters and constant current LED drivers.
The construction type is wirewound, which enhances its reliability.
