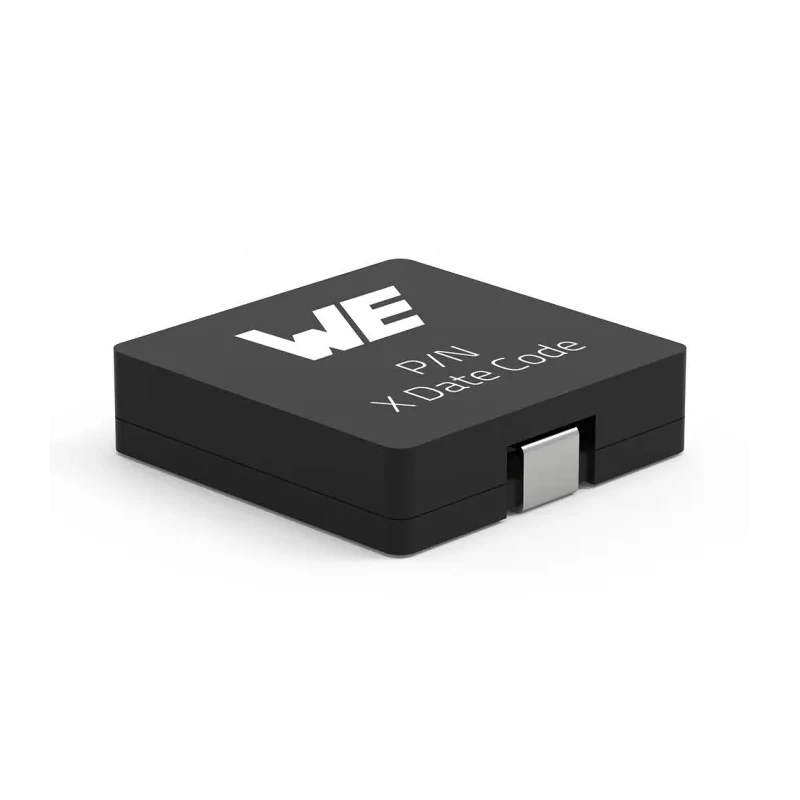

Wurth Elektronik WE-HCI 2212 Shielded Wirewound Surface Mount Inductor with Manganese Zinc Ferrite Core 8.2μH 74435580820
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 12mm |
| Length | 22.5mm |
| Depth | 22mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 8.2μH |
| Standards/Approvals | JEDEC JS709B, IEC 61249-2-21, REACH, RoHS |
| Package/Case | 2212 |
| Maximum DC Current | 25.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 2.7mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 17MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor features a flat wire winding construction and is magnetically shielded to reduce stray fields.
- It has a package size of 2212 with dimensions 22.5mm length, 12mm height, and 22mm depth.
- Maximum DC resistance is low at 2.7mΩ ensuring efficient current flow.
- Designed for surface mount with tape and reel packaging suitable for automated assembly.
- Certified to automotive standard AEC-Q200 and complies with JEDEC JS709B, IEC 61249-2-21, REACH, and RoHS standards.
- Operating temperature range is from -40°C up to 125°C.
- The core material is manganese zinc ferrite enabling high performance at frequencies up to 17MHz.
Product Description
Wurth Elektronik model 74435580820 is a high-quality shielded wirewound surface mount inductor featuring an 8.2μH inductance and a robust manganese zinc ferrite core. This component is engineered for demanding electronic applications including industrial computers, laptops, graphic cards, motherboards, and DC-DC converters. The flat wire winding and magnetic shielding minimize stray fields, ensuring reliable performance in high current switching and polyphase switching regulators.
Measuring 22.5mm in length, 12mm in height, and 22mm in depth, this Surface Mount Inductor fits package 2212 and is supplied in tape and reel packaging for efficient machinery insertion and production line use. The device boasts a maximum DC current rating of 25.5A and a very low DC resistance of 2.7mΩ, delivering excellent efficiency.
Compliance with AEC-Q200 automotive standards and certifications such as JEDEC JS709B, IEC 61249-2-21, REACH, and RoHS affirm its quality and safety for various electronic, industrial, and automotive applications. The inductor operates reliably in temperature ranges from -40°C to 125°C while offering a maximum self-resonant frequency of 17MHz.
The flat wire winding construction optimizes inductance and thermal handling. Magnetically shielded design reduces interference and enhances signal integrity. High current capacity of 25.5A suits demanding power electronics environments.
Low DC resistance supports energy-efficient circuit designs. Packaging on tape and reel facilitates automated surface mount technology assembly. Manufactured in China with strict quality controls.
This inductor series is essential for applications in electronics manufacturing, industrial computing, automotive electronics, and power regulation systems. Its combination of compact size, durability, and high-performance materials makes it suitable across commercial and industrial sectors. Explore more inductors from Wurth Elektronik and related electronic components via EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 8.2μH.
It has a maximum DC current rating of 25.5A.
This inductor measures 22.5mm in length, 12mm in height, and 22mm in depth.
The maximum operating temperature is 125°C.
It complies with AEC-Q200, JEDEC JS709B, IEC 61249-2-21, REACH, and RoHS standards.
This model features a flat wire winding construction.
The maximum self-resonant frequency is 17MHz.
It is packaged in tape and reel format, suitable for automated assembly.
The core material is manganese zinc ferrite.
The maximum DC resistance is 2.7mΩ.
The operating temperature range is from -40°C to 125°C.
It is designed for use in industrial computers, laptops, graphic cards, motherboards, and DC-DC converters.
