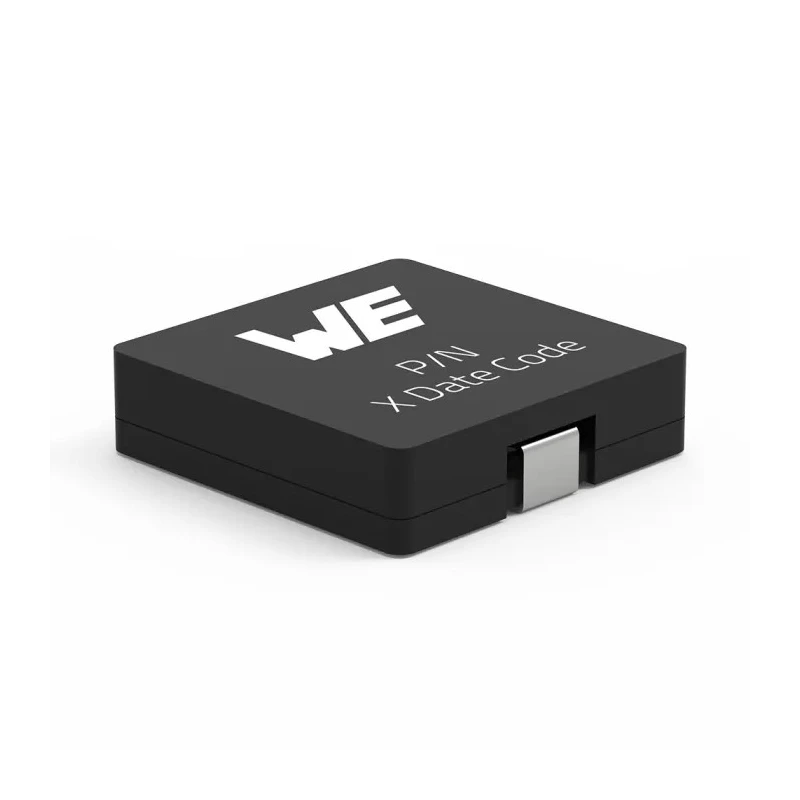

Wurth Elektronik WE-HCI 2212 Shielded Wirewound Surface Mount Inductor with Manganese Zinc Ferrite Core 68 μH 74435586800
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 12mm |
| Length | 22.5mm |
| Depth | 22mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 68μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 2212 |
| Maximum DC Current | 7.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 27.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Flat wire winding construction minimizes stray magnetic fields.
- Magnetically shielded design suitable for dense circuit layouts.
- Manganese zinc ferrite core ensures stable inductance performance.
- Surface mount package type 2212 suitable for automated PCB assembly.
- Low DC resistance of 27.3 milliohms allows efficient power handling.
- Operating temperature range from -40°C to 125°C for industrial ruggedness.
- Compliance with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
- Packaging on tape and reel for streamlined manufacturing processes.
Product Description
Wurth Elektronik 74435586800 WE-HCI series shielded wirewound surface mount inductor offers a robust inductance of 68 microhenries with a flat wire winding and manganese zinc ferrite core, optimized for power electronics applications.
This inductor supports maximum DC currents of 7.5 amperes and withstands operating temperatures from -40 degrees Celsius up to 125 degrees Celsius, ensuring reliability in demanding environments.
The magnetically shielded construction reduces electromagnetic interference, making it ideal for industrial computers, graphic cards, motherboards, and DC-DC converter circuits. Its 2212 surface mount package with low DC resistance of 27.3 milliohms provides efficient power handling and minimal energy loss.
Compliance with industry standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS affirms its quality and environmental safety. Packaged on tape and reel, this component facilitates high volume automated PCB assembly processes.
Flat wire coil winding for reduced stray fields. Magnetically shielded to minimize interference. High current capacity of 7.5A ensures versatile power use. Wide temperature range supports industrial applications. Low DC resistance enhances efficiency.
Compliant with automotive standard AEC-Q200. Manufactured in China maintaining consistent quality. Tape and reel packaging for production efficiency.
This Wurth Elektronik WE-HCI series inductor is suitable for industrial, electronics manufacturing, automotive, and high-performance computing applications requiring reliable, shielded inductors.
Explore more Surface Mount Inductors and components within EnvMart’s Electronics & Electricals category to meet your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Wurth Elektronik WE-HCI 2212 inductor has an inductance value of 68 microhenries (μH).
This inductor can handle a maximum DC current of 7.5 amperes.
It operates within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
The dimensions of this model are 22.5mm in length, 22mm in depth, and 12mm in height.
It features a manganese zinc ferrite core, which contributes to its stable inductance performance.
The maximum DC resistance is 27.3 milliohms, allowing for efficient power handling.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, ensuring quality and environmental safety.
It is packaged on tape and reel, facilitating streamlined manufacturing processes and automated PCB assembly.
The maximum self-resonant frequency of this model is 5 MHz.
It features a surface mount termination style, suitable for automated assembly.
This model is suitable for applications in industrial computers, graphic cards, motherboards, and DC-DC converter circuits.
It has a flat wire winding construction, which minimizes stray magnetic fields and enhances performance.
