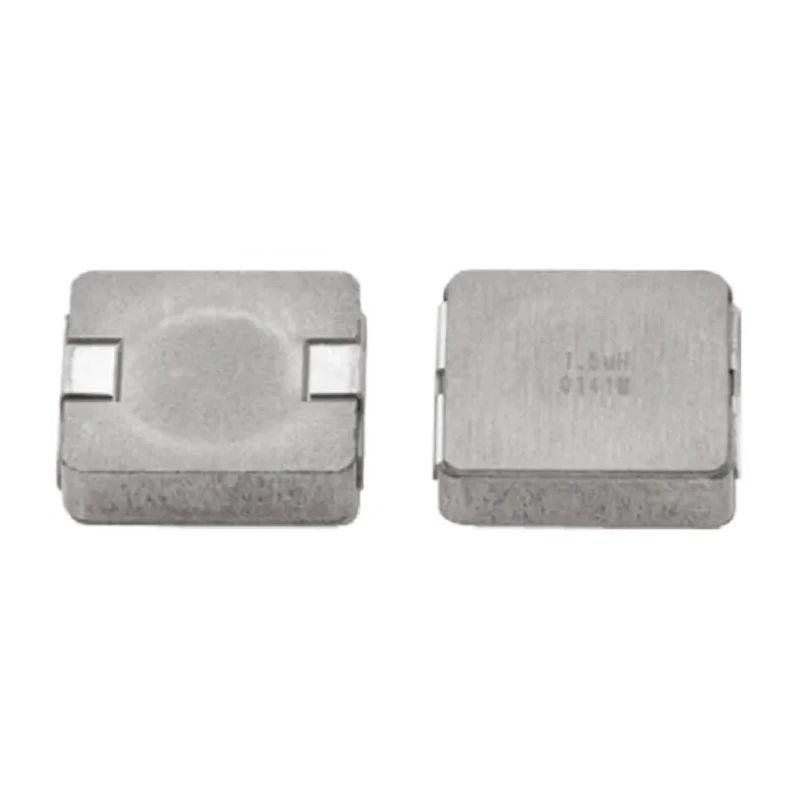

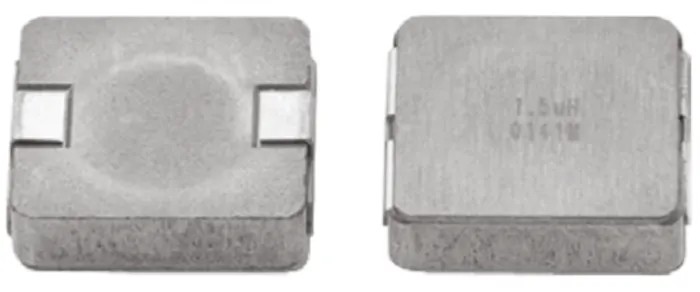

Vishay 5050 Shielded Surface Mount Inductor with Metal Composite Core 8.2 μH ±20% 8.5 A IDC IHLP5050CEER8R2M01

Vishay IHLP5050CEER8R2M01 is a shielded Surface Mount Inductor with a 5050 package size designed for high current applications. Featuring an 8.2 μH inductance with ±20% tolerance and a maximum DC current of 8.5 A, this inductor supports high transient current spikes with minimal saturation and ultra-low buzz noise thanks to its metal composite core construction.

Operating reliably across a wide temperature range from -55°C to 125°C, it has a maximum DC resistance of 28 mΩ which contributes to high energy efficiency. The shielded design helps suppress electromagnetic interference, making it ideal for use in sensitive electronic environments.

This inductor’s maximum self-resonant frequency is 5 MHz, enabling operation in both low and moderately high frequency circuits. Its surface mount termination style suits automated PCB manufacturing, facilitating enhanced production efficiency.

Commonly applied in PDA, notebook, desktop, and server devices, this series is optimized for high current point-of-load converters, low profile power supplies, battery powered devices, and distributed power systems including DC/DC converters for Field Programmable Gate Arrays (FPGAs).

The IHLP-5050CE-01 series inductors comply with RoHS, JEDEC, and IEC standards, ensuring rigorous environmental and quality certifications. The moulded, shielded wire wound construction enhances mechanical stability and reduces acoustic noise making it a reliable choice for industrial, commercial, and electronic component manufacturing sectors.

Compact 5050 package size for space savings on PCB layouts. Metal composite core delivers superior magnetic performance. Wide operating temperature range supports diverse environments. Low DC resistance minimizes power losses in circuits.

Shielded construction reduces electromagnetic interference. Maximum operating frequency up to 5 MHz for versatile applications. Surface mount design compatible with automated assembly lines. Ideal for POL converters and DC/DC power modules.

Certified RoHS, JEDEC, IEC compliant product. Moulded for durability and mechanical strength. Explore the Electronics & Electricals category on EnvMart for more advanced inductors and surface mount components that meet your precise technical requirements.
