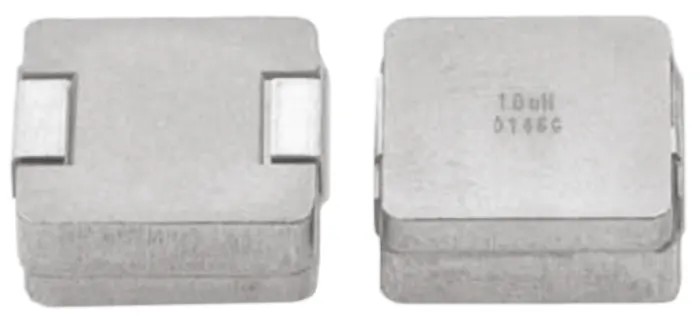

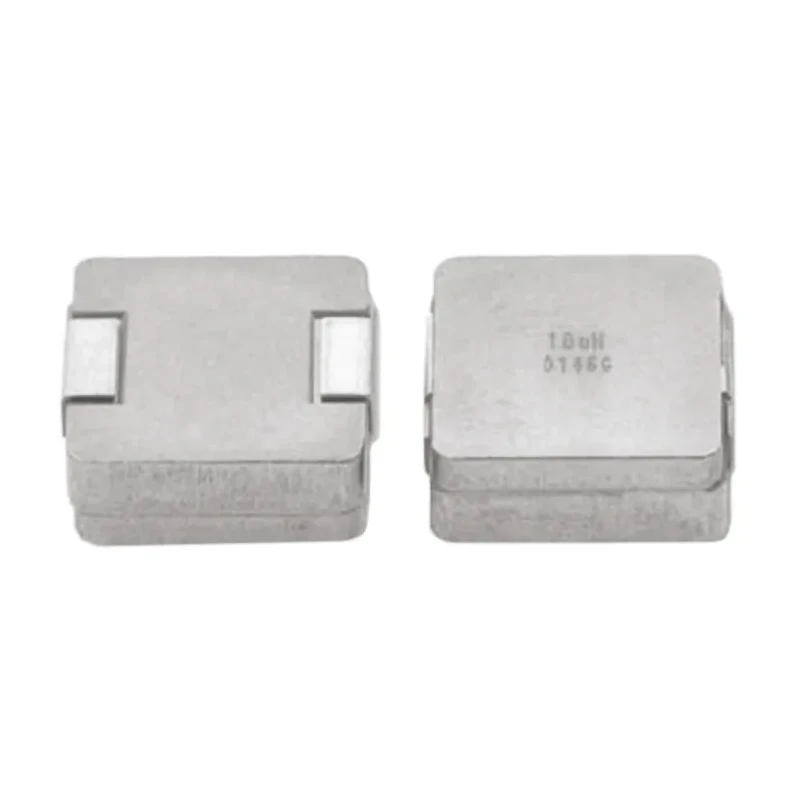

Vishay 5050 Shielded Surface Mount Inductor Metal Composite Core 1 μH ±20% 29 A IHLP5050EZER1R0M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5mm |
| Length | 13.2mm |
| Model | IHLP5050EZER1R0M01 |
| Depth | 12.9mm |
| Packaging | Reel |
| Series | IHLP-5050EZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 29A |
| Maximum DC Resistance | 2.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- Features a shielded inductor construction reducing EMI for sensitive applications.
- Operates reliably between -55°C and 125°C temperature range.
- Has a low DC resistance of 2.5 mΩ ensuring efficient current flow.
- Compact 5050 package size supports surface mount technology for PCB integration.
- Metal composite core supports high transient current without saturation.
- Inductance tolerance is ±20% suitable for general power applications.
- Maximum self-resonant frequency is 5 MHz for stable frequency response.
- Reel packaging facilitates automated assembly and production efficiency.
Product Description
Vishay IHLP5050EZER1R0M01 is a high-current shielded Surface Mount Inductor designed with a robust metal composite core and manufactured for demanding electronics applications.
This component delivers 1 μH inductance with a tolerance of ±20%, supporting a maximum DC current of 29 A, ideal for high current POL converters and low profile, high current power supplies.
Its shielded construction minimizes electromagnetic interference (EMI), ensuring performance stability in sensitive PDA, notebook, desktop, server devices, and battery-powered equipment.
The device features a low DC resistance of 2.5 mΩ and can operate within a wide temperature range of -55°C to 125°C, making it suitable for automotive and industrial applications. The 5050 package size dimensions (length 13.2 mm, height 5 mm, depth 12.9 mm) support surface-mount technology, enabling compact PCB layouts with efficient heat dissipation.
The inductor has a maximum self-resonant frequency of 5 MHz and comes in reel packaging, facilitating automated pick-and-place assembly processes. Shielded magnetic wire-wound choke construction. Metal composite core for high transient current tolerance.
Low buzz noise under load due to composite material. Suitable for DC/DC converters in distributed power systems and FPGA power applications. Conforms to RoHS standards ensuring environmental compliance. These features make the Vishay IHLP5050EZER1R0M01 inductor a reliable choice for industrial, manufacturing, telecommunications, and power electronics sectors.
Explore more industrial-grade inductors and related components on EnvMart to optimize your power and signal design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH with a tolerance of ±20%.
It supports a maximum DC current of 29 A, making it suitable for high current applications.
This unit operates reliably between -55°C and 125°C, suitable for various environments.
The maximum self-resonant frequency is 5 MHz, ensuring stable frequency response.
The dimensions are 13.2 mm in length, 12.9 mm in depth, and 5 mm in height.
It comes in reel packaging, which facilitates automated assembly processes.
The core material is metal composite, which supports high transient current without saturation.
The DC resistance is 2.5 mΩ, ensuring efficient current flow.
It conforms to RoHS standards, ensuring environmental compliance.
This model features a shielded construction, which reduces electromagnetic interference (EMI).
It is suitable for high current POL converters and low profile, high current power supplies.
It belongs to the IHLP-5050EZ-01 series, designed for demanding electronics applications.
