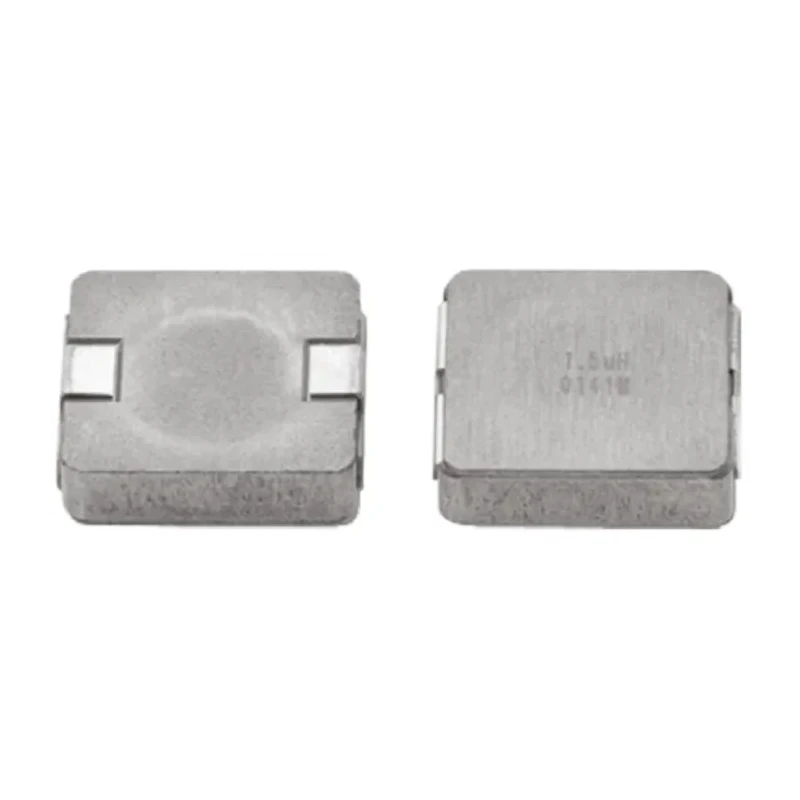

Vishay 5050 Shielded Surface Mount Inductor Metal Composite Core 10 μH ±20 % 7 A Idc IHLP5050CEER100M01

Vishay IHLP5050CEER100M01 is a 5050 shielded surface mount inductor with a metal composite core that offers 10 μH inductance with ±20 % tolerance. It supports a maximum direct current of 7 A, and is constructed as a magnetically shielded wire wound choke to minimize EMI and noise.

This series is designed to handle high transient current spikes without saturation, providing reliable operation even under demanding power conditions. The composite core construction markedly reduces audible buzz noise, enhancing performance in sensitive electronic devices.

Operating temperature ranges from -55°C to 125°C, allowing the inductor to perform in harsh environmental conditions. It has a low maximum DC resistance of 34 mΩ, contributing to power efficiency and reduced heat generation.

With a rated self-resonant frequency of up to 5 MHz, it fits well in high-frequency DC/DC converter circuits including distributed power systems, especially in applications such as PDA, notebook, desktop/server devices, and field-programmable gate arrays (FPGA).

The package dimensions measure 13.2 mm length, 3.5 mm height, and 12.9 mm depth with a surface mount termination style, facilitating automated PCB assembly. It complies with RoHS, JEDEC, and IEC standards, affirming its adherence to quality and safety protocols.

Magnetically shielded wire wound choke construction for EMI reduction. High current handling with low buzz noise. Wide operating temperature range from -55°C to 125°C. Low DC resistance supports power efficiency. High self-resonant frequency up to 5 MHz for fast switching.

Surface mount 5050 case suitable for automated assembly. Compliant with RoHS, JEDEC, and IEC standards.
