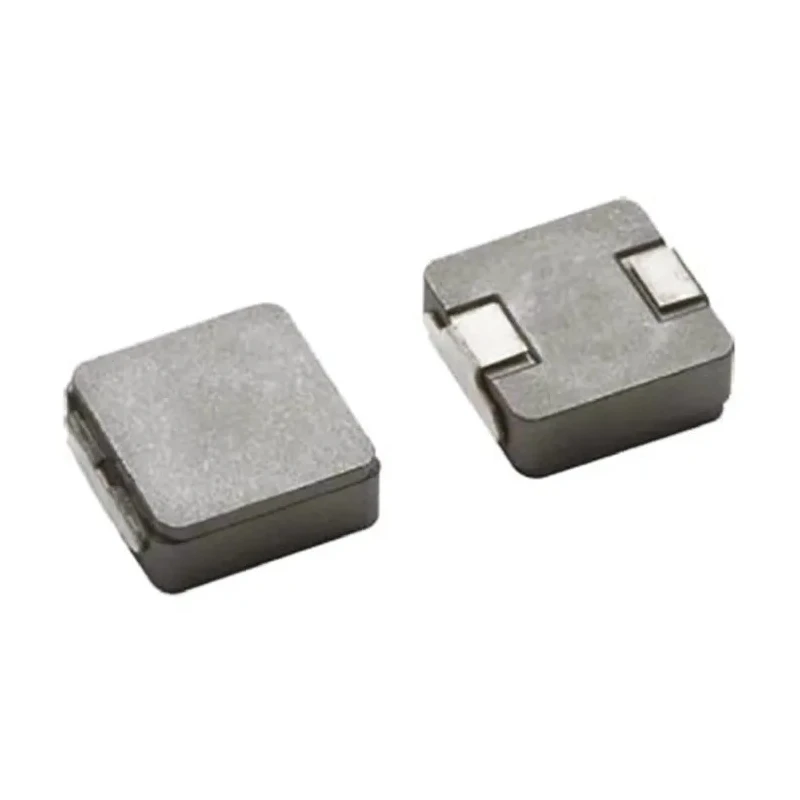

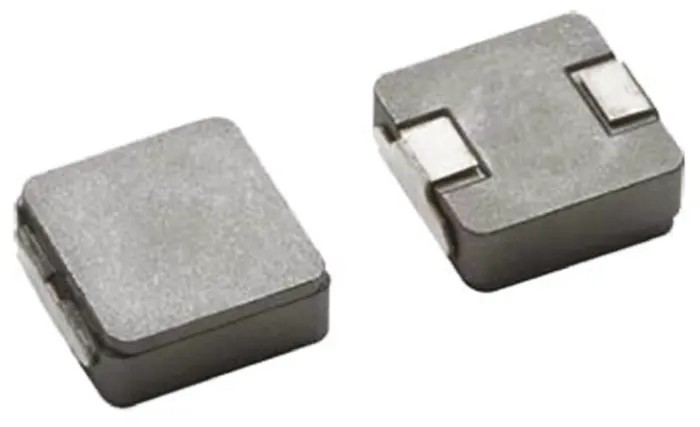

Vishay 4040 Shielded Surface Mount Inductor with Metal Composite Core 2.2 μH ±20% 12 A IHLP4040DZER2R2M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 10.8mm |
| Model | IHLP4040DZER2R2M01 |
| Depth | 10.16mm |
| Series | IHLP-4040DZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 2.2μH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 4040 |
| Maximum DC Current | 12A |
| Maximum DC Resistance | 9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- Designed for surface mount technology with a compact 4040 package size.
- Constructed with a metal composite core ensuring high performance and low noise.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Features shielding to reduce electromagnetic interference for sensitive circuits.
- Maximum DC resistance is low at 9 mΩ enhancing efficiency.
- Maximum self-resonant frequency of 5 MHz supports high-frequency applications.
- Suitable for use in DC/DC converters, POL converters, battery-powered devices, and FPGA power supplies.
- Compliant with JEDEC and RoHS standards for automotive and electronics safety.
Product Description
Vishay IHLP4040DZER2R2M01 4040 Shielded Surface Mount Inductor provides high current handling with a low profile package, ideal for modern electronic applications. The inductor utilizes a metal composite core that contributes to ultra-low buzz noise and tolerance to transient current spikes without saturation.
This inductance component has an inductance value of 2.2 μH ±20%, capable of handling up to 12 A DC current, making it suitable for power management circuits such as DC/DC converters and distributed power systems. The shielded construction minimizes electromagnetic interference, ensuring signal integrity in complex circuit environments.
Operating temperature ranges from -55°C to 125°C, which is ideal for industrial and automotive electronic devices. The package size of 4040 with dimensions of 10.8 mm length, 10.16 mm depth, and 4 mm height fits compact PCB designs.
Low DC resistance of 9 mΩ improves efficiency by reducing power loss, and the component supports frequencies up to 5 MHz, catering to high-frequency switching applications. The termination style is surface mount technology (SMT), and the inductor is moulded for durability and ease of assembly.
This inductor series, IHLP-4040DZ-01, is widely used in applications including PDAs, notebooks, desktop and server devices, low profile and high current power supplies, and battery-powered electronics. It meets industry standards such as JEDEC and RoHS ensuring compliance and reliability.
Designed for surface mount technology with a compact 4040 package size. Constructed with a metal composite core ensuring high performance and low noise. Operates reliably in temperatures ranging from -55°C to 125°C. Features shielding to reduce electromagnetic interference for sensitive circuits.
Maximum DC resistance is low at 9 mΩ enhancing efficiency. Maximum self-resonant frequency of 5 MHz supports high-frequency applications. Suitable for use in DC/DC converters, POL converters, battery-powered devices, and FPGA power supplies.
Compliant with JEDEC and RoHS standards for automotive and electronics safety. Explore more Surface Mount Inductors and electronic components at EnvMart to support your industrial, commercial, and laboratory automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 μH with a tolerance of ±20%.
It can handle a maximum DC current of 12 A.
The dimensions of the 4040 package are 10.8 mm in length, 10.16 mm in depth, and 4 mm in height.
The maximum operating temperature is 125°C.
It is constructed with a metal composite core and features a shielded design to minimize electromagnetic interference.
The maximum self-resonant frequency is 5 MHz, which supports high-frequency applications.
It complies with JEDEC and RoHS standards, ensuring safety and reliability for automotive and electronic applications.
The maximum DC resistance is 9 mΩ, which enhances efficiency by reducing power loss.
This inductor uses a surface mount termination style, suitable for compact PCB designs.
It is suitable for use in DC/DC converters, POL converters, battery-powered devices, and FPGA power supplies.
The inductance tolerance for this model is ±20%.
The shielded construction reduces electromagnetic interference, ensuring signal integrity in sensitive circuits.
