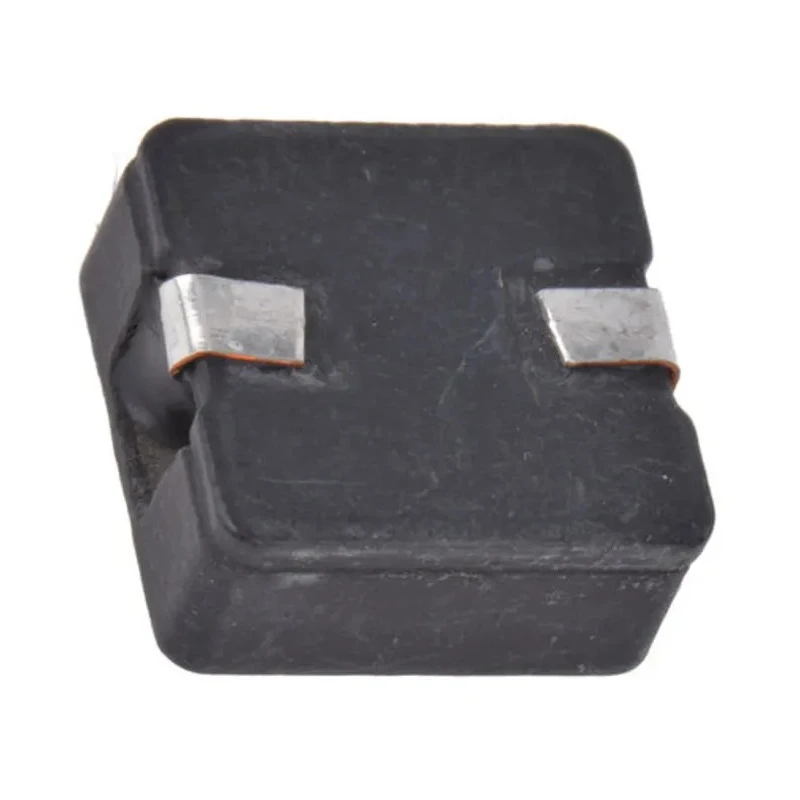

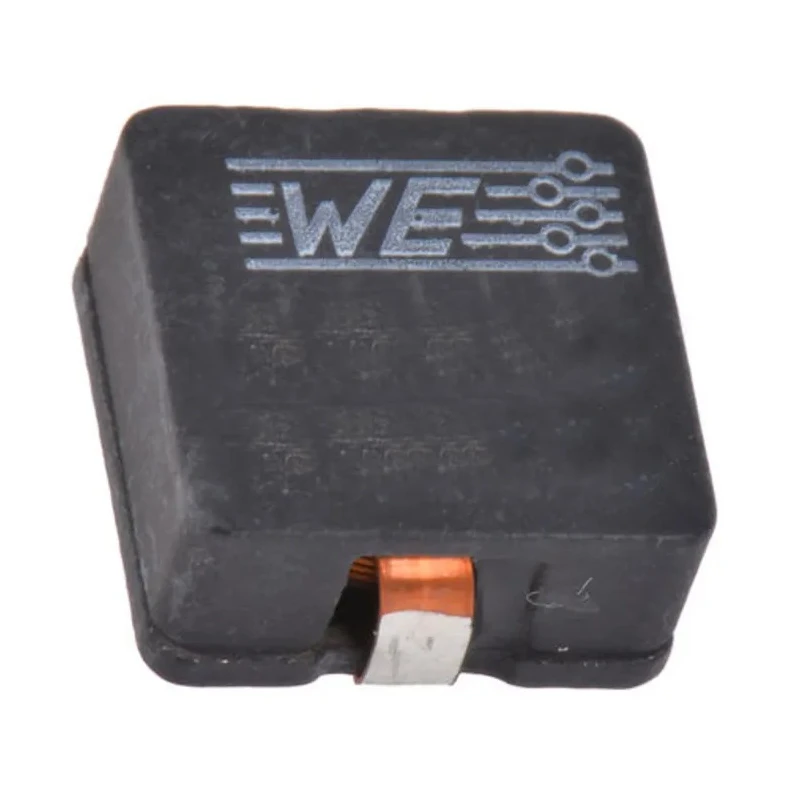

Wurth Elektronik WE-HCI 1890 Shielded Wirewound Surface Mount Inductor with Manganese Zinc Ferrite Core 15 μH 74435571500
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 8.9mm |
| Length | 18.3mm |
| Depth | 18.2mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 15μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS, IEC 61249-2-21 |
| Package/Case | 1890 |
| Maximum DC Current | 14A |
| Pin Count | 2 |
| Maximum DC Resistance | 9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 14MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded wirewound construction provides high performance.
- 15 microhenry inductance suitable for filtering and switching applications.
- Maximum DC current rating of 14 amperes ensures high current capability.
- Flat wire coil design reduces stray magnetic field interference.
- Low DC resistance of 9 milliohms minimizes power loss.
- Package size 1890 with tape and reel packaging for surface mount assembly.
- Operating temperature range from -40°C to 125°C supports automotive applications.
- Compliant with automotive standard AEC-Q200 and industry standards JEDEC JS709B, REACH, RoHS, IEC 61249-2-21.
Product Description
Wurth Elektronik 74435571500 WE-HCI series shielded wirewound surface mount inductor features a manganese zinc ferrite core with a 15 μH inductance and flat wire winding construction suitable for a range of demanding electronic applications.
This inductor offers magnetically shielded wirewound design with very low DC resistance (9 milliohms) and a maximum DC current rating of 14A, making it ideal for industrial computers, laptops, graphic cards, and motherboards where high current and low noise filtering are critical.
The component comes in a 1890 package size with tape and reel packaging designed for fast surface mount technology assembly. It is compliant with automotive AEC-Q200 standards and various environmental and safety regulations including JEDEC JS709B, REACH, RoHS, and IEC 61249-2-21, ensuring reliable performance in automotive and industrial environments.
Operating temperature ranges from -40°C up to 125°C, supporting use in automotive and harsh industrial conditions. The inductor features a manganese zinc ferrite core that enhances magnetic performance while minimizing stray fields via its flat wire coil winding.
This power inductor series supports applications in DC-DC converters, filters, high current switching regulators, and polyphase-switching regulators. The maximum self-resonant frequency of 14 MHz allows use in high frequency circuits.
Magnetically shielded wirewound construction minimizes noise and interference. Compact 1890 package suitable for surface mount technology. High current capacity of 14A with low DC resistance reduces power losses. Flat wire winding design lowers stray magnetic fields for sensitive electronics.
Wide operating temperature range from -40°C to 125°C. Compliance with automotive AEC-Q200 and international standards ensures high reliability. Tape and reel packaging optimized for automated assembly.
This Wurth Elektronik WE-HCI inductor is ideal for use in industrial, automotive, telecommunications, and computing equipment requiring efficient power management and EMI suppression. Browse EnvMart’s extensive catalog of Surface Mount Inductors for compatible components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 15 μH, suitable for filtering and switching applications.
The maximum DC current rating is 14 amperes, allowing it to handle high current applications effectively.
It has dimensions of 18.3 mm in length, 18.2 mm in depth, and a height of 8.9 mm.
The operating temperature range is from -40°C to 125°C, making it suitable for automotive and harsh industrial conditions.
The core material is manganese zinc ferrite, which enhances magnetic performance and minimizes stray fields.
It complies with automotive standard AEC-Q200 and various environmental standards including JEDEC JS709B, REACH, RoHS, and IEC 61249-2-21.
The maximum self-resonant frequency is 14 MHz, allowing for use in high frequency circuits.
The termination style is surface mount, designed for easy integration into PCB assemblies.
It has a low DC resistance of 9 milliohms, which helps minimize power loss.
It is packaged in tape and reel format, optimized for surface mount technology assembly.
It is suitable for applications in DC-DC converters, filters, high current switching regulators, and polyphase-switching regulators.
