Wurth Elektronik WE-PD2 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 68 μH ±10% 990 mA Idc 744775168

Wurth Elektronik 744775168 is a WE-PD2 series unshielded wirewound surface mount inductor featuring a ferrite core and an inductance of 68 μH with a tolerance of ±10%. It supports a maximum DC current of 990 mA, making it ideal for power regulation applications requiring efficient current handling and magnetic performance.

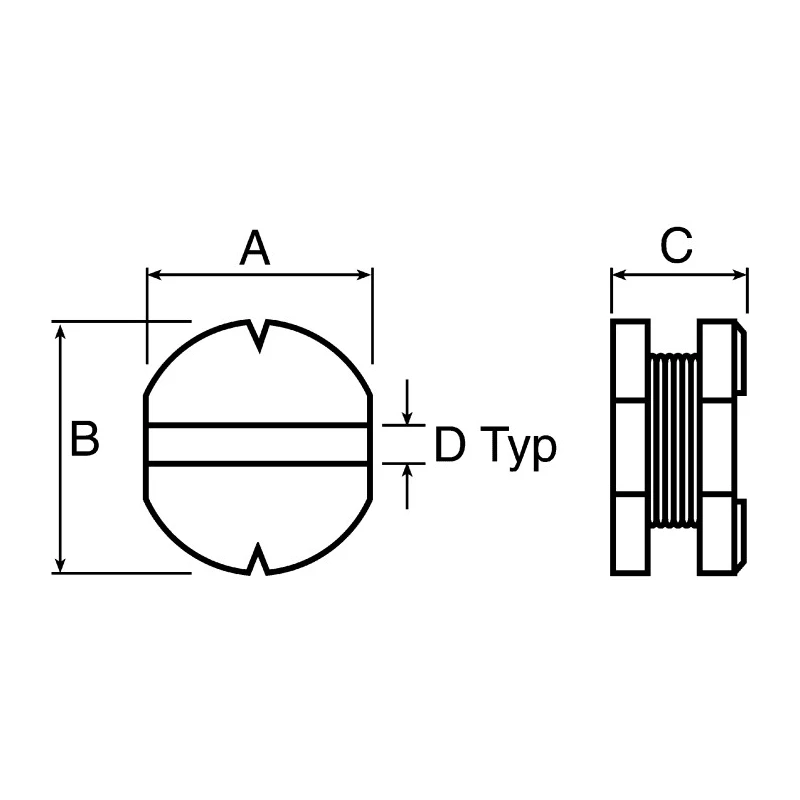

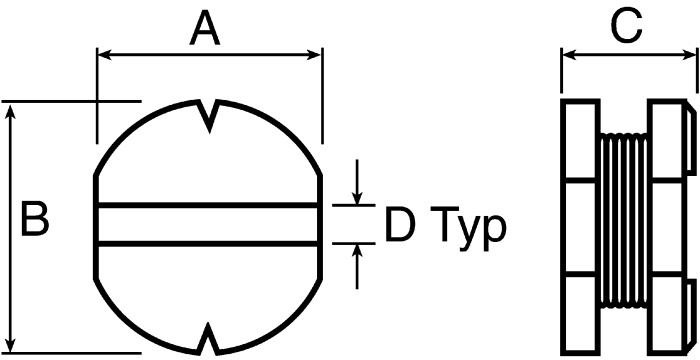

This inductor is constructed using wirewound technology on a ferrite core to provide reliable inductance values and minimal energy loss. Its compact dimensions (length 7.8 mm, height 5 mm, depth 7 mm, diameter 13 mm) and tape and reel packaging facilitate automated surface mount assembly processes, increasing manufacturing efficiency.

The component supports an operating temperature range from -40°C to 125°C and conforms to automotive standard AEC-Q200, making it suitable for automotive and industrial electronics environments. Its maximum DC resistance of 280 milliohms ensures minimal power dissipation during operation.

The maximum self-resonant frequency of 8 MHz allows use in switching regulators with low operating voltages found in devices such as computers, laptops, mobile phones, and pagers. The tin/copper termination style enhances solderability and connection integrity.

This inductor complies with the RoHS directive for environmental safety and is manufactured in China. It is an excellent choice for integrated DC/DC converters and power supplies where reliable inductance and current handling are essential.

Constructed with a ferrite core ensuring stable magnetic properties. Designed for surface mount applications with tape and reel packaging. Maximum DC resistance of 280 milliohms supports efficient current flow. Meets automotive standard AEC-Q200 for reliable operation under harsh conditions.

Operating temperature range from -40°C to 125°C for diverse environments. Compact dimensions suitable for automated PCB assembly: 7.8 mm length, 5 mm height, 7 mm depth. Tin/copper termination style provides reliable solder joints.

Maximum self-resonant frequency of 8 MHz optimized for switching regulator applications. RoHS compliant manufacturing reduces environmental impact.

This product is broadly used in electronics manufacturing for applications including industrial controls, computing devices, mobile communication equipment, and automotive electronics. Its precise inductance and robust design ensure dependable performance in critical power conversion circuits.
