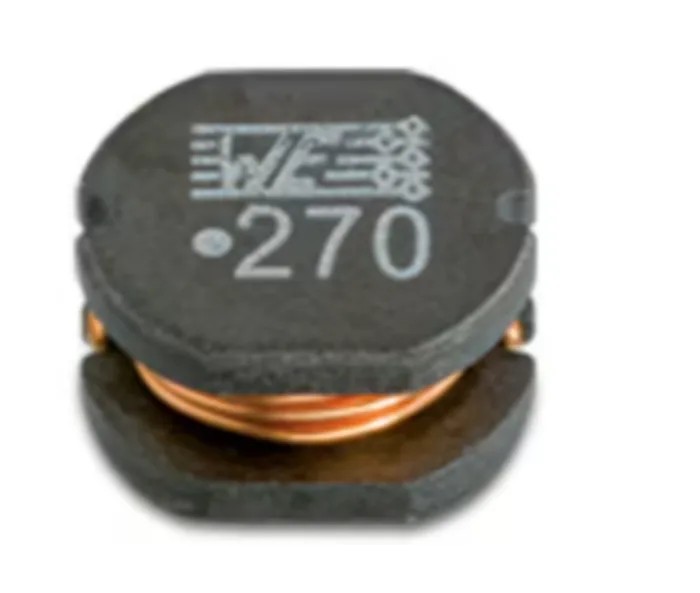

Wurth Elektronik WE-PD2 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±10 % 1.02 A Idc 74477620
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9mm |
| Brand | Wurth Elektronik |
| Height | 5.4mm |
| Length | 9mm |
| Model | 74477620 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B |
| Maximum DC Current | 1.02A |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 7MHz |
| Inductor Construction | Wirewound |
| SMT D10F fixed inductor,100uH 1.05ABrand | NEUTRAL |
Key Features
- Constructed with a ferrite core for stable magnetic performance.
- Offers a maximum DC current of 1.02 A suitable for power applications.
- Designed as a wirewound surface mount inductor for PCB mounting.
- Operates reliably within -40°C to 125°C temperature range.
- Measured inductance at 100 μH with ±10 % tolerance ensuring precision.

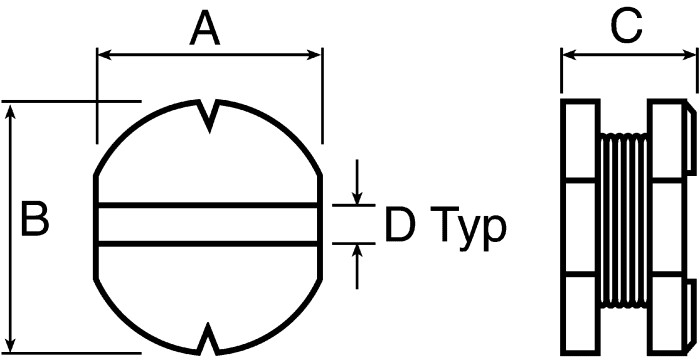

- Compact dimensions of 9 mm diameter and 5.4 mm height for space efficiency.
- Maximum DC resistance is capped at 350 mΩ, minimizing losses.
- Supports a maximum self-resonant frequency of 7 MHz for high-frequency applications.
Product Description
Wurth Elektronik model 74477620 is an unshielded wirewound surface mount inductor featuring a ferrite core designed for efficient power management in electronic circuits. This inductor has an inductance of 100 μH with a tolerance of ±10 % and supports a maximum DC current of 1.02 A, making it suitable for switching regulators, DC/DC converters, and power supply filtering in devices such as computers, laptops, and mobile phones.
The WE-PD2 series inductors offer robust operating temperature ranges from -40°C up to 125°C, ensuring durability in various industrial and commercial environments. Its compact size with a 9 mm diameter, 5.4 mm height, and 10 mm depth allows integration in space-constrained PCB designs. The device’s low DC resistance of 350 mΩ helps minimize power loss, while the 7 MHz maximum self-resonant frequency supports high-frequency switching applications.
This surface mount inductor is packaged in a tape and reel format optimized for automated soldering processes, enhancing manufacturing efficiency. The product complies with RoHS, REACH, and JEDEC JS709B standards, offering assurance of environmental compliance and quality.
Constructed with a ferrite core for stable magnetic performance. Maximum DC current rating of 1.02 A for power applications. Wirewound design suited for surface mount technology. Operating temperature range from -40°C to 125°C.
Inductance tolerance of ±10 % ensuring precise performance. Compact form factor suitable for compact electronic assemblies. Low maximum DC resistance to reduce power loss. Supports frequencies up to 7 MHz for reliable switching regulator operation.
Tape and reel packaging compatible with automated manufacturing. Certified RoHS, REACH, and JEDEC JS709B compliant.
This inductor is ideal for industrial electronics manufacturing, power electronics, telecommunications, and computing devices requiring high efficiency and reliability. Explore more Surface Mount Inductors and components from Wurth Elektronik on EnvMart for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 100 μH with a tolerance of ±10%.
It supports a maximum DC current of 1.02 A, suitable for power applications.
The inductor has a diameter of 9 mm, a height of 5.4 mm, and a depth of 10 mm.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum DC resistance is capped at 350 mΩ, minimizing losses.
This model supports a maximum self-resonant frequency of 7 MHz, making it suitable for high-frequency applications.
It is constructed with a ferrite core, which provides stable magnetic performance.
It is packaged in a tape and reel format, which is optimized for automated soldering processes.
It complies with RoHS, REACH, and JEDEC JS709B standards, ensuring environmental compliance.
This inductor features a surface mount termination style, suitable for PCB mounting.
It is suitable for applications such as switching regulators, DC/DC converters, and power supply filtering in electronic devices.
This inductor is part of the WE-PD2 series from Wurth Elektronik.
