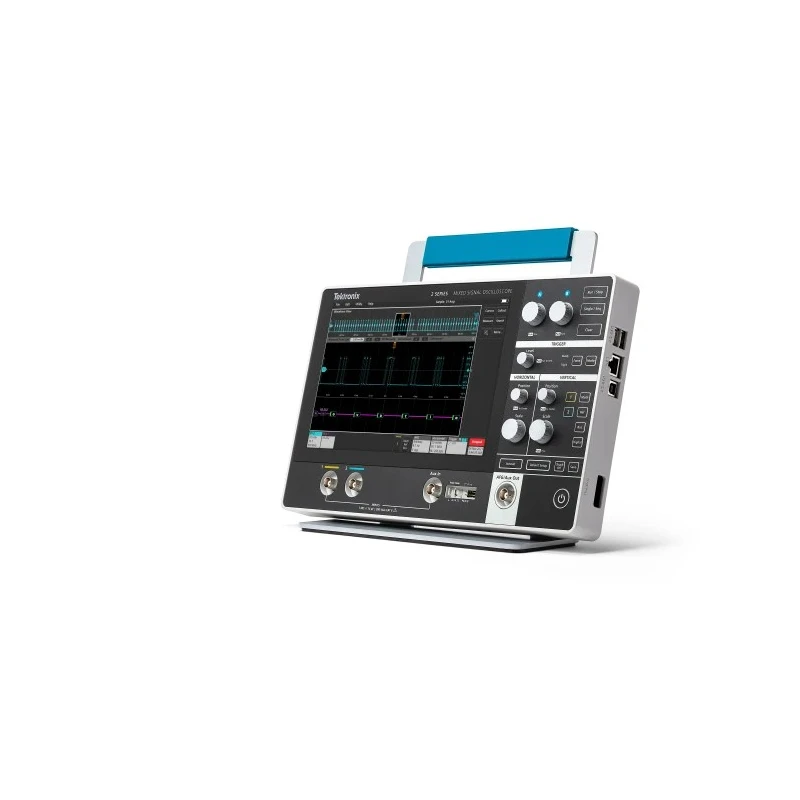

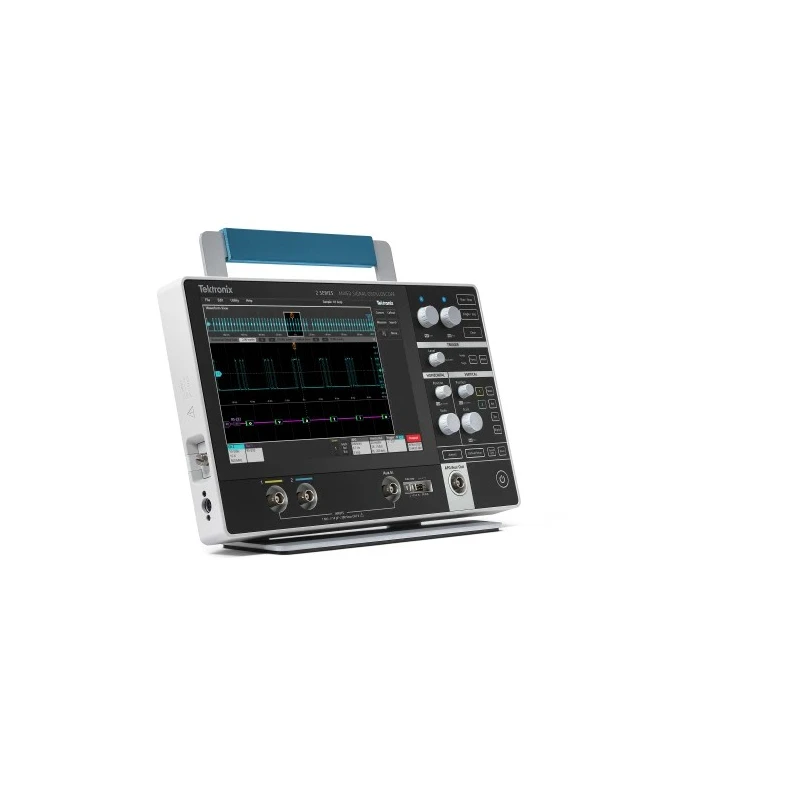

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 200 MHz, 2 Channels, Capacitive Touch Display MSO22 2-BW-200

Tektronix MSO22 2-BW-200, part of the 2 Series MSO Ultra Compact Mixed Signal Oscilloscope line, offers a 200 MHz bandwidth and 2 analog channels packaged in a highly portable and thin form factor measuring 210mm in height, 344mm in width, and 40.4mm in depth. Featuring a 10.1-inch capacitive touch display, the oscilloscope is designed for intuitive and efficient electronic debug and testing in a variety of industrial, laboratory, and field settings.

This model supports a wide range of interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, making it versatile for different communication protocols and signal types encountered in manufacturing, telecommunications, automotive, and research applications.

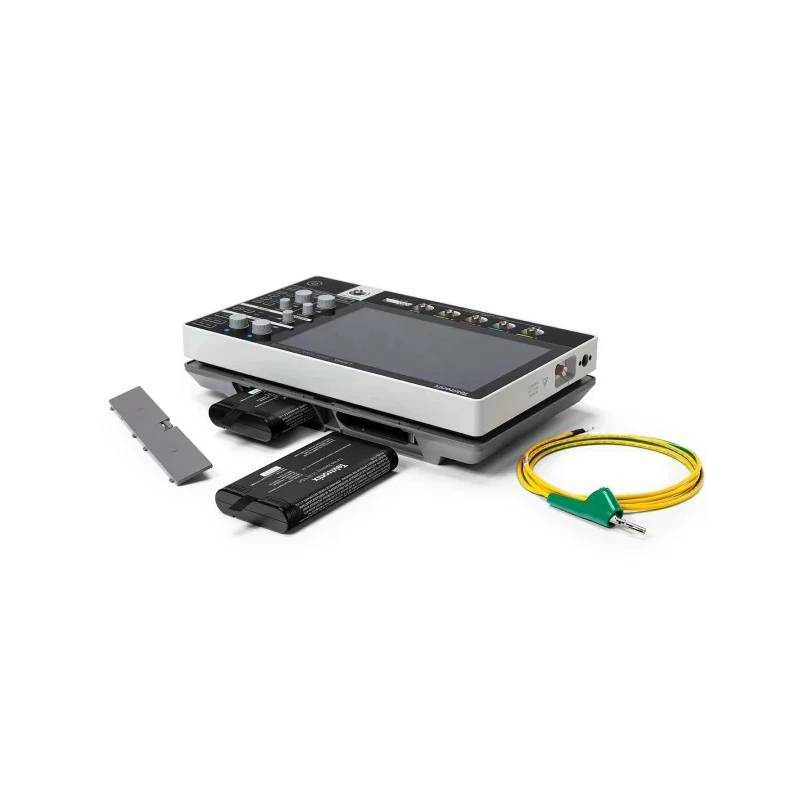

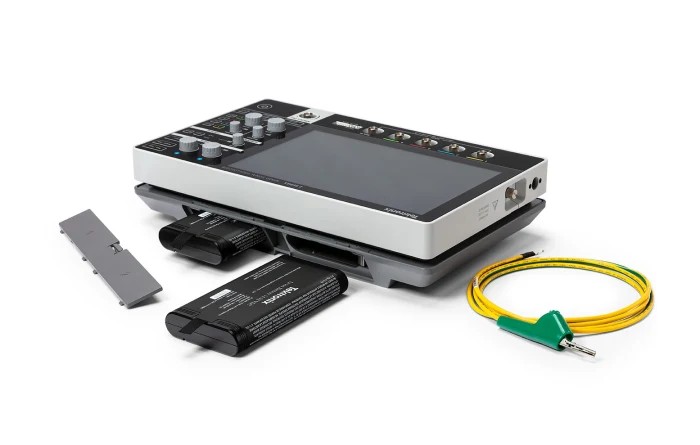

The unit includes an optional lithium-ion battery pack enabling up to 8 hours of unplugged testing with hot-swappable battery capability for extended field use. It comes calibrated with UKAS traceability, ensuring measurement accuracy and compliance with quality standards.

Included in the package are TPP0200 200 MHz 10x probes (one per channel), an instrument stand, external power supply, and detailed installation and safety manuals translated into multiple languages. The instrument weighs 1.8 kg without batteries, increasing to 3.6 kg with two batteries, supporting easy portability.

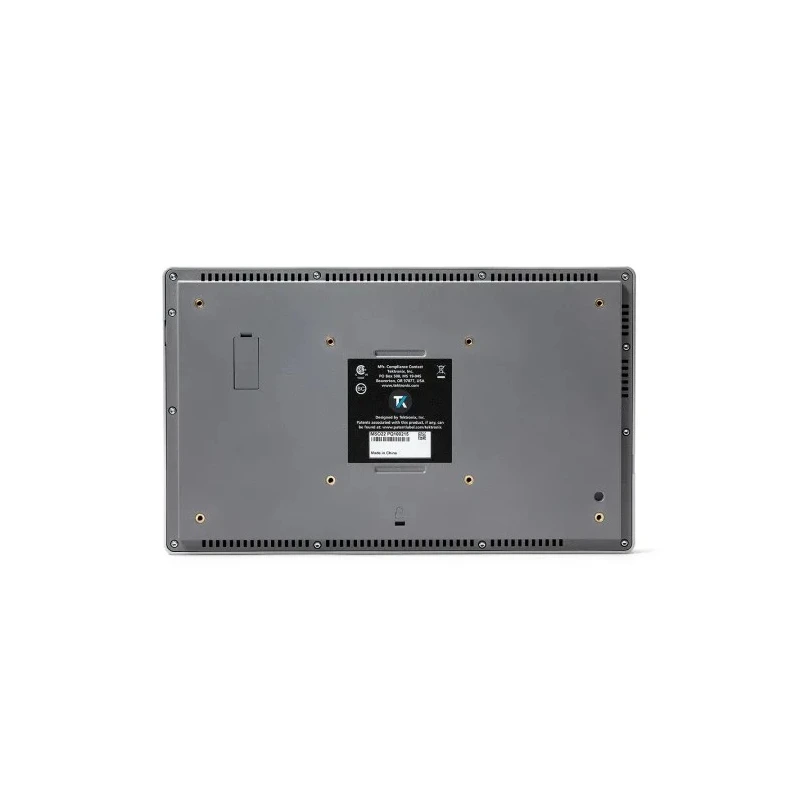

Other benefits include a VESA mount for bench space saving and compatibility with standard mounting accessories, an award-winning color touchscreen UI, digital channel support, built-in VNC server for remote operation, and optional advanced accessories such as additional digital channels, arbitrary function generators, and pattern generators.

The 10.1-inch capacitive touch display enhances user interaction through a simplified and responsive interface. Ultra compact and lightweight design facilitates easy bench placement and portable use in laboratory and field environments.

Wide interface compatibility supports various communication standards crucial for embedded system debugging and industrial testing. Optional battery pack provides power flexibility for remote and on-site measurements without reliance on mains power.

Calibrated to UKAS standards to ensure precise and reliable measurements for professional engineering and manufacturing quality control.

Tektronix oscilloscopes are designed to fit diverse industrial and laboratory testing requirements, including electronics manufacturing, embedded systems development, automotive electronics diagnostics, telecommunications, and education. The MSO22 2-BW-200 model balances performance, portability, and usability, making it an indispensable instrument for test and measurement professionals.
