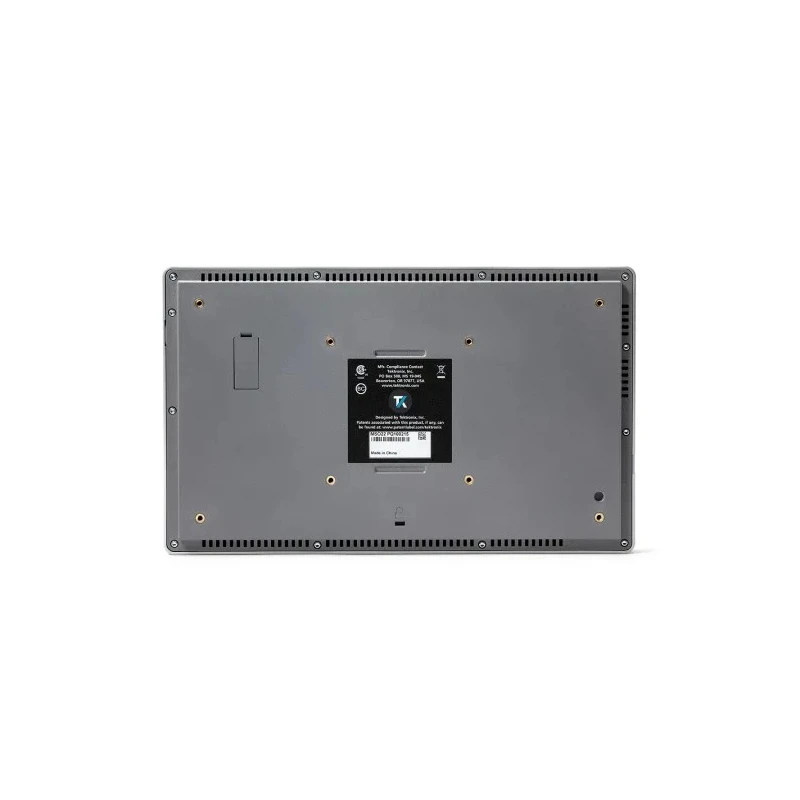

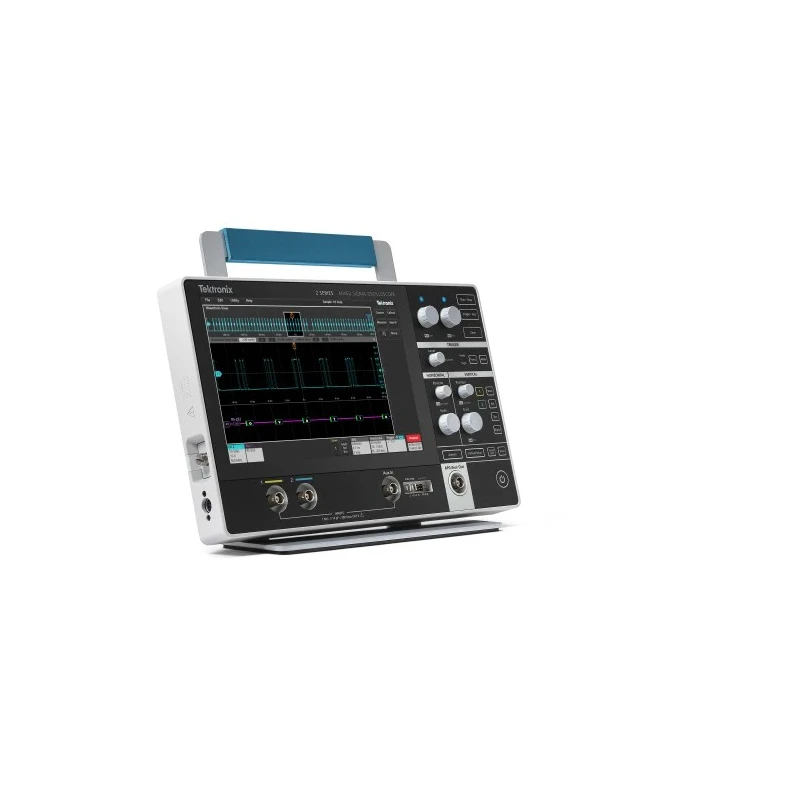

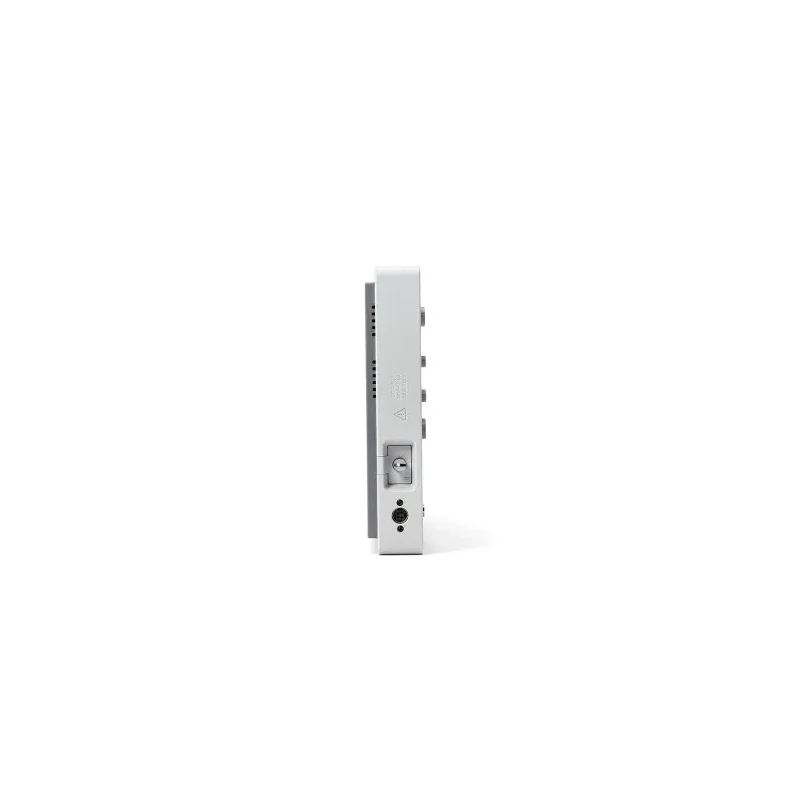

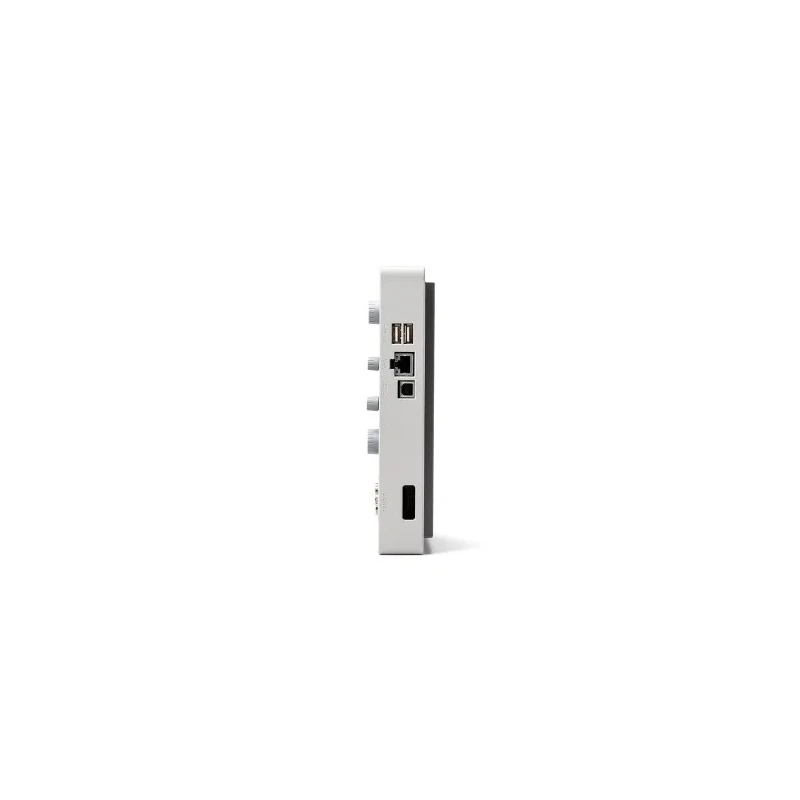

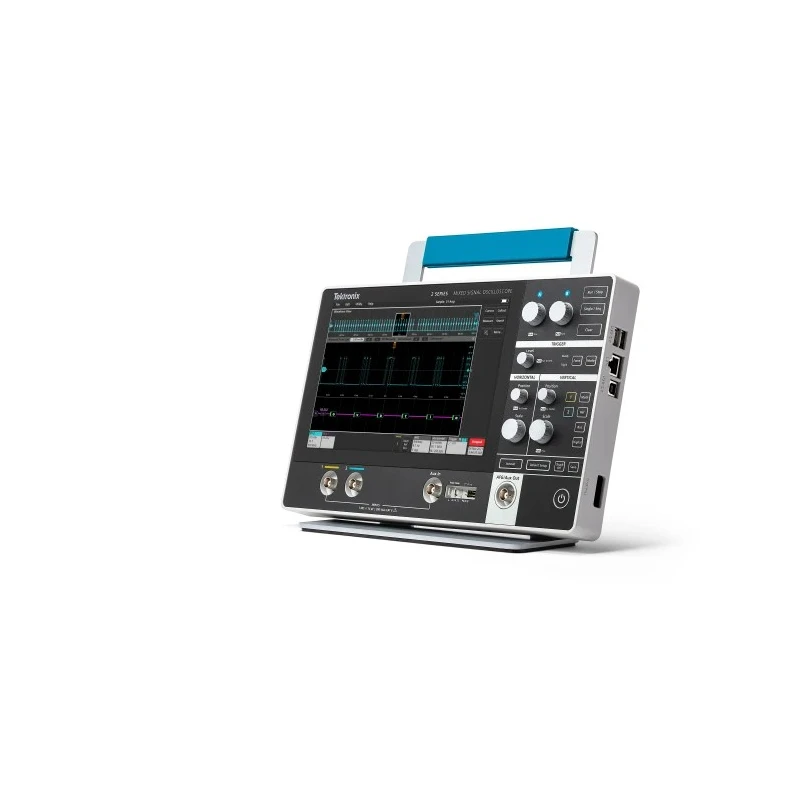

Tektronix Ultra Compact Mixed Signal Oscilloscope 2 Series MSO, 70 MHz Bandwidth, 2 Channels, 10.1 in MSO22 2-BW-70
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO22 2-BW-70 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 70MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 2 |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | RoHS, CE, UL |
| Safety Category Level | CAT II |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |

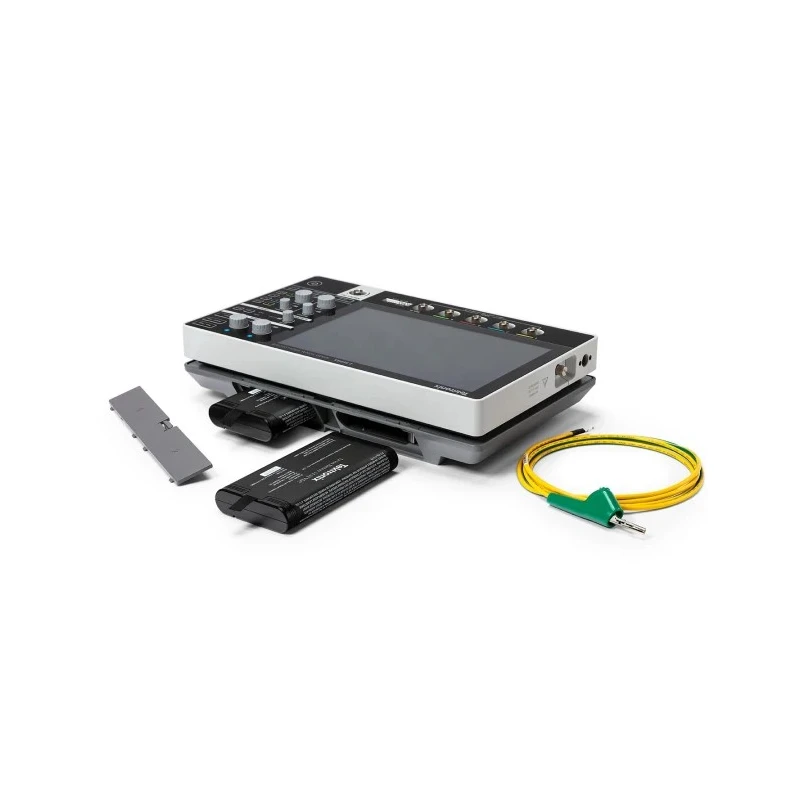

| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |

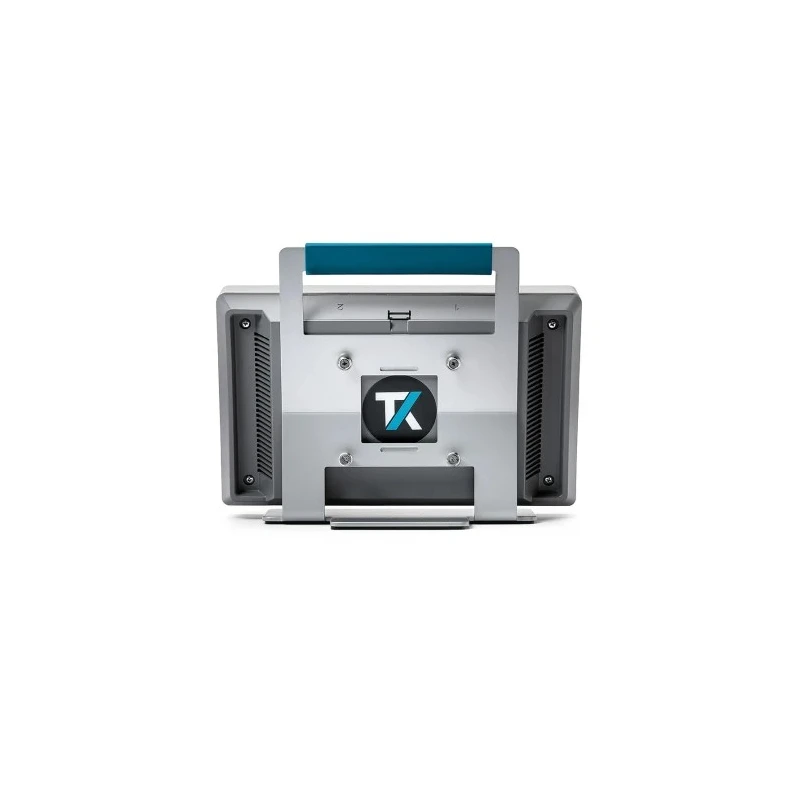

| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Compact form factor measuring 210mm height, 344mm width, and 40.4mm depth for easy bench placement.
- Supports multiple communication interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
- Includes lithium-ion battery with up to 8 hours of life for portable usage.
- Lightweight instrument weighing 1.8 kg, with optional battery pack increasing portability for field measurements.
- Equipped with an intuitive award-winning touchscreen user interface designed specifically for touch operation.
- Supports 16 digital channels, mixed signal form, and advanced triggering and protocol decode options.
- VESA mount compatible for flexible bench space savings and accessory integration.
- Includes probes, instrument stand, external power supply, calibration certificate, and user manual.
Product Description
Tektronix MSO22 2-BW-70 is an Ultra Compact Mixed Signal Oscilloscope from the 2 Series MSO family offering a bandwidth of 70 MHz with 2 input channels. It features a 10.1-inch capacitive touch display with digital and analogue vertical resolution of 1 bit and 8 bit respectively. The instrument combines portability and power with its compact design measuring 210mm height, 344mm width, and 40.4mm depth, and lightweight construction of 1.8 kg, making it suitable for laboratory, industrial, and field testing applications.
Battery powered with optional lithium-ion batteries offering up to 8 hours of operation, the MSO22 2-BW-70 supports diverse communication interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB for comprehensive protocol decode and mixed signal debugging.
The oscilloscope includes multiple features such as advanced triggers, 16 digital channels support, VESA mount compatibility for bench space optimization, and a built-in VNC server allowing remote control from PC, tablet, or phone.
Included accessories are TPP0200 200 MHz 10x probe (one per channel), instrument stand, external power supply, embedded help, installation and safety manual in multiple languages, and a calibration certificate ensuring traceability to national standards and ISO quality systems. The product meets RoHS, CE, and UL standards and is designed to provide reliable electronic debug and testing performance across industrial, laboratory, HVAC, electronics development, and manufacturing environments.
Compact size and lightweight for easy portability. Comprehensive interface types for diverse protocol handling. Capacitive touchscreen with intuitive user interface. Supports analog and digital signal analysis with 16 digital channels.
Battery operation capability for field and onsite testing. VESA mount compatibility for flexible installation. Remote control feature via built-in VNC server. Includes probe and all necessary accessories with quality certifications.
Tektronix 2 Series MSO Oscilloscopes combine performance, portability, and user-friendly operation to meet various technical and industrial testing needs. Discover the full range of Oscilloscopes and accessories in EnvMart's Measuring & Testing Instruments section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix MSO22 2-BW-70 has a bandwidth of 70 MHz.
This model supports 2 input channels and 16 digital channels.
It supports multiple communication interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
The oscilloscope measures 210 mm in height, 344 mm in width, and 40.4 mm in depth.
It features a 10.1-inch capacitive touch display.
Yes, it is lightweight at 1.8 kg and can be battery powered for portability.
Included accessories are a TPP0200 200 MHz 10x probe, instrument stand, external power supply, calibration certificate, and user manual.
It meets RoHS, CE, and UL standards.
Yes, it is VESA mount compatible for flexible installation and bench space optimization.
The vertical resolution is 1 bit for digital signals and 8 bits for analog signals.
Yes, it includes a built-in VNC server that allows remote control from a PC, tablet, or phone.
