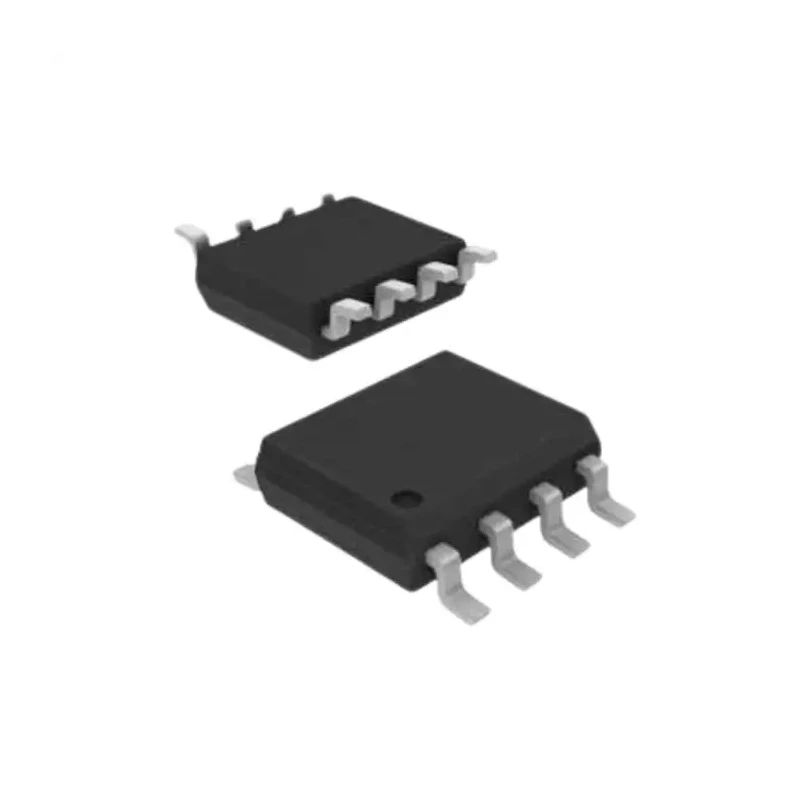

Nisshinbo Micro Devices Operational Amplifier Dual Channel 200 kHz Gain Bandwidth 32V DMP Package NJM2904M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2904M-TE1 |
| Mount Type | Surface |
| Series | NJM2904 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 32V |
| GBP - Gain Bandwidth Product | 200kHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 50 nA |
Key Features
- The amplifier operates over a voltage range of up to 32 volts.
- It features a low input offset voltage of 7 mV for precision applications.
- Designed to function under temperatures from -40°C to 85°C.
- Incorporates bipolar technology for stable performance.
- The device includes two independent high-gain internally frequency compensated op amps.
- Input bias current is minimal at 250 nA, enhancing signal accuracy.
- Slew rate is rated at 0.5 V/μs for efficient signal processing.
- Package type is DMP suitable for surface mount technology.
Product Description
Nisshinbo Micro Devices NJM2904M-TE1 is a dual operational amplifier featuring a gain bandwidth product of 200 kHz packaged in an 8-pin DMP surface mount package. It is engineered to operate from a single power supply voltage up to 32 V, making it versatile for various electronic applications.
This device incorporates two independent high-gain internally frequency compensated amplifiers built on bipolar technology to ensure stable operation and precision. The operational amplifier supports a wide operating temperature range from -40°C to 85°C, making it suitable for both industrial and commercial electronics environments.
The low input offset voltage of 7 mV and small input bias current of 250 nA contribute to high accuracy in signal amplification. With a slew rate of 0.5 V/μs, it effectively manages the speed of voltage changes, ensuring smooth signal transitions.
Its surface mount DMP package facilitates compact PCB design and reliable assembly. Though not designed for automotive standards, the NJM2904 series offers compliance with RoHS directives, aligning with environmental regulations.
This operational amplifier is applicable in industrial control, audio equipment, instrumentation, and other electronic systems requiring precise and stable amplification under varying environmental conditions.
The amplifier operates over a voltage range up to 32 V. Input offset voltage rated at 7 mV supports precision circuitry. Wide operating temperature range from -40°C to 85°C accommodates harsh environments. Dual independent high-gain op amps with frequency compensation.
Bipolar technology ensures linearity and stability. Low input bias current of 250 nA enhances signal fidelity. Slew rate of 0.5 V/μs for efficient response. Surface mount DMP 8-pin package for compact layouts. RoHS compliant for environmental safety.
Not intended for automotive applications. Explore the Electronics & Electricals categories on EnvMart for more Operational Amplifiers and semiconductor solutions tailored to your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 200 kHz.
The input offset voltage is rated at 7 mV, which supports precision applications.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
This model features two independent high-gain channels.
The maximum supply voltage is up to 32 V.
The input bias current is minimal at 250 nA, enhancing signal accuracy.
It is packaged in an 8-pin DMP surface mount package, suitable for compact PCB designs.
The slew rate is rated at 0.5 V/μs, allowing efficient signal processing.
Yes, it complies with RoHS directives, aligning with environmental regulations.
This operational amplifier incorporates bipolar technology for stable performance.
It is applicable in industrial control, audio equipment, instrumentation, and other electronic systems requiring precise amplification.
The input offset current is specified at 50 nA.
