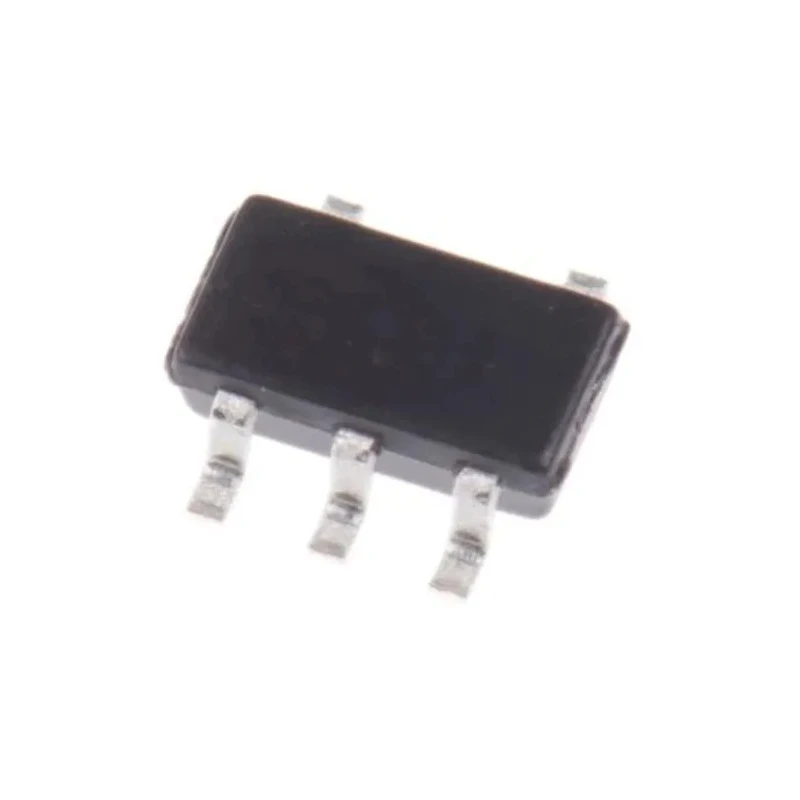

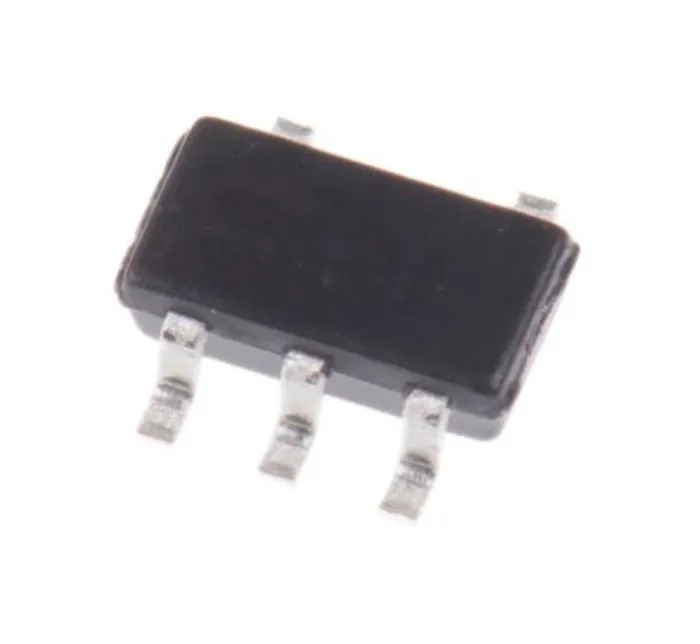

onsemi Operational Amplifier 2 MHz 5-Pin Surface Mount TSOP 4 to 36V NCV21911SN2T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.15mm |
| Model | NCV21911SN2T1G |
| Width | 1.65mm |
| Mount Type | Surface |
| Low Noise | 22 nV/√Hz typical |
| Series | NCV21911 |
| Output Current | 18mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Quiescent Current | 570 μA Max |
| Supply Voltage | 4 to 36V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 2MHz |
| Input Bias Current | 3500 pA |
| Slew Rate | 1.6V/μs |
| Gain-Bandwidth Product | 2 MHz typical |
| Low Offset Drift | 0.085 μV/°C max |
Key Features
- The device offers low input offset voltage of 25 μV maximum for precise amplification.
- It supports a wide operating temperature range from -40°C to 125°C.
- Low quiescent current of 570 μA maximizes power efficiency in applications.
- The output current capability is 18 mA, suitable for various load requirements.
- The amplifier includes automotive-grade AEC-Q100 qualification ensuring reliability in harsh environments.
- Low offset drift of 0.085 μV/°C improves accuracy over temperature variations.
- Rail-to-rail output swing ensures maximum dynamic range close to supply rails.
- Compact dimensions of 3.15 mm length, 1.65 mm width, and 1 mm height enable space-efficient PCB design.
Product Description
onsemi NCV21911SN2T1G is a high precision operational amplifier designed for use in demanding industrial and automotive applications. It provides a gain bandwidth product of 2 MHz and a wide supply voltage range from 4 V up to 36 V. The component is housed in a compact 5-pin TSOP surface mount package with dimensions of 3.15 mm by 1.65 mm by 1 mm, making it suitable for dense PCB layouts.
This amplifier offers exceptionally low input offset voltage (maximum 25 μV) and minimal offset drift (0.085 μV/°C), enabling stable and accurate signal amplification over a wide temperature range from -40°C to +125°C. Its low quiescent current of 570 μA ensures energy-efficient operation especially suitable for battery-powered and automotive applications.
The device features rail-to-rail output swing within 10 mV of the supply rails and an output current capability of 18 mA, providing versatility for driving various loads and interfacing with sensors and transducers.
The NCV21911SN2T1G meets AEC-Q100 automotive standards, supporting high reliability requirements integral in automotive, medical instrumentation, electronic scales, current sensing, and temperature monitoring systems.
The operational amplifier is suitable for electronic systems requiring low noise and precise analog signal conditioning. Surface mount TSOP package ensures ease of assembly and integration into compact designs. Typical applications include transducer interfaces, medical instrumentation, and automotive electronics.
Compliance with RoHS ensures adherence to environmental standards. Explore our comprehensive range of Operational Amplifiers for various industrial and electronic applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NCV21911SN2T1G is 2 MHz, providing suitable performance for various applications.
This operational amplifier supports a supply voltage range from 4 V to 36 V, allowing for flexibility in different circuit designs.
It has an output current capability of 18 mA, making it suitable for driving various loads.
The dimensions of the TSOP package are 3.15 mm in length, 1.65 mm in width, and 1 mm in height, enabling space-efficient PCB design.
It operates within a wide temperature range from -40°C to +125°C, making it suitable for demanding environments.
The quiescent current is a maximum of 570 μA, which helps maximize power efficiency in applications.
The NCV21911SN2T1G meets the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This operational amplifier has a maximum input offset voltage of 25 μV, which is critical for precise amplification.
It features a low offset drift of 0.085 μV/°C, improving accuracy over temperature variations.
The typical noise level is 22 nV/√Hz, which contributes to low noise performance in signal amplification applications.
This operational amplifier has a single channel, suitable for various signal conditioning tasks.
Yes, it is RoHS compliant, ensuring adherence to environmental standards in its manufacturing.
