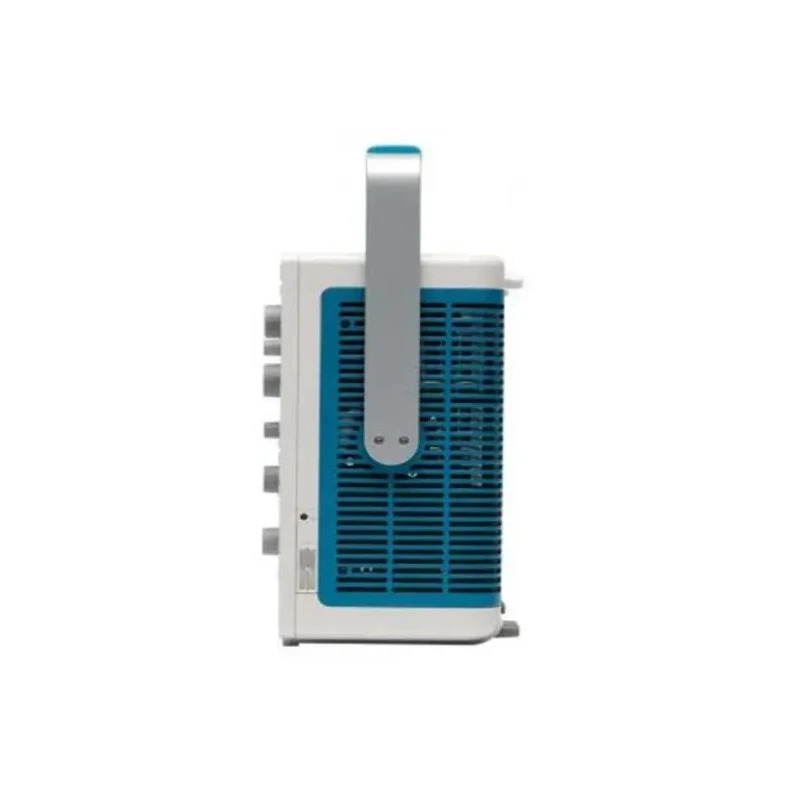

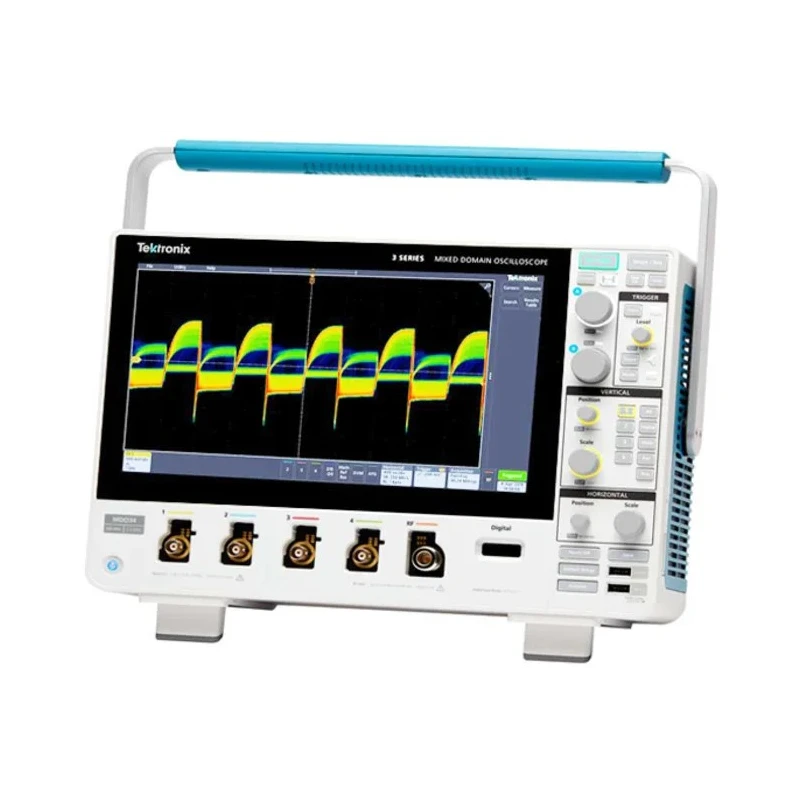

Tektronix 3 Series MDO Bench Mixed Domain Oscilloscope 16 Channels 100 MHz Bandwidth MDO34 3-BW-100

Tektronix MDO34 3-BW-100 is a high-performance 16-channel bench mixed domain oscilloscope offering 100 MHz bandwidth. It belongs to the 3 Series MDO family known for combining oscilloscope and spectrum analyser functions in a single instrument, ideal for electronics development, industrial testing, and repair applications.

This oscilloscope features an 11.6-inch high-definition capacitive touchscreen that supports pinch, tap, and swipe gestures for intuitive operation. A significant improvement in low-level signal measurement accuracy enhances data reliability up to 40% versus previous models, enabling detailed signal analysis.

Each analog channel supports sampling rates up to 5 GS/s, backed by a 10 Mpts memory depth for capturing complex waveforms. The unit includes more than 125 trigger combinations, offering flexible and precise triggering for various signal types and test conditions. Automated measurements facilitate quick assessment of signal parameters.

Integrated with a 1 GHz spectrum analyser, the oscilloscope supports comprehensive radio frequency (RF) measurements, making it suitable for wireless communication testing. Extensive interface options such as CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB provide broad compatibility with test setups and instruments.

Constructed with a TFT LCD touchscreen display, the instrument offers a user-friendly interface and clear visualization of measurement data. Its compact bench form factor, with dimensions 252 mm height, 148.6 mm width, and 148.6 mm depth, ensures a space-efficient setup.

Tektronix provides various accessories and probes to complement this model, enhancing testing flexibility for automotive, aerospace, security, power, and serial bus applications. The oscilloscope includes an 11.6-inch HD capacitive touchscreen for easy navigation.

Offers improved low-level signal measurement accuracy by up to 40 percent. Supports up to 5 GS/s sampling rate per analog channel for precise signal capture. Includes a built-in 1 GHz spectrum analyser for comprehensive RF testing.

Features more than 125 trigger combinations and multiple automated measurements. Supports a wide range of serial bus decode and trigger options. Equipped with a TFT LCD display and solid memory depth of 10 Mpts for data storage.

Interfaces include CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB for versatile connectivity. Designed for bench use with a mixed domain form factor built for industrial and laboratory environments. Manufactured in China with product dimensions of 252 mm height, 148.6 mm width, and 148.6 mm depth.

This oscilloscope is suitable for industrial, laboratory, telecommunications, RF testing, and advanced academic research use cases. Its mixed domain capability makes it excellent for signal analysis and EMI troubleshooting in the industrial and manufacturing sectors. Users can also extend the oscilloscope's performance with optional software and hardware upgrades for function generation, digital channels, and advanced analyses.
