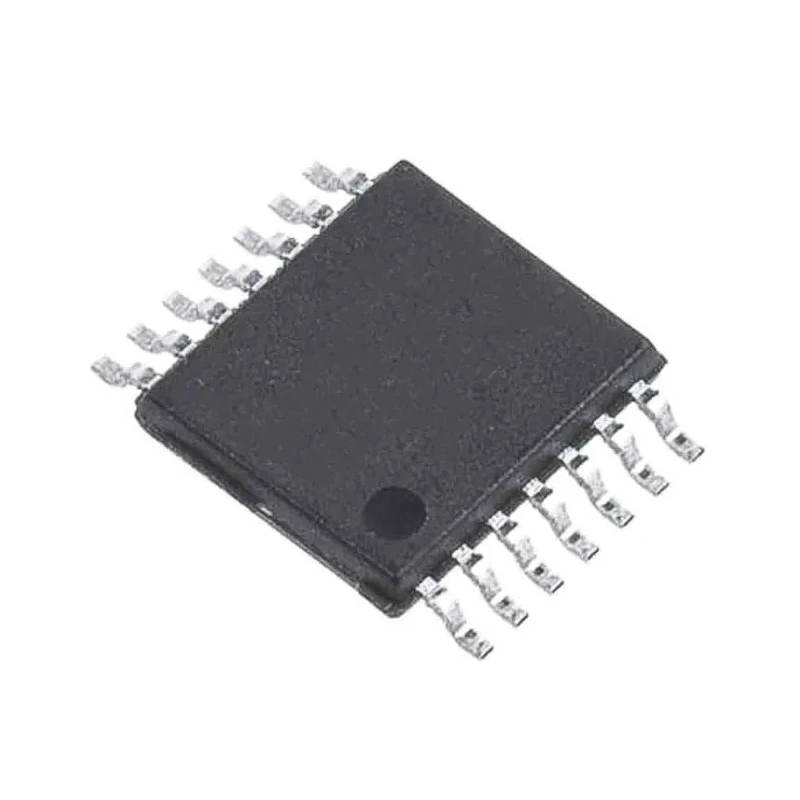

STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth, 14-Pin TSSOP Surface Mount LMV324IYPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | LMV324IYPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LMV321 |
| Output Current | 46mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 95 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.45V/μs |
| Input Offset Current | 25 nA |
Key Features
- Operating voltage range of 2.7 V to 6 V for flexible supply options.
- Low input bias current of 95 nA to optimize signal integrity.
- Rail-to-rail input and output to maximize dynamic range.
- Low power consumption at approximately 145 μA.
- Wide operating temperature range from -40°C to 125°C for robust application.
- Slew rate of 0.45 V/μs enabling responsive signal amplification.
- Compliance with RoHS standards ensuring environmental safety.
- Automotive grade AEC-Q100 qualification providing reliable performance in automotive environments.
Product Description
STMicroelectronics LMV324IYPT is a high-performance operational amplifier designed for general-purpose applications requiring low power consumption and rail-to-rail input and output capabilities. With a gain bandwidth product of 1.3 MHz, it effectively balances speed and efficiency for a wide range of signal amplification tasks.
This device operates within a supply voltage range of 2.7 V to 6 V, making it compatible with various battery-powered and portable equipment designs. The low input bias current of 95 nA enhances its suitability for precision analog circuits.
The LMV324IYPT comes in a 14-pin TSSOP surface mount package that supports integration into compact PCB layouts. Its operational temperature range from -40°C to 125°C along with automotive-grade AEC-Q100 standard ensures reliable operation in harsh industrial, automotive, and consumer electronics environments.
Key features include a slew rate of 0.45 V/μs, output current of up to 46 mA, and compliance with RoHS directives supporting eco-friendly manufacturing. Operating voltage range of 2.7 V to 6 V. Low input bias current of 95 nA for precision applications.
Rail-to-rail input and output for maximum signal swing. Low power consumption at 145 μA. Wide temperature tolerance from -40°C to 125°C. Compact 14-pin TSSOP package dimensions. Automotive AEC-Q100 qualification for demanding environments.
Slew rate of 0.45 V/μs enabling signal integrity. Compliance with RoHS standards.
This Operational Amplifier is ideal for use in industrial instrumentation, automotive electronics, consumer devices, and general analog signal processing tasks. It is a robust choice for engineers designing circuits that require reliable, low-noise amplification with compact form factor.
Explore more electronic components and amplifiers at EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.3 MHz, balancing speed and efficiency for various signal amplification tasks.
It operates within a supply voltage range of 2.7 V to 6 V, making it suitable for various battery-powered and portable equipment designs.
The input bias current is 95 nA, which enhances its suitability for precision analog circuits.
This model can provide an output current of up to 46 mA, allowing it to drive various loads effectively.
It has a wide operating temperature range from -40°C to 125°C, ensuring reliable performance in diverse environments.
This operational amplifier is housed in a 14-pin TSSOP surface mount package, supporting compact PCB layouts.
The slew rate is 0.45 V/μs, enabling responsive signal amplification for various applications.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing practices.
It is qualified under the automotive AEC-Q100 standard, providing reliable performance in automotive environments.
This model features four channels, making it versatile for various applications requiring multiple signal paths.
The input offset voltage is 6 mV, which is an important specification for precision applications.
The height of this operational amplifier is 1.05 mm, contributing to its compact form factor.
