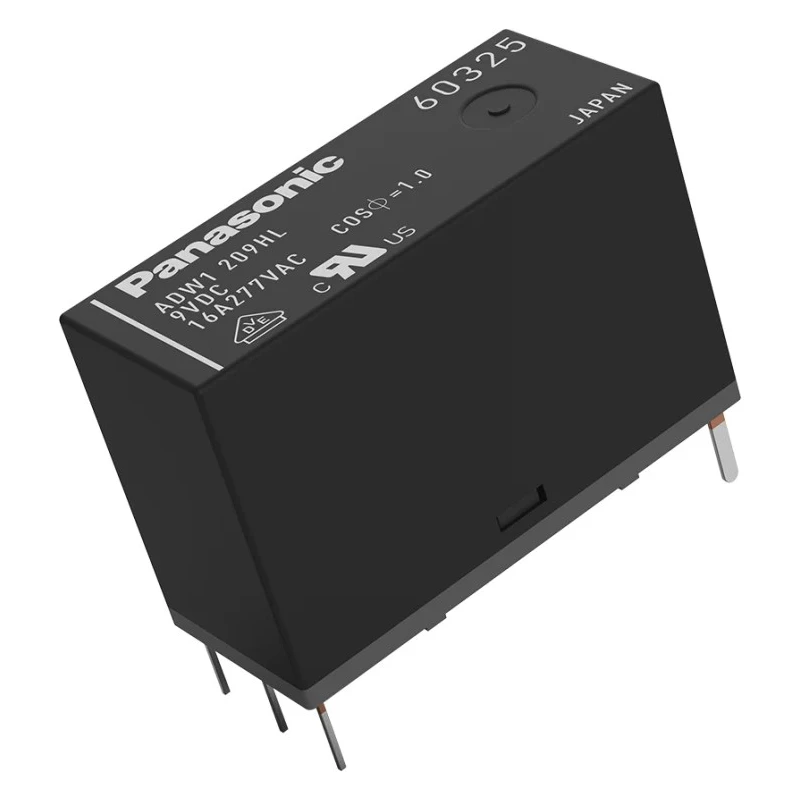

Panasonic Power Relay PCB Mount SPST 3V DC Coil 16A Switching Current ADW1103HLW
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 15.8mm |
| Length | 24mm |
| Model | ADW1103HLW |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ADW1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, TV-8, UL, VDE, CSA, cUL, PTI 325V |
| Coil Resistance | 45Ω |
| Coil Voltage | 3V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- The relay is designed for compact PCB mounting applications with a length of 24mm and width of 10mm.
- Operates reliably at temperatures ranging from -40°C to 70°C.
- Contact material is silver alloy ensuring durable electrical contact performance.
- The coil resistance of 45Ω and coil power of 200mW allow efficient energy use.
- Supports switching AC voltage up to 277V AC and switching power of 4.4 kVA.
- Contact resistance is maintained low at 100mΩ for stable switching.
- Robust operation suitable for appliance, industrial, and lighting control applications.
- Highly reliable and capable of operating under stressful conditions with strong switching capacity.
Product Description
Panasonic ADW1103HLW power relay is a compact PCB mount relay designed for high capacity switching applications, featuring a 3V DC coil voltage and 16A switching current with SPST contact configuration. Its dimensions of 24mm length, 10mm width, and 15.8mm height make it suitable for space-constrained PCB assemblies.
This relay supports operation over a wide temperature range from -40°C to a maximum of 70°C, ensuring reliable performance even under demanding environmental conditions. The silver alloy contact material offers durability and low contact resistance of 100mΩ, essential for stable electrical connections.
With a coil resistance of 45Ω and coil power of 200mW, the ADW1103HLW relay efficiently drives the coil using minimal power while delivering switching power capability of 4.4 kVA and switching AC voltage up to 277V AC.
Its robust design makes it suitable for industrial, appliance, lighting control, and energy management applications. Typical uses include integration into smart meters, power supplies, refrigerators, and washing machines where high reliability and compact size are critical.
The relay is designed for compact PCB mounting applications with a length of 24mm and width of 10mm. Operates reliably at temperatures ranging from -40°C to 70°C. Contact material is silver alloy ensuring durable electrical contact performance.
The coil resistance of 45Ω and coil power of 200mW allow efficient energy use. Supports switching AC voltage up to 277V AC and switching power of 4.4 kVA. Contact resistance is maintained low at 100mΩ for stable switching.
Robust operation suitable for appliance, industrial, and lighting control applications. Highly reliable and capable of operating under stressful conditions with strong switching capacity. Ideal for applications including smart meters, power supplies, refrigerators, and washing machines.
Manufactured in Thailand adhering to multiple safety and quality standards including UL, VDE, CSA, and cUL.
Explore EnvMart’s extensive electronics & electricals category for a diverse range of relays and contactors from top brands including Panasonic to enhance your industrial and laboratory projects.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 16A.
This model operates with a coil voltage of 3V DC.
The relay has dimensions of 24mm in length, 10mm in width, and 15.8mm in height.
The maximum operating temperature for this relay is 70°C.
It features a Single Pole Single Throw (SPST) contact configuration.
The contact resistance is maintained at 100mΩ for stable switching.
This relay supports a switching AC voltage of up to 277V AC.
The coil resistance is 45Ω.
The relay has a coil power rating of 200mW.
The contact material is silver alloy, ensuring durable electrical contact performance.
It is manufactured in compliance with multiple safety and quality standards including cULus, UL, VDE, and CSA.
This relay is suitable for applications including smart meters, power supplies, refrigerators, and washing machines.
