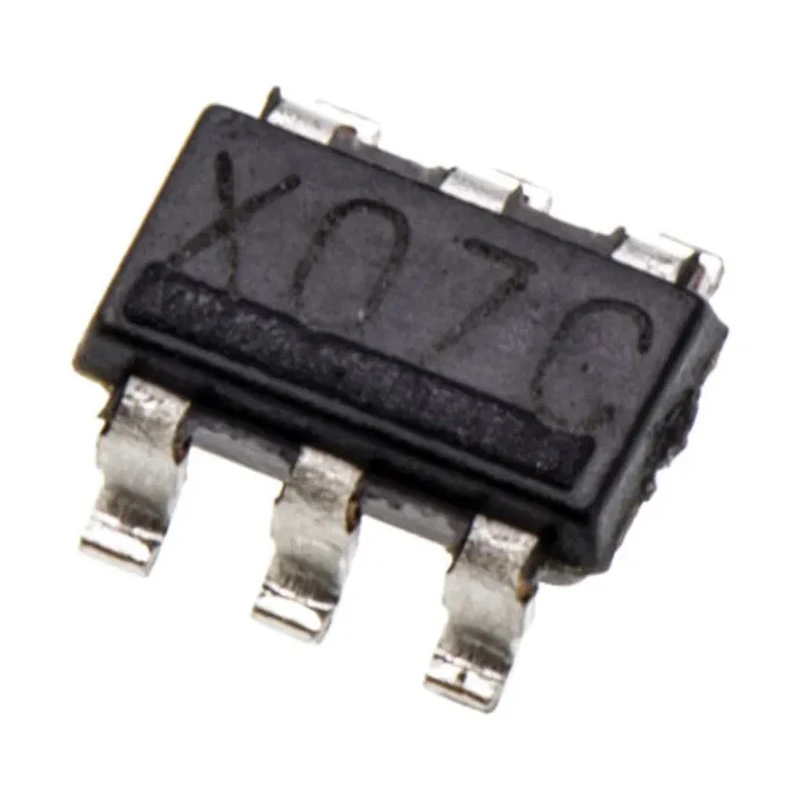

Texas Instruments DC/DC Converter Surface Mount 7V Output Voltage 2A Output Current 45W Power TPS563200DDCT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments DC/DC Converter, Surface, 7V |
| Brand | Texas Instruments |
| Power | 45W |
| Efficiency | 88% |
| Length | 3.05mm |
| Model | TPS563200DDCT |
| Depth | 1.5mm |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TPS563200 |
| Output Current | 2A |
| Package Type | SOT-23 |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 1 |
| Ripple and Noise | 1% |
| Maximum Input Voltage | 17V |
| Line Regulation | 0.04 %/V |
| Standards/Approvals | REACH, ANSI, RoHS, ESDA, JEDEC |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 7V |
| Output Voltage 2 | 12.6V |
Key Features
- Operates with an input voltage range of 4.5V to 17V.
- High efficiency of 88% minimizes power loss during operation.
- Compact surface mount package type SOT-23 with 6 pins ensures easy PCB integration.
- Low ripple and noise of 1% provide stable output voltage performance.
- Line regulation rated at 0.04% per Volt enhances output voltage stability.
- Wide operating temperature range at 85°C supports stable operation in demanding environments.
- Includes industry approvals and compliance with standards such as REACH, ANSI, RoHS, ESDA, and JEDEC.
- Designed as a step-down (buck) DC/DC switching regulator for voltage conversion efficiency.
Product Description
Texas Instruments TPS563200DDCT is a highly integrated step-down DC/DC converter designed for surface mount applications. It provides a regulated 7V output voltage with a maximum output current of 2A, delivering 45W of power and achieving an efficiency of 88%. This device supports input voltages ranging from 4.5V to 17V, making it suitable for a wide variety of electronic power supply designs.
The compact SOT-23 package with 6 pins facilitates easy mounting on printed circuit boards, particularly in space-constrained electronics. With a low ripple and noise level of 1%, and excellent line regulation of 0.04% per volt, the converter assures high-quality stable voltage outputs. It includes protection and compliance features aligned with REACH, ANSI, RoHS, ESDA, and JEDEC standards, ensuring reliability and environmental safety.
Its operating temperature rating up to 85°C supports usage in industrial and commercial electronic equipment applications, including power supplies, embedded electronics, communications devices, and instrumentation. The physical dimensions of 3.05mm length, 1.75mm width, and 1.5mm depth allow for compact system integration.
Designed by Texas Instruments, the TPS563200DDCT fits applications requiring efficient step-down voltage regulation, particularly in manufacturing, automation, industrial controls, and consumer electronics development. Its surface mount design is ideal for modern PCB assembly processes.
Operates from 4.5V to 17V input voltage range. Output current rating at 2A and power at 45W. Compact 6-pin SOT-23 surface mount package. Low ripple noise and precise line regulation. High efficiency of 88% ensures reliable power conversion.
Compliance with multiple industrial and environmental standards. Stable operation up to 85°C ambient temperature. Compact dimensions facilitate dense PCB layouts. Suitable for industrial, commercial, and embedded electronics applications.
Explore additional Texas Instruments DC/DC Converters and other voltage regulation solutions within the Electronics & Electricals category at EnvMart for diverse power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 7V with a maximum output current of 2A, delivering a total power of 45W.
It operates with an input voltage range of 4.5V to 17V, making it suitable for various electronic power supply designs.
This unit achieves an efficiency of 88%, which minimizes power loss during operation.
The ripple and noise level is low at 1%, ensuring stable output voltage performance.
The physical dimensions are 3.05mm in length, 1.75mm in width, and 1.5mm in depth, allowing for compact system integration.
It features a surface mount design, specifically in a SOT-23 package type with 6 pins, facilitating easy PCB integration.
The line regulation is rated at 0.04% per volt, which enhances output voltage stability.
This model supports stable operation at ambient temperatures up to 85°C, suitable for demanding environments.
It includes compliance with standards such as REACH, ANSI, RoHS, ESDA, and JEDEC, ensuring reliability and environmental safety.
This unit provides one output, designed for efficient step-down voltage regulation.
It is designed for use in industrial, commercial, and embedded electronics applications, including power supplies and communications devices.
The power rating of this DC/DC converter is 45W, allowing it to efficiently handle various electronic power supply needs.
