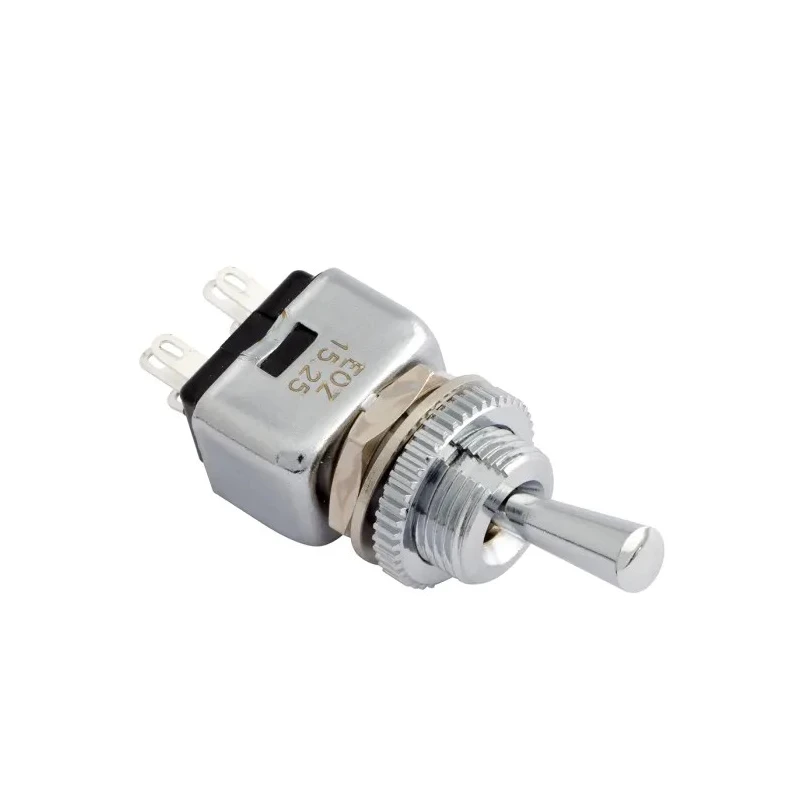

EOZ Toggle Switch Panel Mount On-On DPDT Solder Terminal 48V DC 220V AC 02.17013.21

EOZ 02.17013.21 Toggle Switch is a robust panel mount switch featuring On-On DPDT operation with solder terminals designed to handle both 48 V DC and 220 V AC electrical loads. It is engineered for demanding industrial and commercial applications requiring durable and reliable switching solutions.

This switch provides a double pole double throw contact configuration, enabling the control of two separate circuits with the On-On switch operation function, ideal for complex electrical control systems.

The physical design includes a chrome plated brass actuator measuring 10.9 mm length, offering tactile precision and enhanced mechanical durability with a life expectancy of 100000 operations.

Its electrical ratings allow it to safely conduct a switch contact current of 4.5A, with capability for 220V AC and 48V DC voltage use, covering a broad range of electrical parameters. The IP ratings IP65 and IP67 provide exceptional protection against dust ingress and water immersion, suitable for indoor and outdoor panel installations.

Operating temperature tolerance ranges from -40°C minimum to 85°C maximum, making it reliable under diverse environmental conditions. The panel cutout dimension of 10.2 mm ensures straightforward and secure mounting into control panels.

This product fully complies with IEC 60512-4 and RoHS standards, emphasizing safety, performance, and environmental responsibility. It is part of the DJET series, a well-regarded line of miniature switches known for their quick-breaking On-On single-pole changeover switch function and excellent resistance to vibrations, shocks, and jarring impacts.

Manufactured in France, this toggle switch is suited for applications across industrial automation, electrical panels, and control gear, ensuring stable contact resistance and reliable operation in critical systems.

Key applications include industrial automation control, electrical circuit switching, vibration-prone environments, and machinery interfaces requiring reliable, sealed switches. This panel mount toggle switch features a double pole double throw (DPDT) contact configuration for versatile circuit control.

The switch operation is On-On, suitable for applications requiring dual on positions. It supports a switch contact current of 4.5A with contact AC voltage of 220V and DC voltage of 48V. Designed with solder terminal type and high IP ratings IP65 and IP67 for dust and water resistance.

The chrome plated brass actuator of 10.9 mm length ensures durability and reliable mechanical life of 100000 operations. Operating temperature range from -40°C to 85°C makes it suitable for extreme environments. The panel cutout size is 10.2 mm for precise and secure mounting.

Conforms to IEC 60512-4 and RoHS standards, ensuring safety and environmental compliance. Product is manufactured in France as part of the DJET series known for quality and reliability. Explore more EOZ Toggle Switch products and other reliable switches at EnvMart for your industrial, electrical, and automation requirements.
