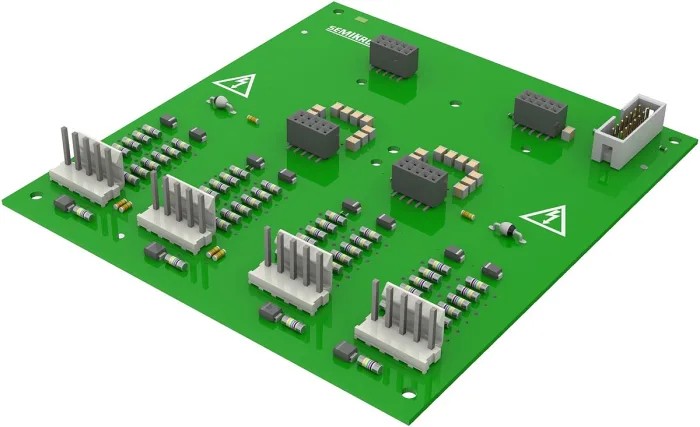

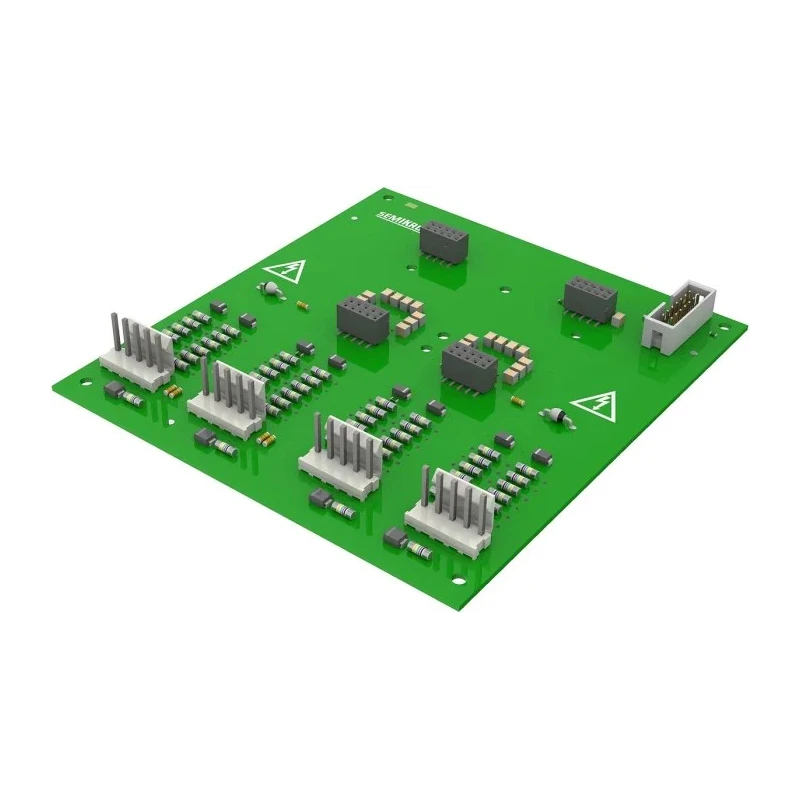

Semikron Danfoss Evaluation Board Adaptor for SKYPER 42 R IGBT Drivers, Collector-Emitter Board 2 generic SKYPER 42 R
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Semikron Danfoss |
| Model | Board 2 generic SKYPER 42 R |
| Collector-Emitter Voltage | 1700 V |
Key Features
- The adaptor board accommodates one or two IGBT modules in parallel for flexible industrial usage.
- It enables customization for SEMITRANS™ Low inductance and SEMiX® solder pin IGBT packages.
- User-adjustable gate resistors allow tuning of IGBT switching speeds.
- Features dynamic short circuit protection with adjustable monitoring level and blanking time.
- Includes two output channels configurable in single or dual mode for versatile circuit design.
- Supports half-bridge switching circuits enhancing power management applications.
- Manufactured in Germany with high-quality industrial standards.
Product Description
Semikron Danfoss Board 2 generic SKYPER 42 R is an advanced evaluation board adaptor developed for use with SKYPER IGBT drivers, such as model RS 905-6175. Engineered for industrial power management applications, this board supports collector-emitter voltages up to 1700V and peak output currents of 30A, making it suitable for demanding half-bridge switching circuits.

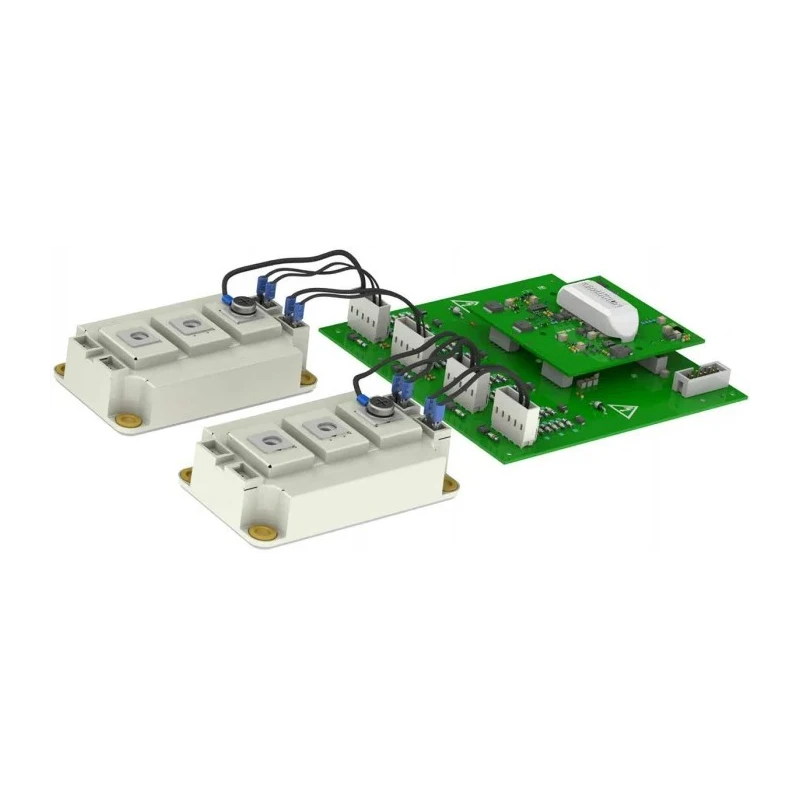

This adaptor is compatible with a single IGBT module or dual parallel configurations, enabling enhanced current handling and flexibility. It supports SEMITRANS™ low inductance and SEMiX® flat solder pin packages, allowing customization to specific IGBT modules for optimized performance.
Users can fine-tune the switching characteristics by adjusting the gate resistors, controlling the turn-on and turn-off speeds of the IGBT devices. Additionally, the board offers dynamic short circuit protection (DSCP) with user-configurable monitoring levels and blanking times, improving safety and reliability during operation.
The evaluation board includes two output channels configurable in single or dual mode to adapt to various industrial circuit designs. It is designed and manufactured in Germany, adhering to stringent quality and industrial standards.
Adaptor board for SKYPER IGBT drivers supporting 1700V collector-emitter voltage. Peak output current rating of 30A suitable for half-bridge circuits. Customizable for SEMITRANS™ Low inductance and SEMiX® flat packages. User-adjustable gate resistors to optimize switching speed.
Dynamic short circuit protection with adjustable parameters. Two output channels configurable for flexible use. Manufactured in Germany for industrial reliability.
This Evaluation Board is ideal for industrial automation, power electronics development, manufacturing testing, and other heavy-duty applications requiring precise IGBT driver management. It integrates seamlessly into power management IC configurations and is suitable for laboratories, manufacturing environments, and advanced industrial setups.
Explore more power management and gate driver components from leading manufacturers to enhance your system design and achieve robust performance with Semikron Danfoss products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board supports collector-emitter voltages up to 1700V, making it suitable for high-voltage applications.
This model has a peak output current rating of 30A, which is suitable for demanding half-bridge switching circuits.
Yes, the adaptor board can accommodate one or two IGBT modules in parallel, providing flexibility for industrial usage.
It is compatible with SEMITRANS™ low inductance and SEMiX® flat solder pin packages, allowing customization for specific IGBT modules.
Users can fine-tune the switching characteristics by adjusting the user-adjustable gate resistors, which control the turn-on and turn-off speeds of the IGBT devices.
The board includes dynamic short circuit protection (DSCP) with user-configurable monitoring levels and blanking times to improve safety during operation.
This model includes two output channels that can be configured in single or dual mode for versatile circuit design.
It is ideal for industrial automation, power electronics development, manufacturing testing, and other heavy-duty applications requiring precise IGBT driver management.
This evaluation board is manufactured in Germany, adhering to high-quality industrial standards.
The primary use of this board is in power management applications, particularly for half-bridge switching circuits.
The model name is Board 2 generic SKYPER 42 R, designed for use with SKYPER IGBT drivers.
Key features include support for high collector-emitter voltage, peak output current capability, user-adjustable gate resistors, and dynamic short circuit protection.
